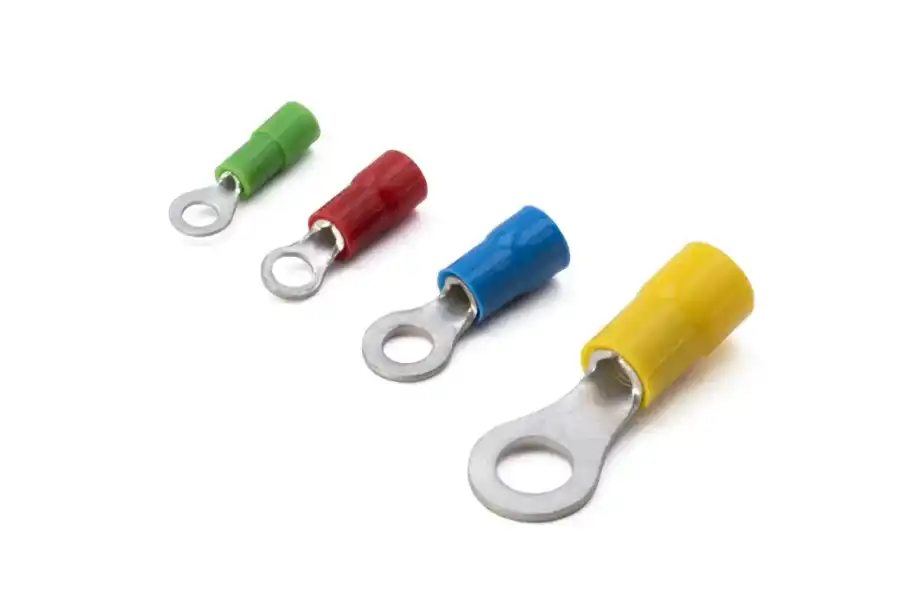

BP-M3 - 1,5-2,5 mm² kablolar için halka tip terminal (halojen free) - 1

BP-M3 - 1,5-2,5 mm² kablolar için halka tip terminal (halojen free)

Ürün Kodu : BP-M3
%50
indirim
18,08 TL
9,04 ₺ / 0,19 € + KDV
3 ay içinde kargoda
kargo bedava
güvenli alışveriş
vade farksız taksit
ücretsiz iade
Açıklamalar
Main
Minimum operating temperature -20   °C
Maximum operating temperature 115   °C
Threshold of operating temperature for short periods 130   °C
Bend angle of the connection 0   °
Number of holes on the palm 1
Markings found factory mark
Typology single
Type of insulation partial
Easy insertion input Yes
Self-extinguishing fire class according to UL 94 V0
Conductor body material Rame elettrolitico con purezza superiore al 99,95%
Minimum thickness of the surface coating of the conducting body 3   µm
Surface treatment of the conductor body tin plating
Insulated cover material Polycarbonate PC10500AC
Annealing Yes
Internal surface of the barrel knurled
Halogen free Yes
Centre distance between holes 0   mm
Type of packaging ; box
Unit in minimal packaging 100   PCE
Unit in standard packaging 100   PCE
Electrocode 3681
ETIM Class 7 Solderless copper terminals for copper conductors [EC001052]
Customs code 85369010
ROHS compliant Yes
