HDB3VR240SC - Kaçak Akım Rölesi 6kA 30mA 40 A 1P+N - 1

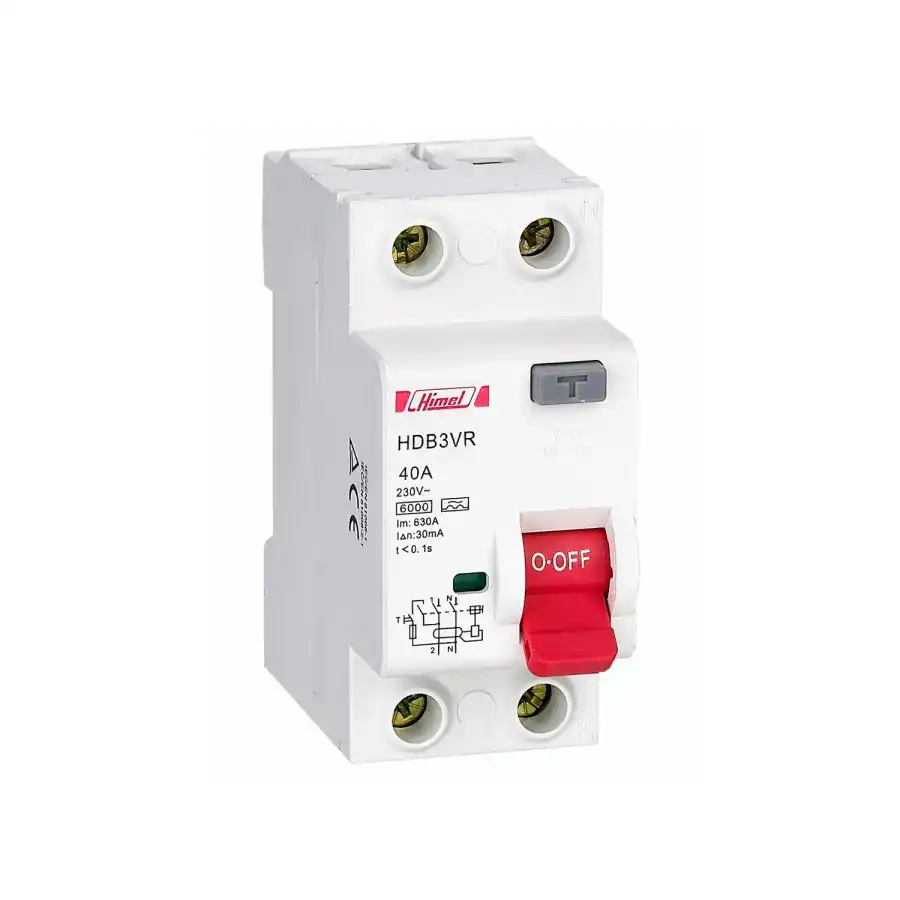

HDB3VR240SC - Kaçak Akım Rölesi 6kA 30mA 40 A 1P+N

Ürün Kodu : HDB3VR240SC
%62
indirim
1.099,00 TL
417,62 ₺ / 417,62 TL + KDV
3 ay içinde kargoda
kargo bedava
güvenli alışveriş
vade farksız taksit
ücretsiz iade
Açıklamalar
Main
Range of product HDB3VR
Product or component type Residual current circuit breaker (RCCB)
Poles description 2P
Earth-leakage protection class Class AC
[In] rated current 40.0 A
Earth-leakage sensitivity 30.0 mA
Frame size 63AF
[Ue] rated operational voltage 230 V AC
[Ui] rated insulation voltage 500 V
Mechanical durability 2000 cycles
Electrical durability 1000 cycles
Protection type Earth-leakage protection direct contact
Local signalling Mechanical indicator for fault
Mounting support 35 mm DIN rail
9 mm pitches 4
Clamping connection capacity <= 25 mm²
Tightening torque 2…4.5 N.m
Height 78.5 mm
Width 36.0 mm
Depth 70.0 mm
Embedding depth 43.5 mm
E-commerce address Residual-current-switch-hdb3vr-ac-type
Environmental characteristic Fire retardant
Tropicalisation 2
Pollution degree 2
Ambient air temperature for operation -25…40 °C
Standards EN/IEC 61008-1
Product certifications TÜVCECB
