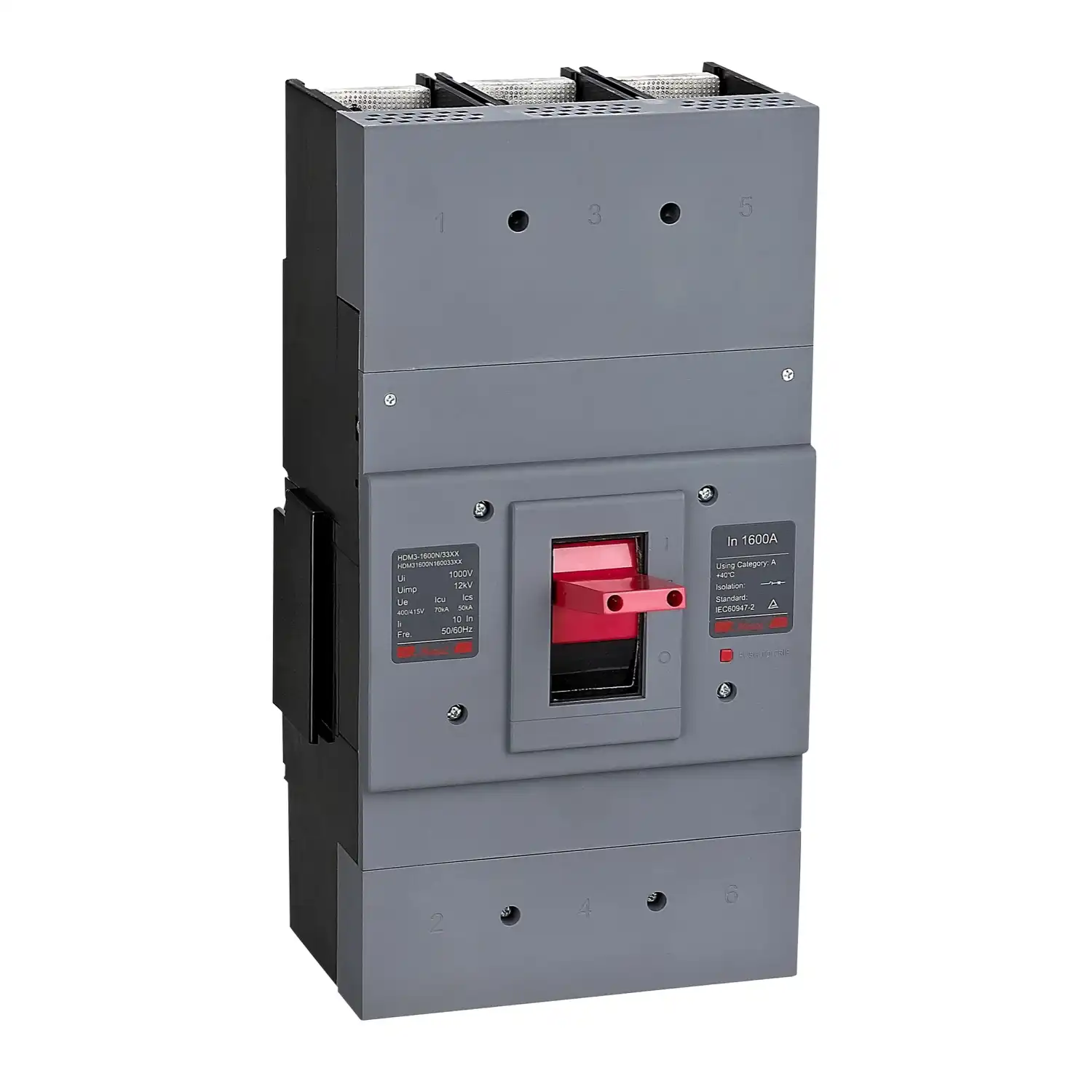

HDM31600N125033XX - molded case circuit breaker HDM3 - 1600N/3P - Mag-therm 1250A - 1
HDM31600N125033XX - molded case circuit breaker HDM3 - 1600N/3P - Mag-therm 1250A - 2
HDM31600N125033XX - molded case circuit breaker HDM3 - 1600N/3P - Mag-therm 1250A - 3
HDM31600N125033XX - molded case circuit breaker HDM3 - 1600N/3P - Mag-therm 1250A - 4

HDM31600N125033XX - molded case circuit breaker HDM3 - 1600N/3P - Mag-therm 1250A

Ürün Kodu : HDM31600N125033XX
25.004,00 ₺ / 25.004,00 TL + KDV
 tarihine kadar kargoda
kargo bedava
güvenli alışveriş
vade farksız taksit
ücretsiz iade
Açıklamalar
Main
Range of product HDM3
Product or component type Enclosed moulded case circuit breaker
Suitability for isolation Yes
Trip unit technology Thermal-magnetic
Device application Power distribution protection
Voltage release type Shunt trip releaseUndervoltage release
Provided equipment alarmmotor mechanismhandleterminal extensioninterphase barriersMN or MX voltage release
Poles description 3P
[In] rated current 1250 A
Frame size 1600AF
[Ue] rated operational voltage 400 V
Network type AC
Network frequency 50...60 Hz
Electrical durability 2500 cycles
Mechanical durability 5000 cycles
[Uimp] rated impulse withstand voltage 12 kV
[Ics] rated service breaking capacity 70 kA
Rated breaking capacity 70 kA
[Ui] rated insulation voltage 1000 V
Mounting mode Fixed front
Clamping connection capacity 2 x 240 mm²
Tightening torque 11…14 N.m
Utilisation category Category A
Provision for padlocking Handle padlockable in on and off position
Height 408 mm
Width 223 mm
Depth 213 mm
Net weight 18.98 kg
IP degree of protection IP20
Pollution degree 3
Ambient air temperature for operation 40.0 °C
Ambient air temperature for storage -20…70 °C
Dielectric test voltage 3 kV
Operating altitude 0...2000 m
Standards IEC 60947-2
Unit Type of Package 1 PCE
Number of Units in Package 1 1
