HDM3E800M800C3XX - Molded case circuit breaker, HDM3E, 800M, 4P, electronic, C 800 A, 40 C - 1
HDM3E800M800C3XX - Molded case circuit breaker, HDM3E, 800M, 4P, electronic, C 800 A, 40 C - 2

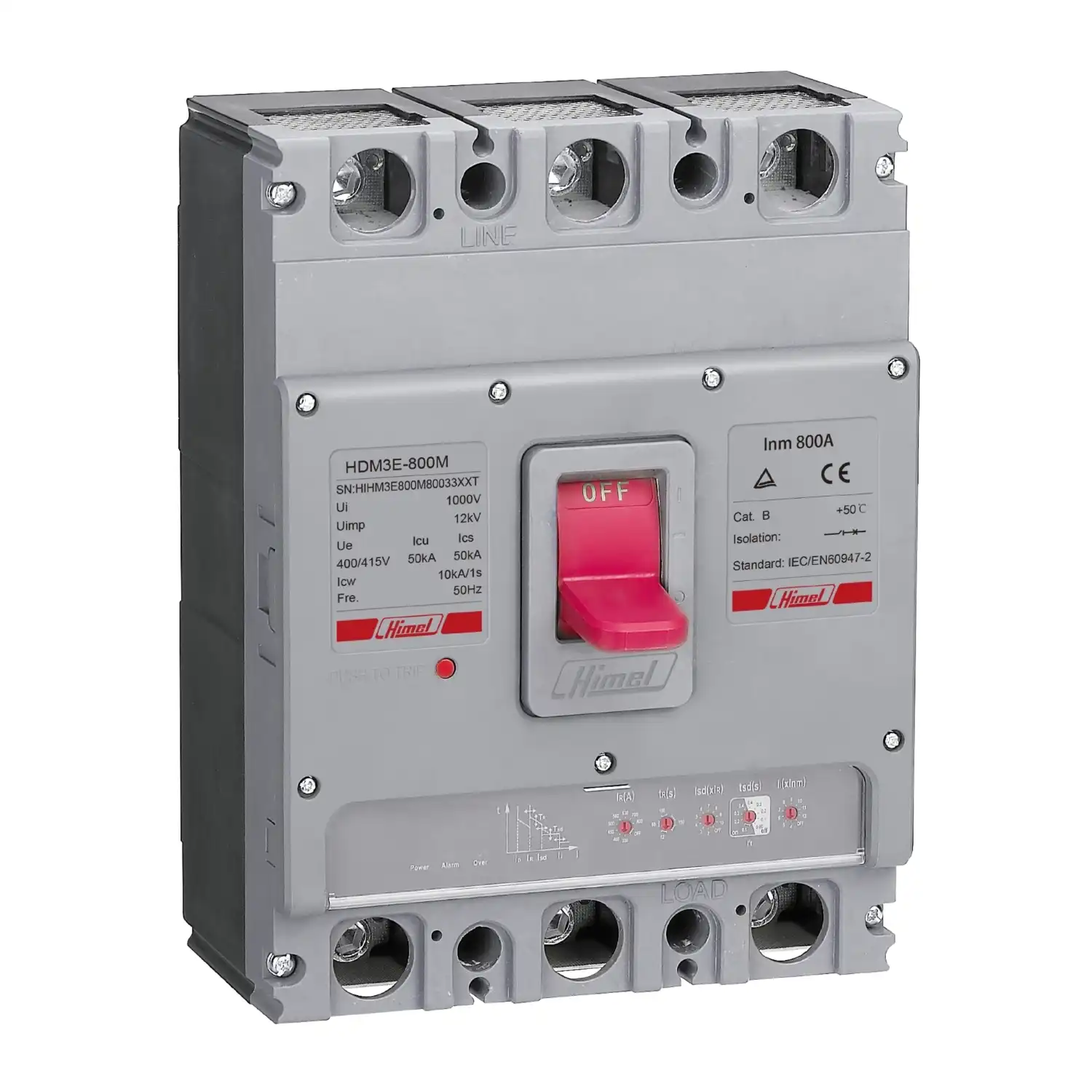

HDM3E800M800C3XX - Molded case circuit breaker, HDM3E, 800M, 4P, electronic, C 800 A, 40 C

Ürün Kodu : HDM3E800M800C3XX
%62
indirim
44.090,00 TL
16.754,20 ₺ / 16.754,20 TL + KDV
3 ay içinde kargoda
kargo bedava
güvenli alışveriş
vade farksız taksit
ücretsiz iade
Açıklamalar
Main
Range of product HDM3E
Product or component type Enclosed moulded case circuit breaker
Poles description 4P
[In] rated current 800 A
Trip unit technology Electronic
[Ue] rated operational voltage 400/415 V
Network type AC
Network frequency 50/60 Hz
[Ui] rated insulation voltage 1000 V
[Uimp] rated impulse withstand voltage 12 kV
[Icu] ultimate breaking capacity 50 kA
[Ics] rated service breaking capacity 50 kA
[Icw] rated short-time withstand current 10 kA duration: 1 s
Mechanical durability 5000 cycles
Electrical durability 2500 cycles on AC at 400/415 V
Height 280 mm
Width 280 mm
Depth 116 mm
Product certifications CETÜV
Standards EN/IEC 60947-1EN/IEC 60947-2
Pollution degree 3
IP degree of protection IP20
Rated ambient air temperature 40 °C
Ambient air temperature for storage -40…70 °C
Operating altitude 2000 m
Relative humidity 0…90 %
