Molded case circuit breaker HDM6s - 100M 3P 40 A - adjustable - 40 C - 1

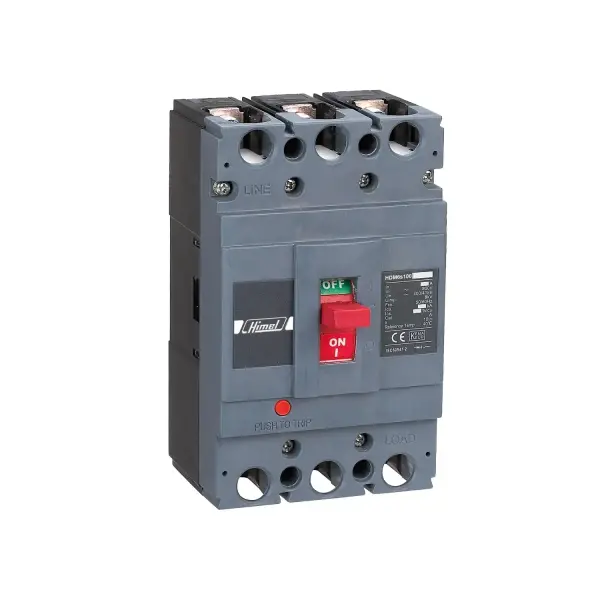

Molded case circuit breaker HDM6s - 100M 3P 40 A - adjustable - 40 C

Ürün Kodu : HDM6S100M0403XXX3
kargo bedava
güvenli alışveriş
vade farksız taksit
ücretsiz iade
Açıklamalar
Main
Range of product HDM6s
Trip unit technology Thermal-magnetic
Device application Power distribution protection
Product or component type Enclosed moulded case circuit breaker
Poles description 3P
[In] rated current 40.0 A
Frame size 100AF
[Ue] rated operational voltage 400/415 V
Network type AC
Network frequency 50...60 Hz
Electrical durability 1500.0 cycles
Mechanical durability 8500.0 cycles
[Uimp] rated impulse withstand voltage 8.0 kV
[Ics] rated service breaking capacity 30 kA
Rated breaking capacity 50 kA
[Ui] rated insulation voltage 800.0 V
Mounting mode Adjustable
Height 92.0 mm
Width 150.0 mm
Depth 107.0 mm
Ambient air temperature for operation -5…40 °C
Ambient air temperature for storage -20…70 °C
Operating altitude 0...2000 m
Standards IEC 60947-2
Product certifications CBCEKEMA
