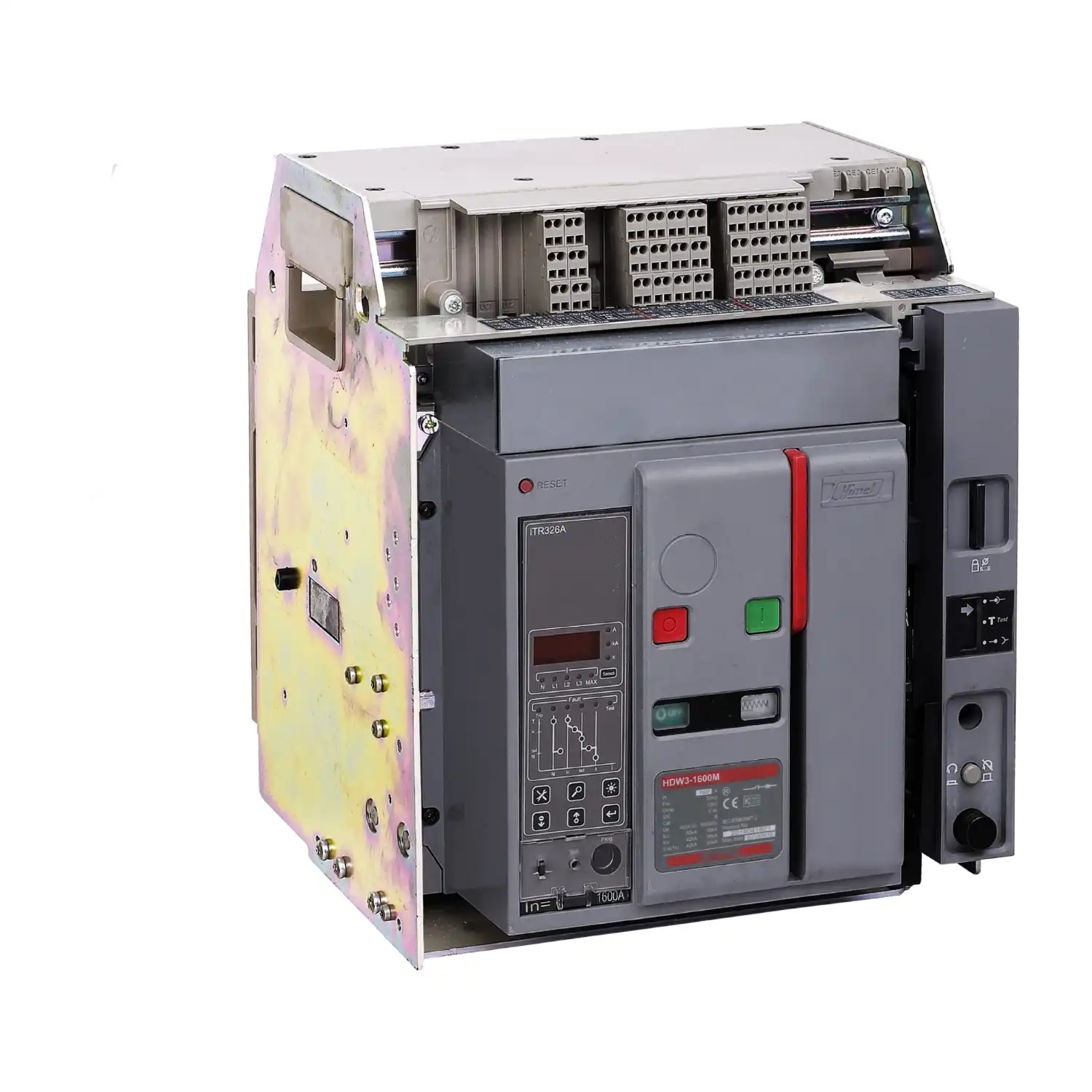

HDW316M104FHNNN4M - air circuit breaker, HDW3, 1600AF, 1000 A, 4P, fixed horizontal, 4 NO + 4 NC - 1
HDW316M104FHNNN4M - air circuit breaker, HDW3, 1600AF, 1000 A, 4P, fixed horizontal, 4 NO + 4 NC - 2
HDW316M104FHNNN4M - air circuit breaker, HDW3, 1600AF, 1000 A, 4P, fixed horizontal, 4 NO + 4 NC - 3

HDW316M104FHNNN4M - air circuit breaker, HDW3, 1600AF, 1000 A, 4P, fixed horizontal, 4 NO + 4 NC

Ürün Kodu : HDW316M104FHNNN4M
51.752,58 ₺ / 51.752,58 TL + KDV
 tarihine kadar kargoda
kargo bedava
güvenli alışveriş
vade farksız taksit
ücretsiz iade
Açıklamalar
Main
Range of product HDW3
Product or component type Air circuit breaker
Frame size 1600AF
[Icu] ultimate breaking capacity 35 kA at 690 V load50 kA at 400 V load
[Ics] rated service breaking capacity 35 kA at 690 V42 kA at 400 V
[Icw] rated short-time withstand current 35 kA at 690 V duration: 1 s42 kA at 400 V duration: 1 s
[In] rated current 1000 A
Poles description 4P
Mounting mode Fixed
Mounting position Horizontal
[Uc] control circuit voltage 230 V AC: motor mechanism (MCH) + closing release (XF)230 V AC: shunt release (MX)230 V AC: undervoltage release (MN)
Maximum tripping time 25 ms
Maximum closing response time 70 ms
Auxiliary contact composition 4 NO + 4 NC
Product compatibility Series intelligent controller iTR326A standard protection
Height 310 mm
Width 346 mm
Depth 229 mm
Net weight 17 kg
Unit Type of Package 1 PCE
Number of Units in Package 1 1
Package 1 Height 31.0 cm
Package 1 Width 34.6 cm
Package 1 Length 22.9 cm
Package 1 Weight 17.0 kg
