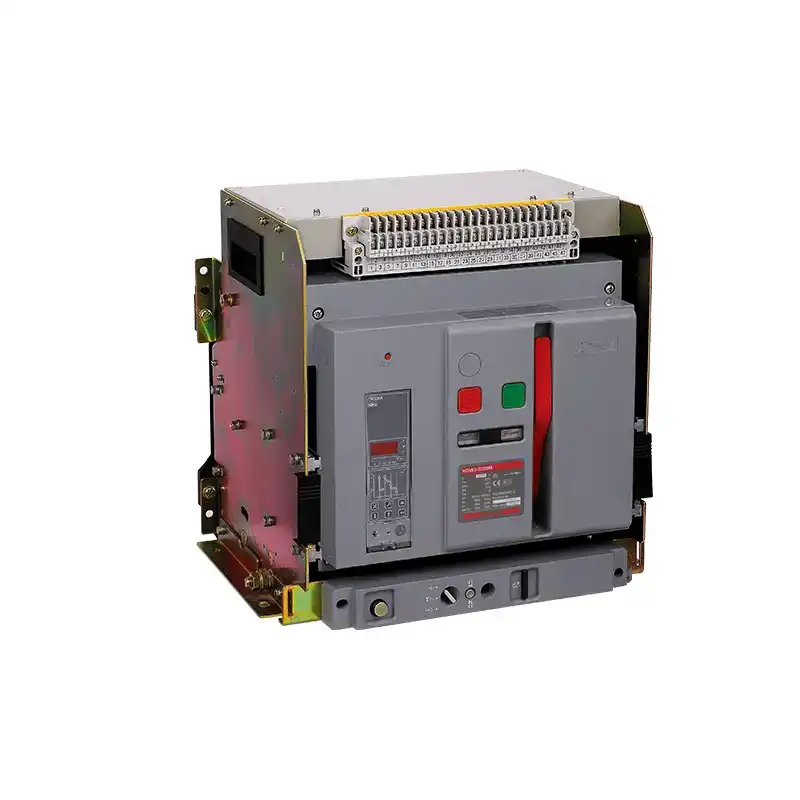

HDW332M253FH5556M - air circuit breaker, HDW3, 3200AF, 2500 A, 3P, fixed horizontal, 6 NO + 6 NC - 1

HDW332M253FH5556M - air circuit breaker, HDW3, 3200AF, 2500 A, 3P, fixed horizontal, 6 NO + 6 NC

Ürün Kodu : HDW332M253FH5556M
kargo bedava
güvenli alışveriş
vade farksız taksit
ücretsiz iade
Açıklamalar
Main
Range of product HDW3
Product or component type Air circuit breaker
Frame size 3200AF
[Icu] ultimate breaking capacity 65 kA at 690 V load80 kA at 400 V load
[Ics] rated service breaking capacity 50 kA at 690 V65 kA at 400 V
[Icw] rated short-time withstand current 50 kA at 690 V duration: 1 s65 kA at 400 V duration: 1 s
[In] rated current 2500 A
Poles description 3P
Mounting mode Fixed
Mounting position Horizontal
Voltage release type Without motor mechanism, closing release, shunt release and undervoltage release
Maximum tripping time 25 ms
Maximum closing response time 70 ms
Auxiliary contact composition 6 NO + 6 NC
Product compatibility Series intelligent controller iTR326A standard protection
Height 397 mm
Width 428 mm
Depth 327 mm
Net weight 53.4 kg
Unit Type of Package 1 PCE
Number of Units in Package 1 1
Package 1 Height 39.7 cm
Package 1 Width 42.8 cm
Package 1 Length 32.7 cm
Package 1 Weight 53.4 kg
