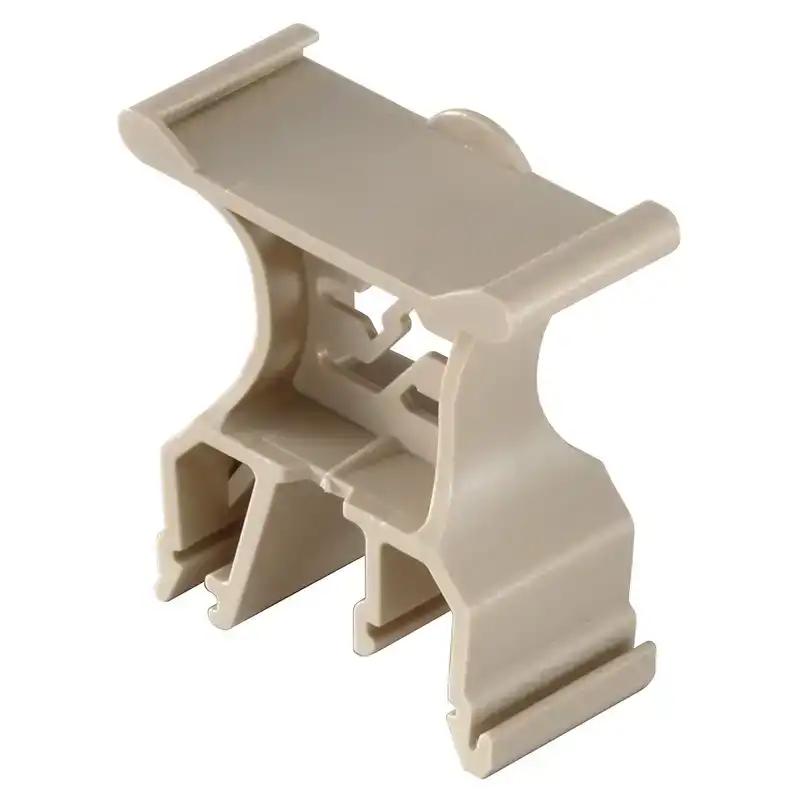

SCHT 5 Grup Etiket Taşıyıcısı - 1

SCHT 5 Grup Etiket Taşıyıcısı

Ürün Kodu : 0292460000
kargo bedava
güvenli alışveriş
vade farksız taksit
ücretsiz iade
Açıklamalar
General ordering data
Version SCHT, Terminal marker, 44.5 x 19.5 mm, Pitch in mm (P): 5.00 Weidmueller, beige
Order No. 0292460000
Type SCHT 5
GTIN (EAN) 4008190105440
Qty. 20 pc(s).
Dimensions and weights
Height 44.5 mm
Height (inches) 1.752 inch
Width 19.5 mm
Width (inches) 0.768 inch
Net weight 7.9 g
Temperatures
Operating temperature range -40...100 °C
Environmental Product Compliance
RoHS Compliance Status Compliant without exemption
REACH SVHC No SVHC above 0.1 wt%
General data
Application/manufacturer Weidmueller
Colour beige
Halogen No
Material Polyamide 66
Number of markers per combination 1 Component part = Terminal marker
Number of markers per packaging unit
Form of supply Component part
Operating temperature range -40...100 °C
Operating temperature range, max. 100 °C
Operating temperature range, min. -40 °C
Orientation of print horizontal and vertical
Printed characters without
Type of printing neutral
UL 94 flammability rating V-2
Width 19.5 mm
Connector markers
Pitch in mm (P) 5 mm
Downloads
Engineering Data
Eplan Data Portal Eplan data
CADENAS eCATALOG CAX data
Catalogues Catalogues in PDF-format
Classifications
ETIM 6.0 EC000761
ETIM 7.0 EC000761
ETIM 8.0 EC000761
ETIM 9.0 EC000761
ECLASS 9.0 27-14-11-37
ECLASS 9.1 27-14-11-37
ECLASS 10.0 27-14-11-37
ECLASS 11.0 27-28-11-01
ECLASS 12.0 27-28-11-01
ECLASS 13.0 27-28-11-01
ECLASS 14.0 27-28-11-01
