DEK 5 FW 1-50 - 1

DEK 5 FW 1-50

Ürün Kodu : 0473460001
%59
indirim
7,03 TL
2,88 ₺ / 0,07 € + KDV
3 ay içinde kargoda
kargo bedava
güvenli alışveriş
vade farksız taksit
ücretsiz iade
Açıklamalar
General ordering data

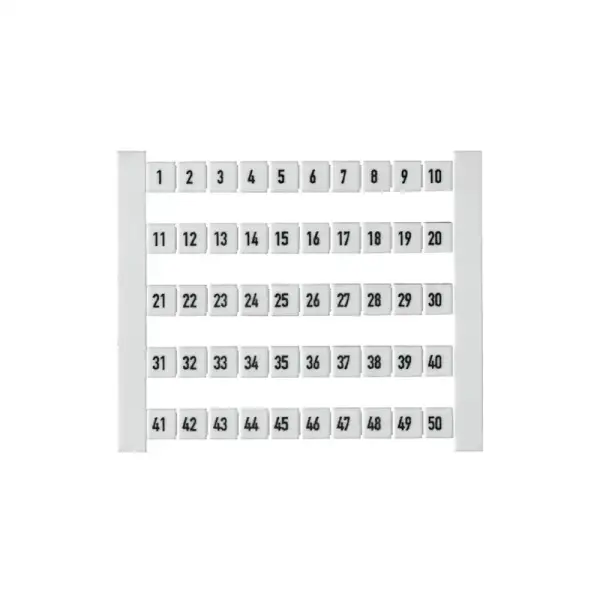

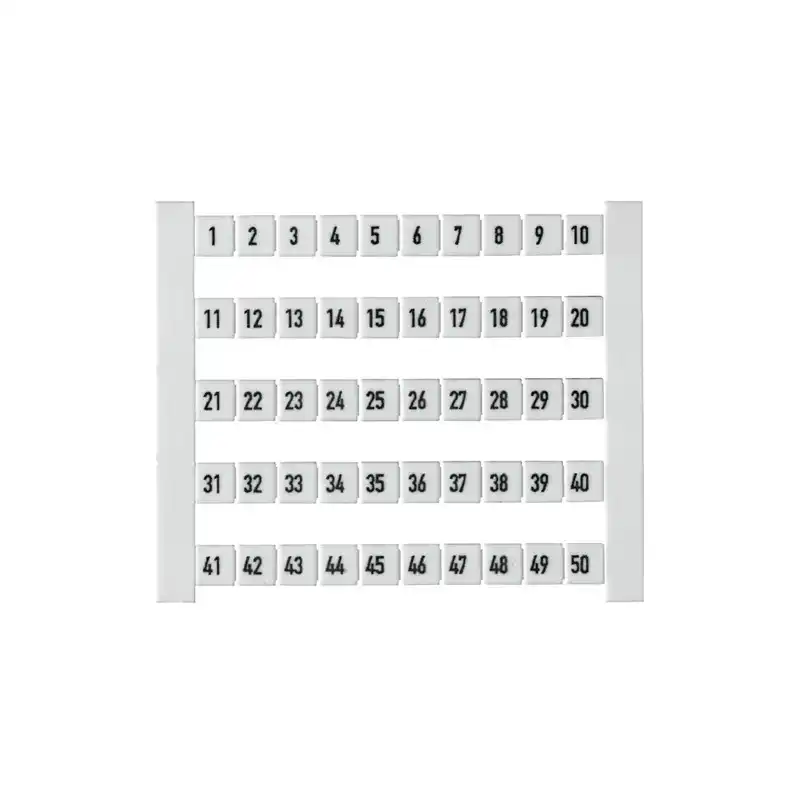

Version Dekafix, Terminal marker, 5 x 5 mm, Pitch in mm (P): 5.00 Weidmueller, white
Order No. 0473460001
Type DEK 5 FW 1-50
GTIN (EAN) 4008190135157
Qty. 500 pc(s).
Dimensions and weights
Height 5 mm
Height (inches) 0.197 inch
Width 5 mm
Width (inches) 0.197 inch
Net weight 0.05 g
Temperatures
Operating temperature range -40...100 °C
Environmental Product Compliance
RoHS Compliance Status Compliant without exemption
REACH SVHC No SVHC above 0.1 wt%
General data
Application/manufacturer Weidmueller
Colour white
Colour of printing black
Halogen No
Material Polyamide 66
Material colour according to resistance code
Number of markers per combination 1 Card = Terminal marker
Number of markers per packaging unit
Form of supply Card
Operating temperature range -40...100 °C
Operating temperature range, max. 100 °C
Operating temperature range, min. -40 °C
Orientation of print horizontal
Printed characters Numbers
Printing method MC Laser
UL 94 flammability rating V-2
Width 5 mm
Connector markers
Pitch in mm (P) 5 mm
Downloads
Engineering Data
Eplan Data Portal Eplan data
CADENAS eCATALOG CAX data
Product Change Notification
Catalogues Catalogues in PDF-format
Brochures
Classifications
ETIM 6.0 EC000761
ETIM 7.0 EC000761
ETIM 8.0 EC000761
ETIM 9.0 EC000761
ECLASS 9.0 27-14-11-37
ECLASS 9.1 27-14-11-37
ECLASS 10.0 27-14-11-37
ECLASS 11.0 27-28-11-01
ECLASS 12.0 27-28-11-01
ECLASS 13.0 27-28-11-01
ECLASS 14.0 27-28-11-01
