WAD 5 MC NE WS - 1
Açıklamalar
General ordering data

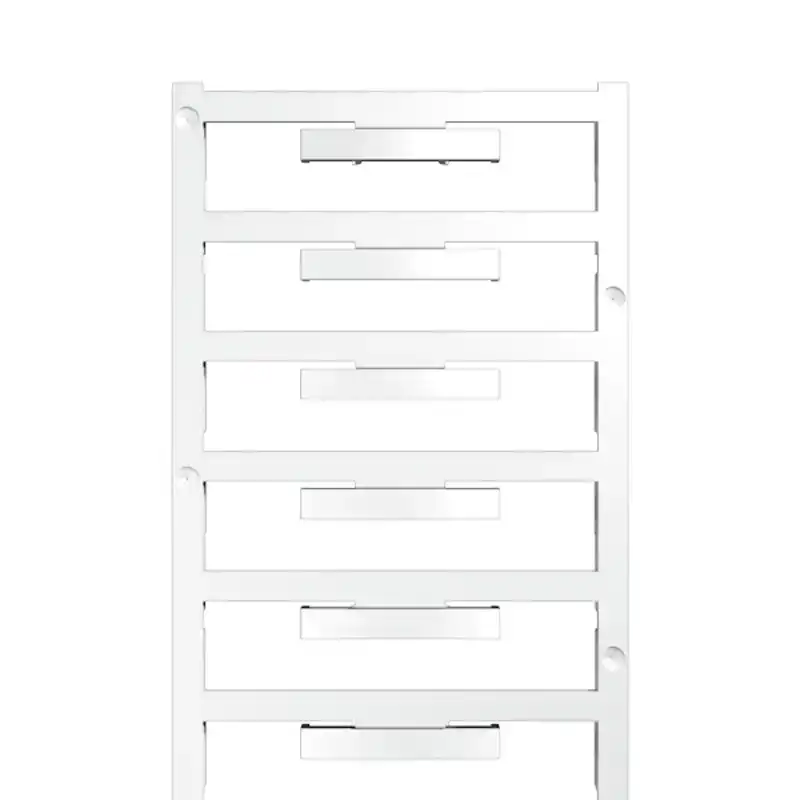

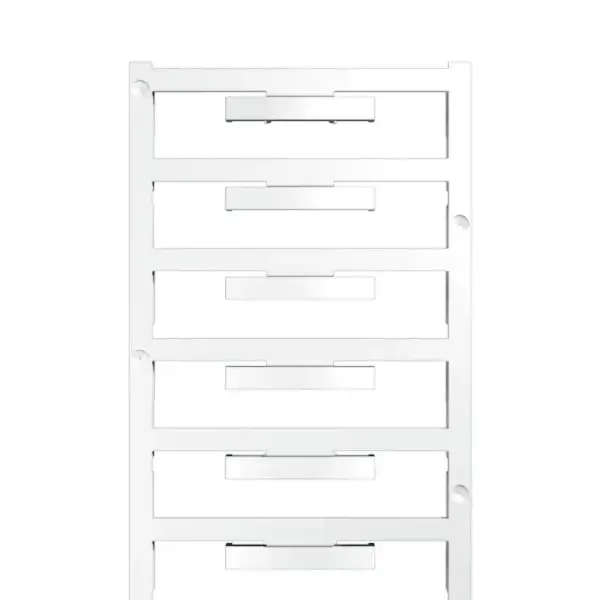

Version Group markers, Cover, 33.3 x 5 mm, Pitch in mm (P): 5.00 WDU 2.5, WEW 35/2, ZEW 35/2, white
Order No. 1112910000
Type WAD 5 MC NE WS
GTIN (EAN) 4032248891689
Qty. 48 pc(s).
Dimensions and weights
Depth 11.74 mm
Depth (inches) 0.462 inch
Height 33.3 mm
Height (inches) 1.311 inch
Width 5 mm
Width (inches) 0.197 inch
Net weight 1.449 g
Temperatures
Operating temperature range -40...100 °C
Continuous operating temp., min. -50 °C
Environmental Product Compliance
RoHS Compliance Status Compliant without exemption
REACH SVHC No SVHC above 0.1 wt%
Product Carbon Footprint
Cradle to gate 0.032 kg CO2 eq.
General data
Application/manufacturer WDU 2.5, WEW 35/2, ZEW 35/2
Colour white
Halogen No
Material Polyamide 66
Material colour according to resistance code
Number of markers per combination 1 MultiCard = Cover
Number of markers per packaging unit
Form of supply MultiCard
Operating temperature range -40...100 °C
Operating temperature range, max. 100 °C
Operating temperature range, min. -40 °C
Orientation of print horizontal and vertical
Printed characters neutral
Type of printing neutral
UL 94 flammability rating V-2
Width 5 mm
compatible printer 2715590000
Connector markers
Pitch in mm (P) 5 mm
DownloadsClassifications
ETIM 6.0 EC000761
ETIM 7.0 EC000761
ETIM 8.0 EC000761
ETIM 9.0 EC000761
ECLASS 9.0 27-14-11-37
ECLASS 9.1 27-14-11-37
ECLASS 10.0 27-14-11-37
ECLASS 11.0 27-28-11-01
ECLASS 12.0 27-28-11-01
ECLASS 13.0 27-28-11-01
ECLASS 14.0 27-28-11-01
