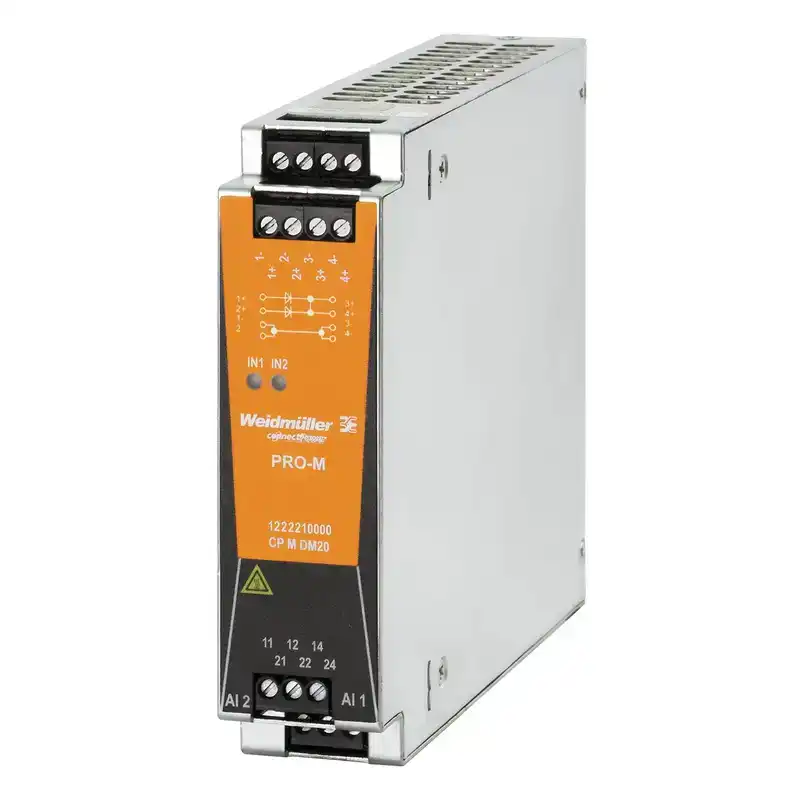

CP M DM20 - 1

CP M DM20

Ürün Kodu : 1222210000
%59
indirim
5.790,13 TL
2.373,95 ₺ / 54,53 € + KDV
3 ay içinde kargoda
kargo bedava
güvenli alışveriş
vade farksız taksit
ücretsiz iade
Açıklamalar
General ordering data
Version Diode module
Order No. 1222210000
Type CP M DM20
GTIN (EAN) 4050118005608
Qty. 1 pc(s).
Delivery status This article will no longer be available in the future.
Available until 2022-10-31
Alternative product 2486090000
Dimensions and weights
Depth 150 mm
Depth (inches) 5.905 inch
Height 130 mm
Height (inches) 5.118 inch
Width 34 mm
Width (inches) 1.339 inch
Net weight 584 g
Temperatures
Storage temperature -40 °C...85 °C
Operating temperature -25 °C...70
Humidity 5...95 %, no condensation
Environmental Product Compliance
RoHS Compliance Status Compliant
REACH SVHC Lead 7439-92-1
SCIP c9dca554-f123-4c2f-a680-5a7631aa9527
Input
DC input voltage range 18…30 V DC
Input current 2 x 10 A or 1 x 20 A
Rated input voltage 24 V DC
Wire connection method Screw connection
Output
Continuous output current @ UNominal 24 A @ 45 °C, 22.5 A @ 55 °C, 15 A @ 70 °C
Nominal output current for Unom 20 A @ 60 °C
Output current, max. 24 A
Output voltage, note Voltage input - 0.7 V
Rated output voltage 24 V DC ± 1 %
Switching thresholds 21.6 V DC, relay is on for Power Good, 20.4 V DC, relay is off for Power Fail
Voltage monitoring Yes, In both inputs
Wire connection method Screw connection
General data
Degree of efficiency > 97% @ 24 V Input voltage
Humidity 5...95 %, no condensation
Mounting position, installation notice Horizontal on TS35 mounting rail. 50 mm of clearance at top & bottom for air circ. Can mount side by side with no space in between.
Protection degree IP20
EMC / shock / vibration
Interference immunity test acc. to EN 61000-4-2 (ESD)|EN 61000-4-3 and EN 61000-4-8 (fields)|EN 61000-4-4 (burst)|EN 61000-4-5 (surge)|EN 61000-4-6 (conducted)
Noise emission in accordance with EN55032 Class B
Shock resistance IEC 60068-2-27 15 g In all directions
Vibration resistance IEC 60068-2-6 1 g according to EN 50178
