General ordering data
| Version | UPS control unit |
| Order No. | 1370050010 |

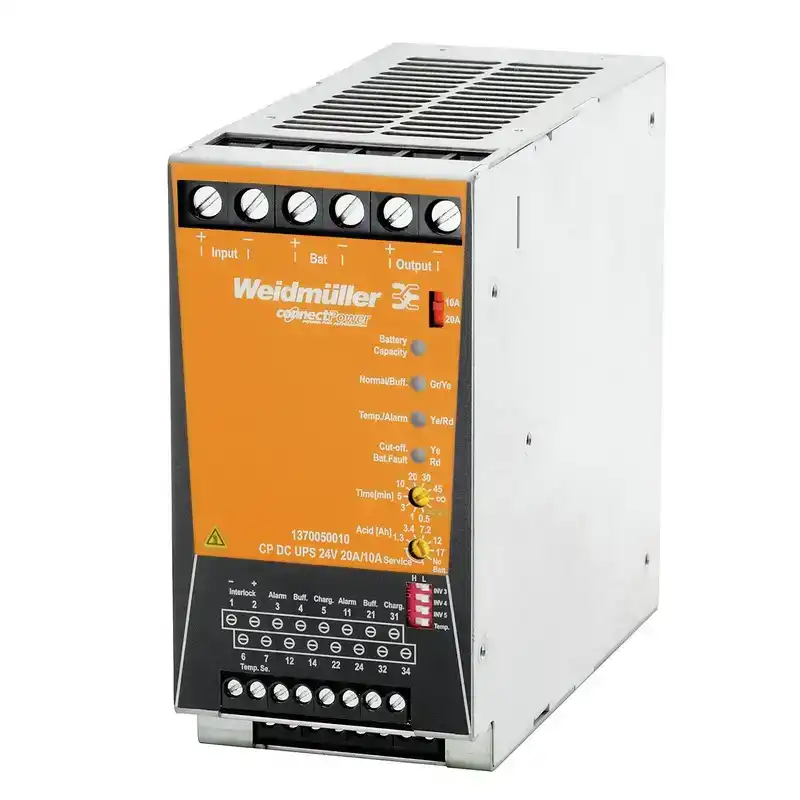

| Type | CP DC UPS 24V 20A/10A |
| GTIN (EAN) | 4050118202335 |
| Qty. | 1 pc(s). |
Dimensions and weights
| Depth | 150 mm |
| Depth (inches) | 5.905 inch |
| Height | 130 mm |
| Height (inches) | 5.118 inch |
| Width | 66 mm |
| Width (inches) | 2.598 inch |
| Net weight | 1,139 g |
Temperatures
| Storage temperature | -40 °C...85 °C |
| Operating temperature | -25 °C...70 °C |
| Humidity | 5...95 %, no condensation |
Environmental Product Compliance
| RoHS Compliance Status | Compliant with exemption |
| RoHS Exemption (if applicable/known) | 7a, 7cI |
| REACH SVHC | Lead 7439-92-1 |
| SCIP | d6c68c9e-3e33-4fa9-920e-331473bf0422 |
Battery module
| Parallel connection option | yes, max. 2 |
| Rated voltage | 24 V |
| Storage medium | 1.3 Ah, 3.4 Ah, 7.2 Ah, 12 Ah, 17 Ah, Selectable with rotary switch |
Integrated battery charger
| Battery availability test | every minute |
| Charging current | 0.15 cA |
| Charging feature | IU characteristic curve |
| Charging voltage (temperature compensated) | 27, 48 V @ 20°C |
| Temperature coefficient | - 48 mV / °C |
Operating interfaces and control inputs
| Function DIP switch | Inversion of transistor outputs, Operation without temperature probe |
| Output current selector switch | 20 A, 10 A |
| Remote disconnection (Interlock) | Yes |
| Selector switch battery | 1.3 Ah, 3.4 Ah, 7.2 Ah, 12 Ah, 17 Ah, No Battery, Service |
| Selector switch buffer times | 0.5 min, 1 min, 3 min, 5 min, 10 min, 20 min, 30 min, 45 min, ∞, ∞ w/0 |
| Temperature probe | NTC 100 kΩ |
Input
| DC current consumption | max. 200 mA (without battery), max. 0.5 A (with fully charged battery) |
| DC input voltage range | 20...30 V DC |
| Input current | ≤ 13A (for 10A), ≤ 23A (for 20A) |
| Input fuse (internal) | Yes |
| Max. approved input current | 28 A |
| Rated input voltage | 24 V DC |
| Wire connection method | Screw connection |
