THM MT30X 12/6 GE - 1
Açıklamalar
General ordering data

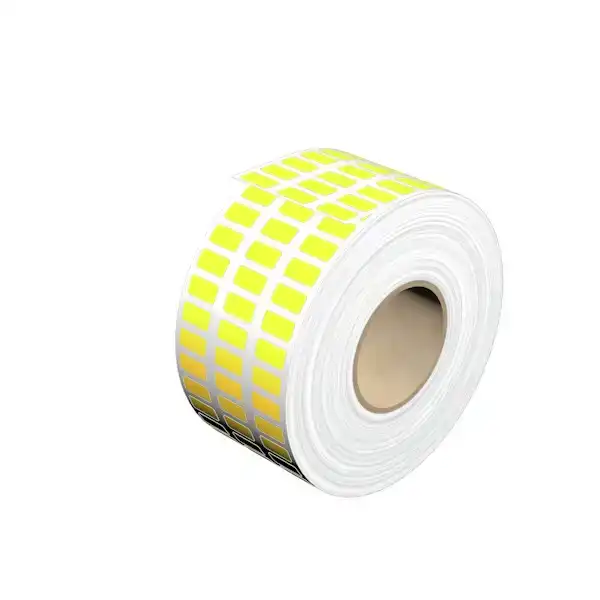

Version THM, Device markers, 6 x 12 mm, yellow
Order No. 1391390000
Type THM MT30X 12/6 GE
GTIN (EAN) 4050118191523
Qty. 1 pc(s).
Dimensions and weights
Depth 0.08 mm
Depth (inches) 0.003 inch
Height 6 mm
Height (inches) 0.236 inch
Width 12 mm
Width (inches) 0.472 inch
Net weight 169 g
Temperatures
Operating temperature range -40...150 °C
Environmental Product Compliance
RoHS Compliance Status Compliant without exemption
REACH SVHC No SVHC above 0.1 wt%
General data
Adhesive Acrylate
Colour yellow
Halogen No
Material Polyester
Number of markers per combination 1 Label reel = Device markers
Number of markers per packaging unit
Form of supply Label reel
Number per roll 10,000
Operating temperature range -40...150 °C
Operating temperature range, max. 150 °C
Operating temperature range, min. -40 °C
Printing method Thermal transfer
UL 94 flammability rating V-0
Version Self-adhesive, halogen-free
Width 12 mm
compatible printer 2599430000
2599440000
Device markers
Halogen No
Downloads
Engineering Data
Eplan Data Portal Eplan data
CADENAS eCATALOG CAX data
Catalogues Catalogues in PDF-format
Classifications
ETIM 6.0 EC001288
ETIM 7.0 EC001288
ETIM 8.0 EC001288
ETIM 9.0 EC001288
ECLASS 9.0 27-40-06-29
ECLASS 9.1 27-40-06-29
ECLASS 10.0 27-40-06-29
ECLASS 11.0 27-28-11-04
ECLASS 12.0 27-28-11-04
ECLASS 13.0 27-28-11-04
ECLASS 14.0 27-28-11-04
