HSS-HF 1.6-3.2 EL W13M - 1
Açıklamalar
General ordering data

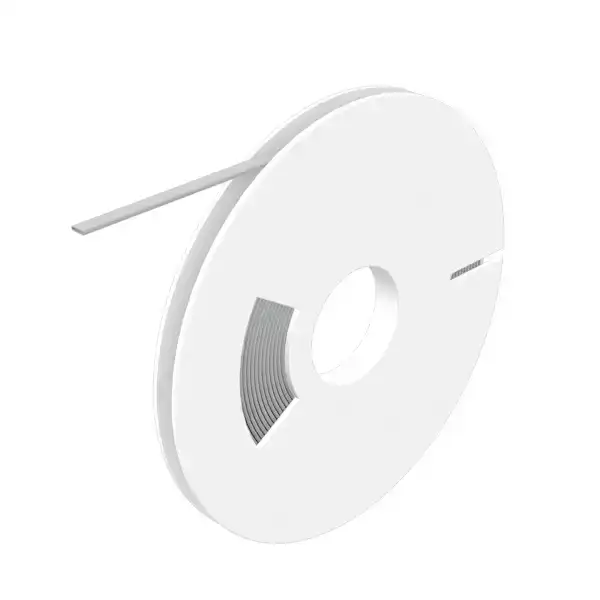

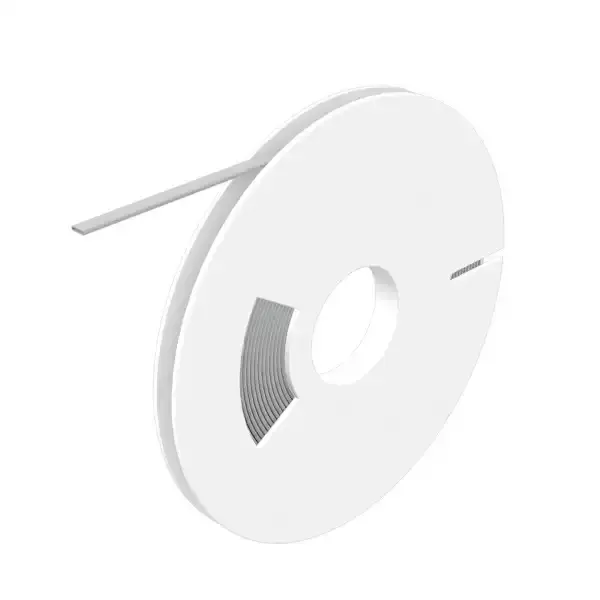

Version Conductor and cable markers, 1.6 - 3.2 mm, white
Order No. 1423340000
Type HSS-HF 1.6-3.2 EL W13M
GTIN (EAN) 4050118227581
Qty. 1 pc(s).
Dimensions and weights
Depth 0.7 mm
Depth (inches) 0.028 inch
Width 5.6 mm
Width (inches) 0.22 inch
Length 13,000 mm
Length (inches) 511.81 inch
Net weight 110 g
Temperatures
Operating temperature range -55...105 °C
Environmental Product Compliance
RoHS Compliance Status Compliant without exemption
REACH SVHC No SVHC above 0.1 wt%
General data
Colour white
Halogen No
Length 13,000 mm
Material Polyolefine
Number per roll
Operating temperature range -55...105 °C
Operating temperature range, max. 105 °C
Operating temperature range, min. -55 °C
Printed characters without
Type of printing neutral
Width 5.6 mm
compatible printer 2599430000
2599440000
Conductor and cable markers
Conductor O.D. 1.6 - 3.2 mm
Conductor O.D., max. 3.2 mm
Conductor O.D., min. 1.6 mm
Conductor cross-section, max. 1.5 mm²
Conductor cross-section, min. 0.5 mm²
Cross-section for connected wire 0.5 - 1.5 mm²
Halogen No
Rate of shrinkage 2:1
Recommended shrinking temperature 90 °C
Text field height 5.4 mm
Text field width 0 mm
Downloads
Approval/Certificate/Document of Conformity
Eplan Data Portal Eplan data
Catalogues Catalogues in PDF-format
Classifications
ETIM 6.0 EC001530
ETIM 7.0 EC001530
ETIM 8.0 EC001530
ETIM 9.0 EC001530
ECLASS 9.0 27-40-04-01
ECLASS 9.1 27-40-04-01
ECLASS 10.0 27-40-04-01
ECLASS 11.0 27-28-11-02
ECLASS 12.0 27-28-11-02
ECLASS 13.0 27-28-11-02
ECLASS 14.0 27-28-11-02
