PZ 6 ROTO L Pabuç Sıkma Pensesi - 1

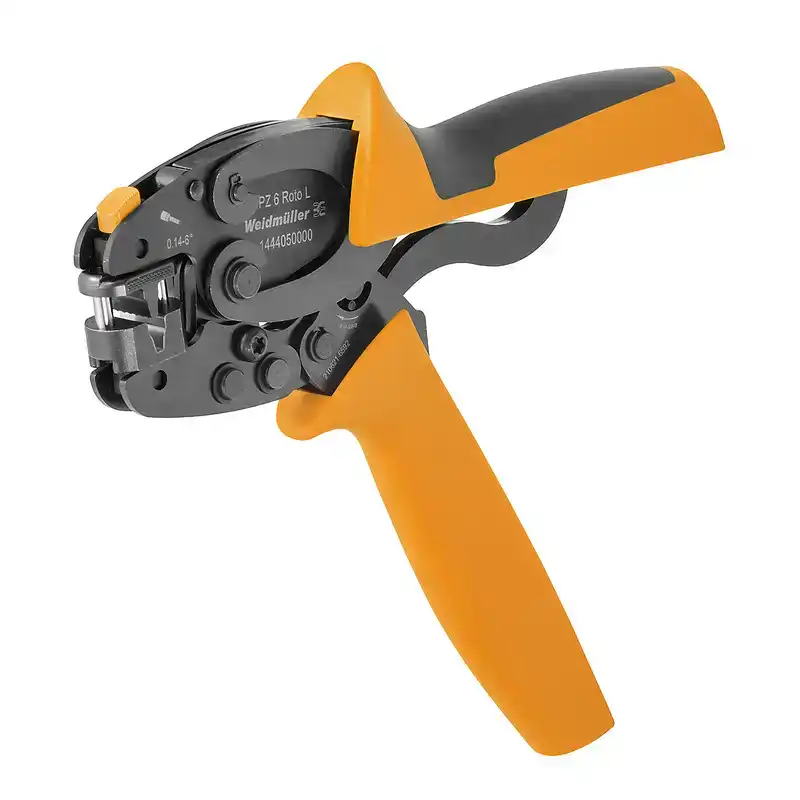

PZ 6 ROTO L Pabuç Sıkma Pensesi

Ürün Kodu : 1444050000
%59
indirim
24.553,63 TL
10.066,99 ₺ / 231,24 € + KDV
3 ay içinde kargoda
kargo bedava
güvenli alışveriş
vade farksız taksit
ücretsiz iade
Açıklamalar
General ordering data
Version Pressing tool, Crimping tool for wire-end ferrules, 0.14mm², 6mm², Trapezoidal crimp
Order No. 1444050000
Type PZ 6 ROTO L
GTIN (EAN) 4050118248593
Qty. 1 pc(s).
Dimensions and weights
Depth 22 mm
Depth (inches) 0.866 inch
Height 80 mm
Height (inches) 3.15 inch
Width 200 mm
Width (inches) 7.874 inch
Net weight 431.4 g
Environmental Product Compliance
RoHS Compliance Status Not affected
REACH SVHC Lead 7439-92-1
SCIP 2159813b-98fd-4068-b62a-bc89a046c012
Technical data
Description of article (1)Crimping tool
Version Mechanical, without interchangeable inserts
Description of contact
Conductor cross-section, max. AWG AWG 10
Conductor cross-section, min. AWG AWG 26
Crimping range, max. 6 mm²
Crimping range, min. 0.14 mm²
Type of contact Wire-end ferrules with/without plastic collars
tool data crimping
Crimping type/profile Trapezoidal crimp
Wire end ferrules cross-section, max. 6 mm²
Wire end ferrules cross-section, min. 0.14 mm²
Downloads
Engineering Data
CADENAS eCATALOG CAX data
User Documentation
Catalogues Catalogues in PDF-format
Brochures
Classifications
ETIM 6.0 EC000168
ETIM 7.0 EC000168
ETIM 8.0 EC000168
ETIM 9.0 EC000168
ECLASS 9.0 21-04-38-11
ECLASS 9.1 21-04-38-11
ECLASS 10.0 21-04-38-11
ECLASS 11.0 21-04-38-11
ECLASS 12.0 21-04-38-11
ECLASS 13.0 21-04-38-11
ECLASS 14.0 21-04-38-11
