PZ 10 HEX Kablo Yüksük Sıkma Pensesi - 1

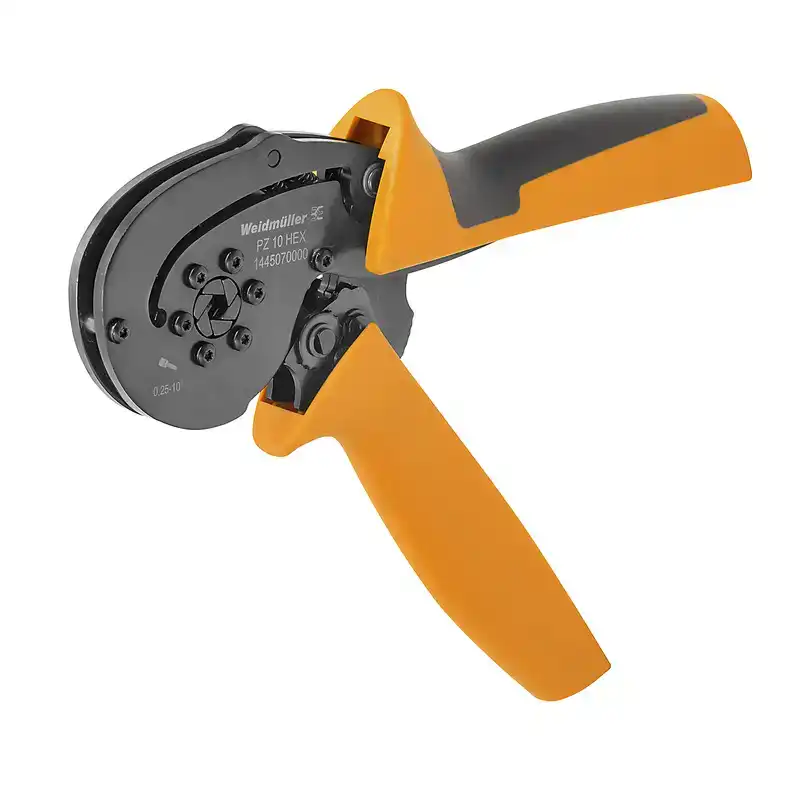

PZ 10 HEX Kablo Yüksük Sıkma Pensesi

Ürün Kodu : 1445070000
%59
indirim
36.220,95 TL
14.850,59 ₺ / 340,30 € + KDV
3 ay içinde kargoda
kargo bedava
güvenli alışveriş
vade farksız taksit
ücretsiz iade
Açıklamalar
General ordering data
Version Crimping tool for wire-end ferrules, 0.25mm², 10mm², Hexagonal crimp
Order No. 1445070000
Type PZ 10 HEX
GTIN (EAN) 4050118250312
Qty. 1 pc(s).
Dimensions and weights
Width 195 mm
Width (inches) 7.677 inch
Net weight 528 g
Environmental Product Compliance
RoHS Compliance Status Not affected
REACH SVHC Lead 7439-92-1
SCIP 2159813b-98fd-4068-b62a-bc89a046c012
Technical data
Description of article (1)Crimping tool
Description of contact
Conductor cross-section, max. AWG AWG 8
Conductor cross-section, min. AWG AWG 24
Crimping range, max. 10 mm²
Crimping range, min. 0.25 mm²
Type of contact Wire-end ferrules with/without plastic collars
tool data crimping
Crimping type/profile Hexagonal crimp
Wire end ferrules cross-section, max. 10 mm²
Wire end ferrules cross-section, min. 0.25 mm²
Downloads
Engineering Data
CADENAS eCATALOG CAX data
User Documentation
Catalogues Catalogues in PDF-format
Brochures
Classifications
ETIM 6.0 EC000168
ETIM 7.0 EC000168
ETIM 8.0 EC000168
ETIM 9.0 EC000168
ECLASS 9.0 21-04-38-11
ECLASS 9.1 21-04-38-11
ECLASS 10.0 21-04-38-11
ECLASS 11.0 21-04-38-11
ECLASS 12.0 21-04-38-11
ECLASS 13.0 21-04-38-11
ECLASS 14.0 21-04-38-11
