STRIPAX ULTIMATE Kablo Sıyırma Aleti - 1

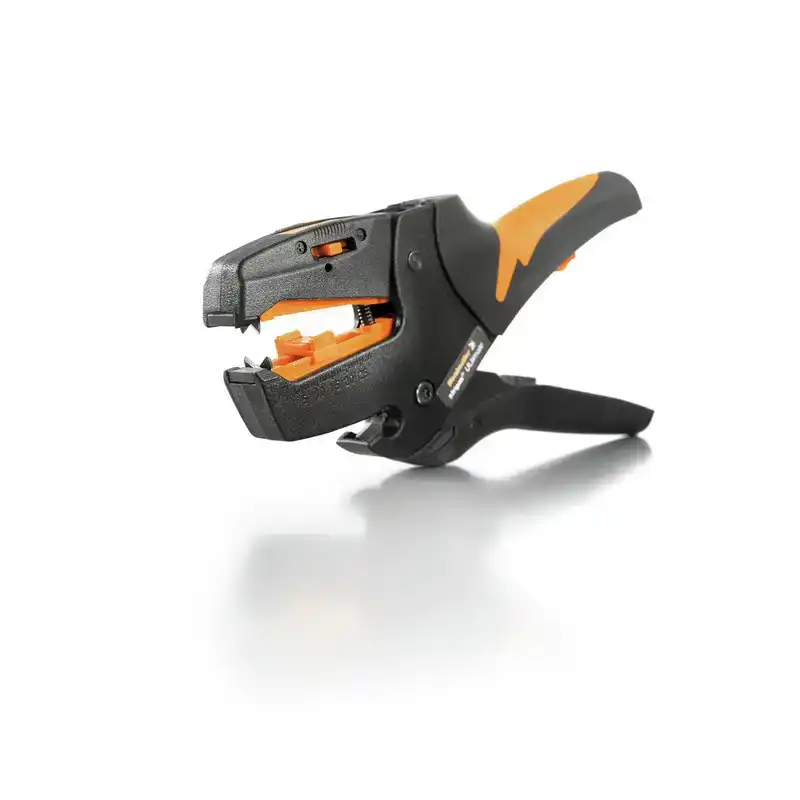

STRIPAX ULTIMATE Kablo Sıyırma Aleti

Ürün Kodu : 1468880000
kargo bedava
güvenli alışveriş
vade farksız taksit
ücretsiz iade
Açıklamalar
General ordering data
Version Tools, Stripping and cutting tool
Order No. 1468880000
Type STRIPAX ULTIMATE
GTIN (EAN) 4050118274158
Qty. 1 pc(s).
Dimensions and weights
Depth 22 mm
Depth (inches) 0.866 inch
Height 99 mm
Height (inches) 3.898 inch
Width 190 mm
Width (inches) 7.48 inch
Net weight 174.63 g
Environmental Product Compliance
RoHS Compliance Status Not affected
REACH SVHC Lead 7439-92-1
SCIP cf06c250-ed1e-4a45-9c1b-c5c8cbf13bf0
Technical data
Description of article Wire stripper unit
Stripping tools
Cable type Flexible and solid conductors with halogen-free insulation
Conductor cross-section (cutting capacity) 6 mm²
Conductor cross-section, max. 6 mm²
Conductor cross-section, min. 0.25 mm²
Stripping length, max. 25 mm
Stripping range AWG, max. 10 AWG
Stripping range AWG, min. 24 AWG
DownloadsClassifications
ETIM 6.0 EC002109
ETIM 7.0 EC002109
ETIM 8.0 EC002109
ETIM 9.0 EC002109
ECLASS 9.0 21-04-37-06
ECLASS 9.1 21-04-37-06
ECLASS 10.0 21-04-37-06
ECLASS 11.0 21-04-37-06
ECLASS 12.0 21-04-37-06
ECLASS 13.0 21-04-37-06
ECLASS 14.0 21-04-37-06
Accessories

Online Catalogue | Workplace & Accessories | Tools | Stripping the insulation | Stripping tools and accessories | Stripping tools with automatic self-adjustment | Accessories / replacement parts:

Order No.: 1471390000
Type: ERME SPX UL
Version:
Accessories, Cutter holder

Order No.: 2571500000
Type: ERTE KLBC SPX UL
Version:
Accessories, Replacement clamping jaw
