Version	Power supply, switch-mode power supply unit, 24 V
Order No.	1469520000
Type	PRO ECO 960W 24V 40A
GTIN (EAN)	4050118275704
Qty.	1 pc(s).

Storage temperature	-40 °C...85 °C
Operating temperature	-25 °C...70 °C

RoHS Compliance Status	Compliant with exemption
RoHS Exemption (if applicable/known)	7a, 7cI
REACH SVHC	Lead 7439-92-1
SCIP	6d8cdf22-8230-4af8-86c8-3558c716666d

AC current consumption	4,6 A @ 230 V AC / 9,9 A @ 110 V AC
AC input voltage range	85...264 V AC (derating at 100 V AC)
Connection system	Screw connection
DC current consumption	2,9 A @ 370 V DC / 9 A @ 120 V DC
DC input voltage range	80...370 V DC (Derating @ 120 V DC)
Frequency range AC	47...63 Hz
Input frequency	47...63 Hz
Input fuse (internal)	Yes
Inrush current	max. 5 A
Nominal power consumption	1,032.3 VA
Rated input voltage	100...240 V AC
Recommended back-up fuse	16 A / DI, safety fuse 20 A, Char. B, circuit breaker 16 A, Char. C, circuit breaker
Surge protection	Varistor

Capacitive load	unrestricted
Connection system	Screw connection
Continuous output current @ U_Nominal	40 A @ 50 °C, 24 A @ 70 °C
Nominal output current for U_nom	40 A @ 50 °C
Output power	960 W
Output voltage, max.	28 V
Output voltage, min.	22 V
Output voltage, note	(adjustable via potentiometer)
Overload protection	Yes
Parallel connection option	yes, max. 3
Protection against inverse voltage	Yes
Ramp-up time	≤ 100 ms
Rated output voltage	24 V DC ± 1 %
Residual ripple, breaking spikes	<50 mV_PP @ 24 V DC, I_N

AC failure bridging time @ I_nom

> 20 ms @ 230 V AC / > 20 ms @ 115 V AC

Degree of efficiency

93%

Earth leakage current, max.

3.5 mA

Housing version

Metal, corrosion resistant

Indication

Green LED (U_output > 21.6 V DC), Yellow LED (l_output > 90 % I_Rated typ. ), red LED (overload, overtemperature, short-circuit, U_output <20.4 V DC)

MTBF

Max. perm. air humidity (operational)

5 %…95 % RH

Mounting position, installation notice

on terminal rail TS 35

Power factor (approx.)

> 0.98…230 V AC / > 0.98…115 V AC

Power loss, idling

8 W

Power loss, nominal load

85 W

Protection against over-heating

Yes

Protection against reverse voltages from the load

30…35 V DC

Protection degree

IP20

Short-circuit protection

Yes

Surge voltage category

II

Interference immunity test acc. to	EN 61000-4-2 (ESD), EN 61000-4-3 (RS), EN 61000-4-4 (burst), EN 61000-4-5 (surge), EN 61000-4-6 (conducted), EN61000-4-8 (Fields), EN61000-4-11 (Dips)
Limiting of mains voltage harmonic currents	According to EN 61000-3-2
Noise emission in accordance with EN55032	Class B
Shock resistance IEC 60068-2-27	15 g In all directions
Vibration resistance IEC 60068-2-6	1 g according to EN 50178

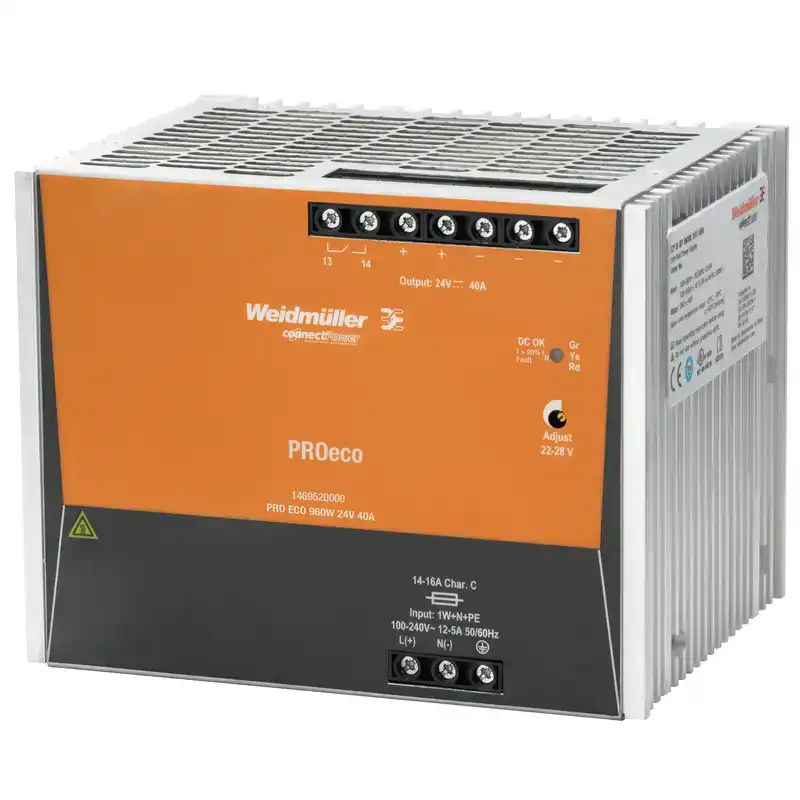

PRO ECO 960W 24V 40A
