Weidmüller

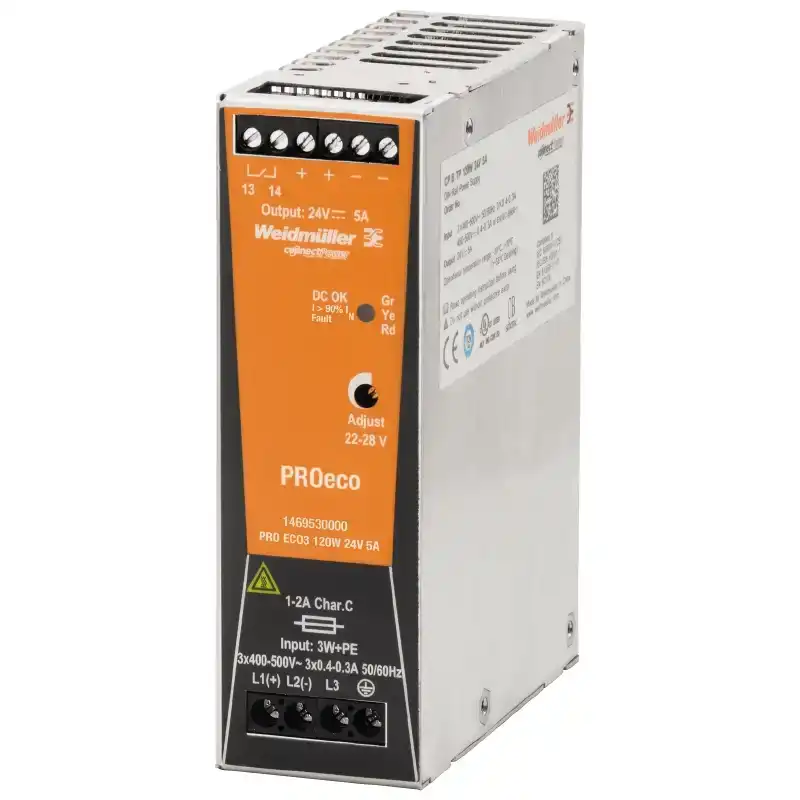

PRO ECO3 120W 24V 5A

Name: PRO ECO3 120W 24V 5A
Brand: Weidmüller
SKU: 1469530000
Price: 4797.88 TRY
Availability: OutOfStock

Ürün Kodu : 1469530000

%59

indirim

9.751,80 TL

3.998,24 ₺ / 91,84 € + KDV

3 ay içinde kargoda

Whatsapp İle Sipariş Ver

Ürün Açıklaması

Ödeme Seçenekleri

Ürün Yorumları

Açıklamalar

General ordering data

Version	Power supply, switch-mode power supply unit, 24 V
Order No.	1469530000
Type	PRO ECO3 120W 24V 5A
GTIN (EAN)	4050118275735
Qty.	1 pc(s).

Dimensions and weights

Depth	100 mm
Depth (inches)	3.937 inch
Height	125 mm
Height (inches)	4.921 inch
Width	40 mm
Width (inches)	1.575 inch
Net weight	677 g

Temperatures

Storage temperature	-40 °C...85 °C
Operating temperature	-25 °C...70 °C

Environmental Product Compliance

RoHS Compliance Status	Compliant with exemption
RoHS Exemption (if applicable/known)	7a, 7cI
REACH SVHC	Lead 7439-92-1
SCIP	6d8cdf22-8230-4af8-86c8-3558c716666d

Input

AC input voltage range

3 x 320...3 x 575 V AC / 2 x 360...2 x 575 V AC

Connection system

Screw connection

Current consumption in relation to the input voltage

Voltage type	3-phase AC
Input voltage	400 V
Input current	0.4 A

Voltage type	3-phase AC
Input voltage	500 V
Input current	0.3 A

Voltage type	DC
Input voltage	800 V
Input current	0.2 A

Voltage type	DC
Input voltage	450 V
Input current	0.4 A

DC input voltage range

450...800 V DC

Frequency range AC

47...63 Hz

Input frequency

47...63 Hz

Input fuse (internal)

Yes

Inrush current

max. 40 A

Nominal power consumption

137.9 VA

Rated input voltage

3x 400...3x 500 V AC (wide-range input)

Recommended back-up fuse

2 A / DI, safety fuse
2...3 A, Char. C, circuit breaker

Surge protection

Varistor

Output

Capacitive load	unrestricted
Connection system	Screw connection
Continuous output current @ U_Nominal	5 A @ 55 °C, 3,75 A @ 70 °C
Nominal output current for U_nom	5 A at 55 °C
Output power	120 W
Output voltage, max.	28 V
Output voltage, min.	22 V
Output voltage, note	(adjustable via potentiometer)
Overload protection	Yes
Parallel connection option	yes, max. 5
Protection against inverse voltage	Yes
Ramp-up time	≤ 100 ms
Rated output voltage	24 V DC ± 1 %
Residual ripple, breaking spikes	<50 mV_PP @ 24 V DC, I_N

General data

AC failure bridging time @ I_nom

> 40 ms @ 3 x 500 V AC / > 20 ms @ 3 x 400 V AC

Degree of efficiency

87 %

Earth leakage current, max.

3.5 mA

Housing version

Metal, corrosion resistant

Indication

Green LED (U_output > 21.6 V DC), Yellow LED (l_output > 90 % I_Rated typ. ), red LED (overload, overtemperature, short-circuit, U_output <20.4 V DC)

MTBF

According to Standard	SN 29500
Operating time (hours), min.	2,500,000 h
Ambient temperature	25 °C
Input voltage	400 V
Output power	120 W
Duty cycle	100 %

According to Standard	SN 29500
Operating time (hours), min.	1,100,000 h
Ambient temperature	40 °C
Input voltage	400 V
Output power	120 W
Duty cycle	100 %

Max. perm. air humidity (operational)

5 %…95 % RH

Mounting position, installation notice

on terminal rail TS 35

Power factor (approx.)

> 0.55 @ 3 x 500 V AC / > 0.65 @ 3 x 400 V AC

Power loss, idling

6 W

Power loss, nominal load

17 W

Protection against over-heating

Yes

Protection against reverse voltages from the load

30…35 V DC

Protection degree

IP20

Short-circuit protection

Yes

Surge voltage category

EMC / shock / vibration

Interference immunity test acc. to	EN 61000-4-2 (ESD), EN 61000-4-3 (RS), EN 61000-4-4 (burst), EN 61000-4-5 (surge), EN 61000-4-6 (conducted), EN61000-4-8 (Fields), EN61000-4-11 (Dips)
Limiting of mains voltage harmonic currents	According to EN 61000-3-2
Noise emission in accordance with EN55032	Class B
Shock resistance IEC 60068-2-27	15 g In all directions
Vibration resistance IEC 60068-2-6	1 g according to EN 50178
