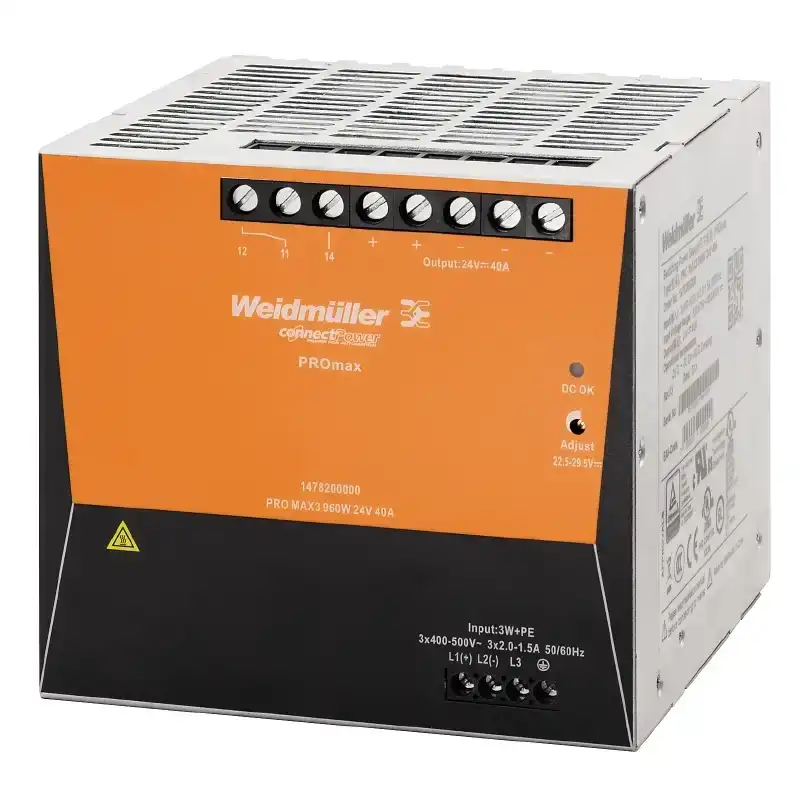

PRO MAX3 960W 24V 40A - 1

PRO MAX3 960W 24V 40A

Ürün Kodu : 1478200000
%59
indirim
48.323,63 TL
19.812,69 ₺ / 455,10 € + KDV
3 ay içinde kargoda
kargo bedava
güvenli alışveriş
vade farksız taksit
ücretsiz iade
Açıklamalar
General ordering data
Version Power supply, switch-mode power supply unit, 24 V
Order No. 1478200000
Type PRO MAX3 960W 24V 40A
GTIN (EAN) 4050118286076
Qty. 1 pc(s).
Dimensions and weights
Depth 150 mm
Depth (inches) 5.905 inch
Height 130 mm
Height (inches) 5.118 inch
Width 140 mm
Width (inches) 5.512 inch
Net weight 3,400 g
Temperatures
Storage temperature -40 °C...85 °C
Operating temperature -25 °C...70 °C
Humidity at operating temperature 5...95 %, no condensation
Environmental Product Compliance
RoHS Compliance Status Compliant with exemption
RoHS Exemption (if applicable/known) 7a, 7cI
REACH SVHC Lead 7439-92-1
SCIP 6d8cdf22-8230-4af8-86c8-3558c716666d
Rated data UL
Certificate No. (cURus) E255651
Input
AC input voltage range 3 x 320...3 x 575 V AC / 2 x 360...2 x 575 V AC
Connection system Screw connection
Current consumption in relation to the input voltage
Voltage type 3-phase AC
Input voltage 400 V
Input current 1.6 A
Voltage type 3-phase AC
Input voltage 500 V
Input current 1.3 A
Voltage type DC
Input voltage 800 V
Input current 1.4 A
Voltage type DC
Input voltage 450 V
Input current 2.4 A
DC input voltage range 450...800 V DC
Frequency range AC 45…65 Hz
Input fuse (internal) Yes
Inrush current max. 25 A
Nominal power consumption 1,027 VA
Power factor
Power factor typical 0.75
Input voltage 400 V
Ambient temperature 25 °C
Output power 960 W
Rated input voltage 3x 400...3x 500 V AC (wide-range input)
Recommended back-up fuse 6...8 A, char. C circuit breaker
Surge protection Varistor
Output
Connection system Screw connection
Continuous output current @ UNominal 48 A @ 45°C, 30 A @ 70°C
Nominal output current for Unom 40 A @ 60 °C
Output power 960 W
Output voltage, max. 29.5 V
Output voltage, min. 22.5 V
Output voltage, note (adjustable via potentiometer)
Parallel connection option yes, max. 3
Protection against inverse voltage Yes
Rated output voltage 24 V DC ± 1 %
Residual ripple, breaking spikes <50 mVss @ UNenn, Full Load
General data
AC failure bridging time @ Inom min. 20 ms
Current limiting > 120% IN
Degree of efficiency 93.5%
Derating > 60°C / 75% @ 70°C
Earth leakage current, max. 3.5 mA
Housing version Metal, corrosion resistant
MTBF
According to Standard SN 29500
Operating time (hours), min. 642,000 h
Ambient temperature 25 °C
Input voltage 400 V
Output power 960 W
Duty cycle 100 %
Mounting position, installation notice Horizontal on TS35 mounting rail. 50 mm of clearance at top & bottom for air circ. Can mount side by side with no space in between.
Power loss, idling 9 W
Power loss, nominal load 66.7 W
Protection against reverse voltages from the load 30…35 V DC
Protection degree IP20
Short-circuit protection Yes
Start-up ≥ -40 °C
Status indication LED red/green and relay (≥21.6 V DC LED green, relay on/ ≤20.6 LED red, relay off)
Surge voltage category III
