WS 12/5 MC NE WS - 1
Açıklamalar
General ordering data

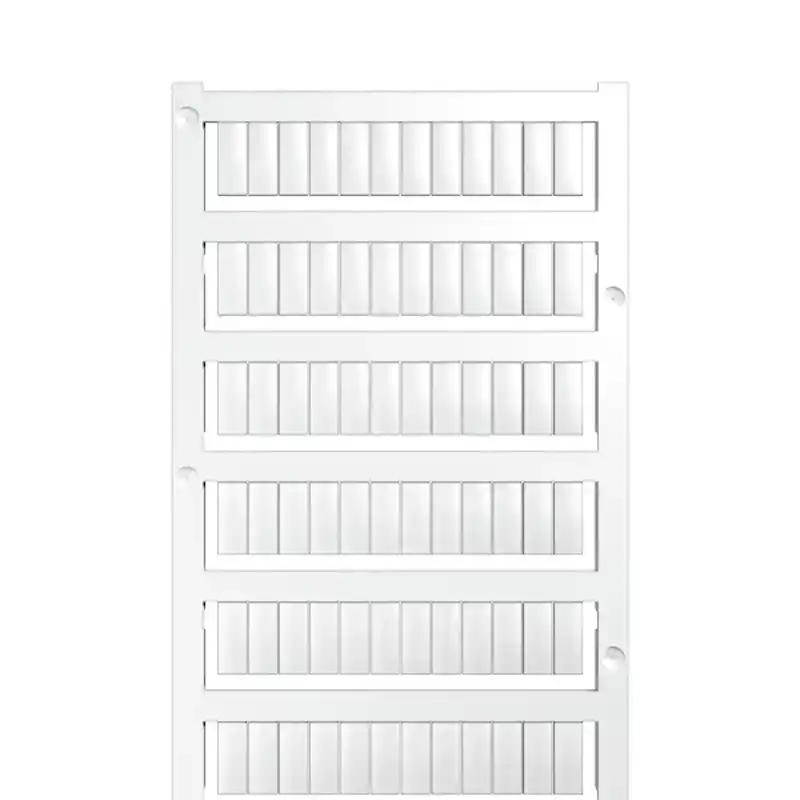

Version WS, Terminal marker, 12 x 5 mm, Pitch in mm (P): 5.00 Weidmueller, Allen-Bradley, white
Order No. 1609860000
Type WS 12/5 MC NE WS
GTIN (EAN) 4008190203481
Qty. 720 pc(s).
Dimensions and weights
Height 12 mm
Height (inches) 0.472 inch
Width 5 mm
Width (inches) 0.197 inch
Net weight 0.141 g
Temperatures
Operating temperature range -40...100 °C
Continuous operating temp., min. -50 °C
Environmental Product Compliance
RoHS Compliance Status Compliant without exemption
REACH SVHC No SVHC above 0.1 wt%
Product Carbon Footprint
Cradle to gate 0.949 kg CO2 eq.
General data
Application/manufacturer Weidmueller, Allen-Bradley
Colour white
Halogen No
Material Polyamide 66
Material colour according to resistance code
Number of markers per combination 1 MultiCard = Terminal marker
Number of markers per packaging unit
Form of supply MultiCard
Operating temperature range -40...100 °C
Operating temperature range, max. 100 °C
Operating temperature range, min. -40 °C
Printed characters neutral
UL 94 flammability rating V-2
Width 5 mm
compatible printer 2715590000
2438520000
2438510000
Connector markers
Pitch in mm (P) 5 mm
DownloadsClassifications
ETIM 6.0 EC000761
ETIM 7.0 EC000761
ETIM 8.0 EC000761
ETIM 9.0 EC000761
ECLASS 9.0 27-14-11-37
ECLASS 9.1 27-14-11-37
ECLASS 10.0 27-14-11-37
ECLASS 11.0 27-28-11-01
ECLASS 12.0 27-28-11-01
ECLASS 13.0 27-28-11-01
ECLASS 14.0 27-28-11-01
