General ordering data

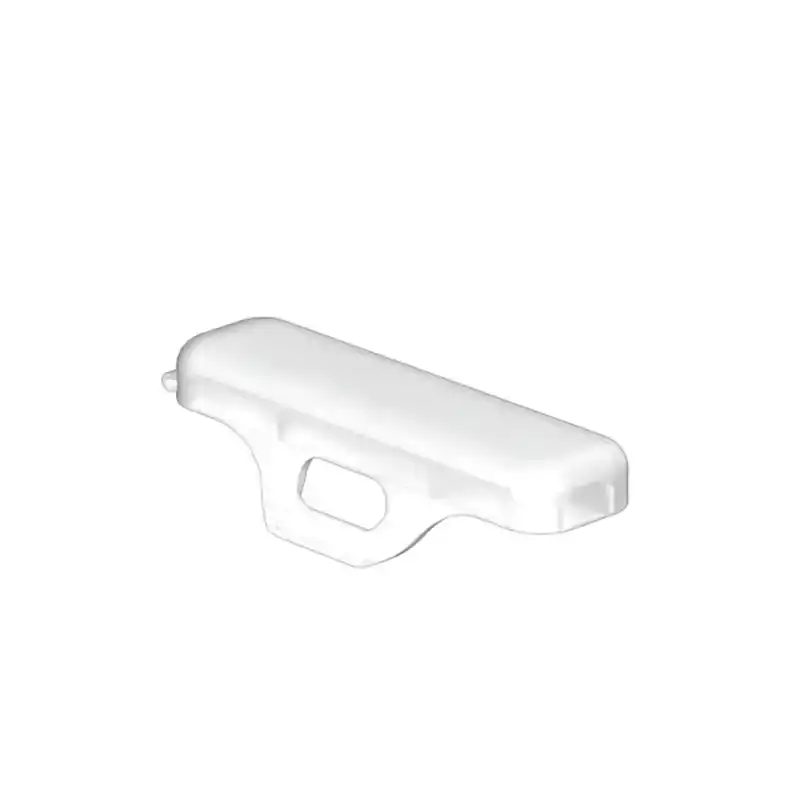

| Version | WKM, Conductor and cable markers, 7 - 115 mm, 30 x 8 mm, Wire and cable markers, Transparent |
| Order No. | 1631910000 |
| Type | WKM 8/30 |
| GTIN (EAN) | 4008190206666 |
| Qty. | 50 pc(s). |
Dimensions and weights
| Depth | 3.5 mm |
| Depth (inches) | 0.138 inch |
| Height | 30 mm |
| Height (inches) | 1.181 inch |
| Width | 8 mm |
| Width (inches) | 0.315 inch |
| Net weight | 0.657 g |
Temperatures
| Operating temperature range | -40...80 °C |
Environmental Product Compliance
| RoHS Compliance Status | Compliant without exemption |
| REACH SVHC | No SVHC above 0.1 wt% |
| Product Carbon Footprint | | Cradle to gate | 0.011 kg CO2 eq. | | |
General data
| Application/manufacturer | Wire and cable markers |
| Colour | Transparent |
| Material | Polypropylene |
| Number of markers per combination | 1 MultiCard = Conductor and cable markers |
| Number of markers per packaging unit | | |
| Operating temperature range | -40...80 °C |
| Operating temperature range, max. | 80 °C |
| Operating temperature range, min. | -40 °C |
| Type of printing | neutral |
| UL 94 flammability rating | HB |
| Width | 8 mm |
Conductor and cable markers
| Conductor O.D. | 7 - 115 mm |
| Conductor O.D., max. | 115 mm |
| Conductor O.D., min. | 7 mm |
| Conductor cross-section, max. | 150 mm² |
| Conductor cross-section, min. | 16 mm² |
| Cross-section for connected wire | 16 - 150 mm² |
Important note
| Product information | For cable ties with a width up to 7.7 mm |
