LM MT300 15/6 GE - 1
Açıklamalar
General ordering data

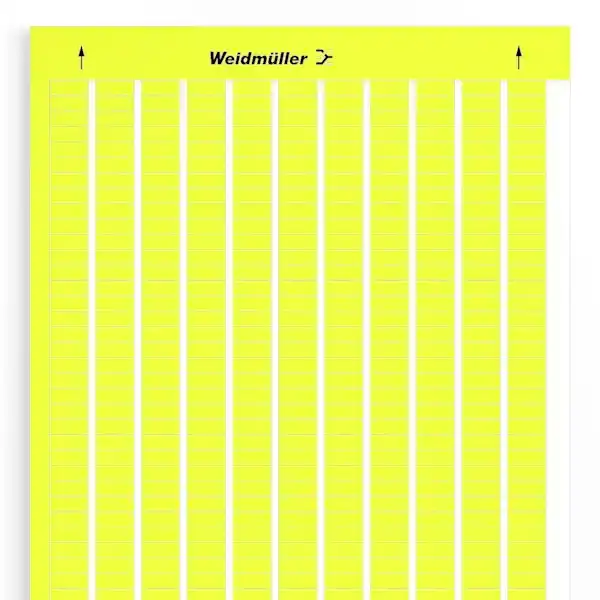

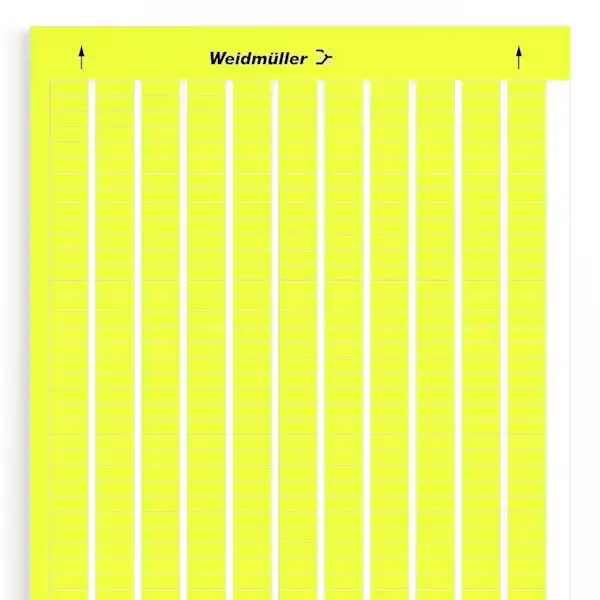

Version LaserMark, Device markers, 6 x 15.2 mm, yellow
Order No. 1686361687
Type LM MT300 15/6 GE
GTIN (EAN) 4008190493851
Qty. 10 pc(s).
Dimensions and weights
Depth 0.08 mm
Depth (inches) 0.003 inch
Height 6 mm
Height (inches) 0.236 inch
Width 15.2 mm
Width (inches) 0.598 inch
Net weight 11.6 g
Temperatures
Operating temperature range -40...150 °C
Environmental Product Compliance
RoHS Compliance Status Compliant without exemption
REACH SVHC No SVHC above 0.1 wt%
General data
Adhesive Acrylate adhesive
Approval acc. to UL 969 Yes
Colour yellow
Halogen No
Material Polyester, PVC-free
Material colour according to resistance code
Number of markers per combination 1 Label sheet = 484 Device markers
Number of markers per packaging unit
Number of markers per combination 484
Form of supply Label sheet
Number of combinations per packaging unit 10
Number of markers per packaging unit 4,840
Number per sheet 484
Operating temperature range -40...150 °C
Operating temperature range, max. 150 °C
Operating temperature range, min. -40 °C
Printing method Laser print
UL 94 flammability rating HB
Version Self-adhesive
Width 15.2 mm
Device markers
Halogen No
Downloads
Engineering Data
Eplan Data Portal Eplan data
CADENAS eCATALOG CAX data
Catalogues Catalogues in PDF-format
Classifications
ETIM 6.0 EC001288
ETIM 7.0 EC001288
ETIM 8.0 EC001288
ETIM 9.0 EC001288
ECLASS 9.0 27-40-06-29
ECLASS 9.1 27-40-06-29
ECLASS 10.0 27-40-06-29
ECLASS 11.0 27-28-11-04
ECLASS 12.0 27-28-11-04
ECLASS 13.0 27-28-11-04
ECLASS 14.0 27-28-11-04
