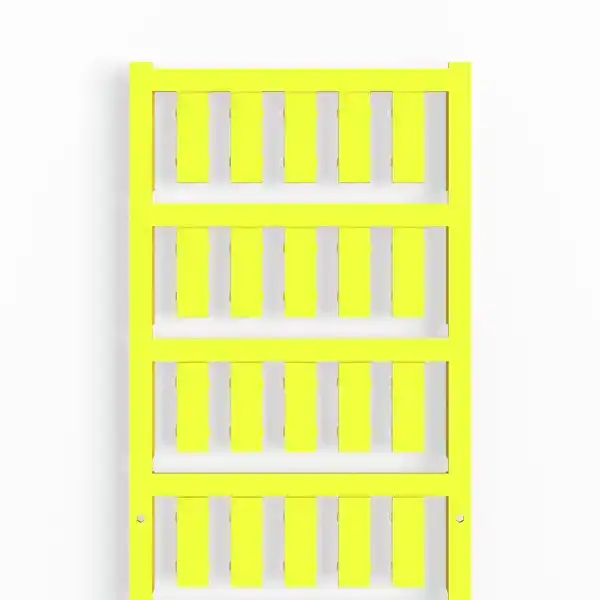

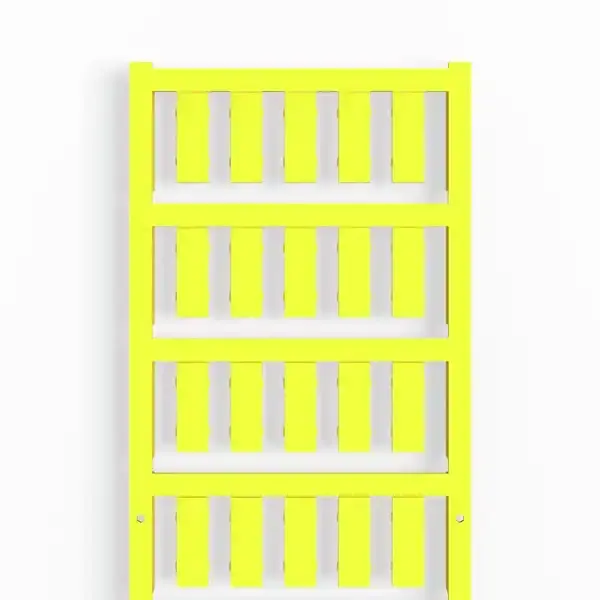

ESG 7/20 SIRIUS MC NE GE - 1
Açıklamalar
General ordering data
Version ESG, Device markers x 20 mm, PA 66, Colour: yellow, pluggable
Order No. 1736181687
Type ESG 7/20 SIRIUS MC NE GE
GTIN (EAN) 4032248208265
Qty. 200 pc(s).
Dimensions and weights
Depth 0.8 mm
Depth (inches) 0.031 inch
Height 7 mm
Height (inches) 0.276 inch
Width 20 mm
Width (inches) 0.787 inch
Net weight 0.51 g
Temperatures
Operating temperature range -40...100 °C
Environmental Product Compliance
RoHS Compliance Status Compliant without exemption
REACH SVHC No SVHC above 0.1 wt%
General data
Application/manufacturer Siemens Sirius 3R
Colour yellow
Halogen No
Material PA 66
Material colour according to resistance code
Number of markers per combination 1 MultiCard = Device markers
Number of markers per packaging unit
Form of supply MultiCard
Number per sheet 40
Operating temperature range -40...100 °C
Operating temperature range, max. 100 °C
Operating temperature range, min. -40 °C
UL 94 flammability rating V-2
Version pluggable
Width 20 mm
compatible printer 2715590000
2438520000
2438510000
Device markers
Halogen No
Downloads
Engineering Data
Eplan Data Portal Eplan data
CADENAS eCATALOG CAX data
Product Change Notification
Catalogues Catalogues in PDF-format
Classifications
ETIM 6.0 EC001288
ETIM 7.0 EC001288
ETIM 8.0 EC001288
ETIM 9.0 EC001288
ECLASS 9.0 27-40-06-29
ECLASS 9.1 27-40-06-29
ECLASS 10.0 27-40-06-29
ECLASS 11.0 27-28-11-04
ECLASS 12.0 27-28-11-04
ECLASS 13.0 27-28-11-04
ECLASS 14.0 27-28-11-04
