SFC 1/12 MC NE WS - 1
Açıklamalar
General ordering data

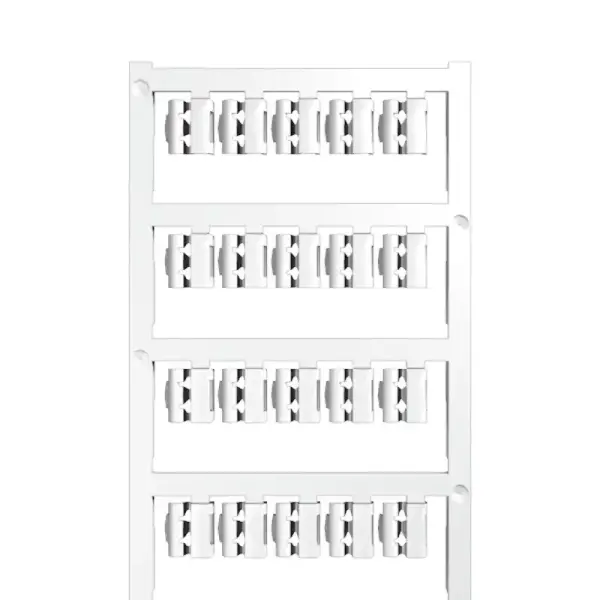

Version SlimFix Clip, Conductor and cable markers, 2 - 3.5 mm, 12 x 5.8 mm, white
Order No. 1747320001
Type SFC 1/12 MC NE WS
GTIN (EAN) 4008190995478
Qty. 200 pc(s).
Dimensions and weights
Depth 7 mm
Depth (inches) 0.276 inch
Height 12 mm
Height (inches) 0.472 inch
Width 5.8 mm
Width (inches) 0.228 inch
Net weight 0.48 g
Temperatures
Operating temperature range -40...100 °C
Environmental Product Compliance
RoHS Compliance Status Compliant without exemption
REACH SVHC No SVHC above 0.1 wt%
General data
Colour white
Halogen No
Material Polyamide 66
Material colour according to resistance code
Number of markers per combination 1 MultiCard = Conductor and cable markers
Number of markers per packaging unit
Form of supply MultiCard
Operating temperature range -40...100 °C
Operating temperature range, max. 100 °C
Operating temperature range, min. -40 °C
Recommended industries Machinery
Size of labelling field 12 x 4.1 mm
Type of printing neutral
UL 94 flammability rating V-2
Width 5.8 mm
compatible printer 2715590000
2438520000
2438510000
Conductor and cable markers
Conductor O.D. 2 - 3.5 mm
Conductor O.D., max. 3.5 mm
Conductor O.D., min. 2 mm
Conductor cross-section, max. 2.5 mm²
Conductor cross-section, min. 0.75 mm²
Cross-section for connected wire 0.75 - 2.5 mm²
Halogen No
DownloadsClassifications
ETIM 6.0 EC001530
ETIM 7.0 EC001530
ETIM 8.0 EC001530
ETIM 9.0 EC001530
ECLASS 9.0 27-40-04-01
ECLASS 9.1 27-40-04-01
ECLASS 10.0 27-40-04-01
ECLASS 11.0 27-28-11-02
ECLASS 12.0 27-28-11-02
ECLASS 13.0 27-28-11-02
ECLASS 14.0 27-28-11-02
