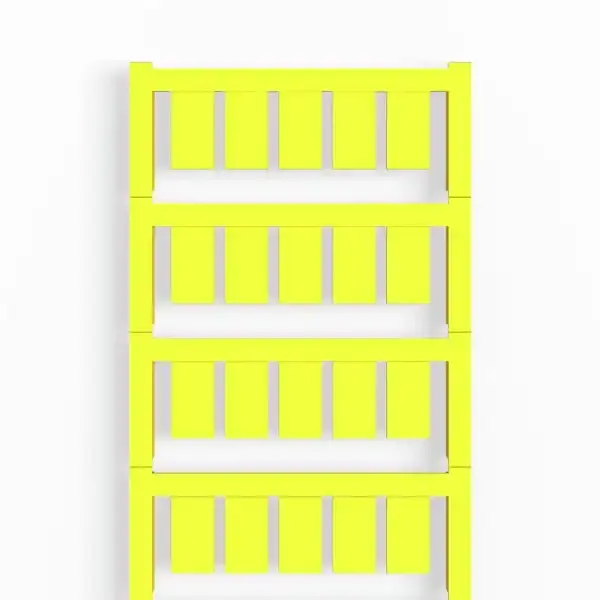

ESG 9/17 K MC NE GE - 1
Açıklamalar
General ordering data
Version ESG, Device markers x 17 mm, PA 66, Colour: yellow, Self-adhesive
Order No. 1753500000
Type ESG 9/17 K MC NE GE
GTIN (EAN) 4032248010738
Qty. 200 pc(s).
Dimensions and weights
Depth 0.8 mm
Depth (inches) 0.031 inch
Height 9 mm
Height (inches) 0.354 inch
Width 17 mm
Width (inches) 0.669 inch
Net weight 0.381 g
Temperatures
Operating temperature range -40...60 °C
Environmental Product Compliance
RoHS Compliance Status Compliant without exemption
REACH SVHC No SVHC above 0.1 wt%
General data
Adhesive Double-sided adhesive tape
Application/manufacturer Self-adhesive
Colour yellow
Halogen No
Material PA 66
Material colour according to resistance code
Number of markers per combination 1 MultiCard = Device markers
Number of markers per packaging unit
Form of supply MultiCard
Number per sheet 40
Operating temperature range -40...60 °C
Operating temperature range, max. 60 °C
Operating temperature range, min. -40 °C
UL 94 flammability rating V-2
Version Self-adhesive
Width 17 mm
compatible printer 2715590000
2438520000
2438510000
Device markers
Halogen No
Downloads
Engineering Data
Eplan Data Portal Eplan data
CADENAS eCATALOG CAX data
Product Change Notification
Catalogues Catalogues in PDF-format
Classifications
ETIM 6.0 EC001288
ETIM 7.0 EC001288
ETIM 8.0 EC001288
ETIM 9.0 EC001288
ECLASS 9.0 27-40-06-29
ECLASS 9.1 27-40-06-29
ECLASS 10.0 27-40-06-29
ECLASS 11.0 27-28-11-04
ECLASS 12.0 27-28-11-04
ECLASS 13.0 27-28-11-04
ECLASS 14.0 27-28-11-04
