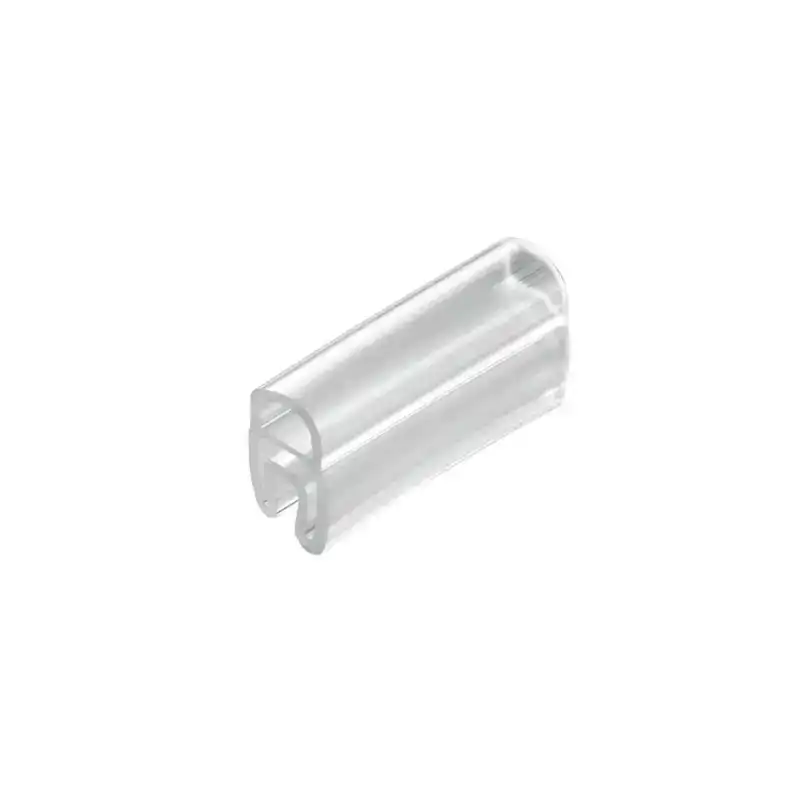

TM 204/15 V0 - 1
Açıklamalar
General ordering data
Version TM, Socket x 14 mm, PVC, Colour: Transparent, Conductor O.D.: 6 - 10 mm
Order No. 1806240000
Type TM 204/15 V0
GTIN (EAN) 4032248275755
Qty. 500 pc(s).
Dimensions and weights
Depth 14 mm
Depth (inches) 0.551 inch
Height 15 mm
Height (inches) 0.591 inch
Width 14 mm
Width (inches) 0.551 inch
Net weight 0.616 g
Temperatures
Operating temperature range -40...80 °C
Environmental Product Compliance
RoHS Compliance Status Compliant without exemption
REACH SVHC No SVHC above 0.1 wt%
General data
Colour Transparent
Material PVC
Operating temperature range -40...80 °C
Operating temperature range, max. 80 °C
Operating temperature range, min. -40 °C
Recommended industries Transportation, Machinery
Type of printing neutral
UL 94 flammability rating V-0
Width 14 mm
Conductor and cable markers
Conductor O.D. 6 - 10 mm
Conductor O.D., max. 10 mm
Conductor O.D., min. 6 mm
Conductor cross-section, max. 16 mm²
Conductor cross-section, min. 6 mm²
Cross-section for connected wire 6 - 16 mm²
Downloads
Engineering Data
Eplan Data Portal Eplan data
CADENAS eCATALOG CAX data
Product Change Notification
Catalogues Catalogues in PDF-format
Classifications
ETIM 6.0 EC001530
ETIM 7.0 EC001530
ETIM 8.0 EC001530
ETIM 9.0 EC001530
ECLASS 9.0 27-40-04-01
ECLASS 9.1 27-40-04-01
ECLASS 10.0 27-40-04-01
ECLASS 11.0 27-28-11-02
ECLASS 12.0 27-28-11-02
ECLASS 13.0 27-28-11-02
ECLASS 14.0 27-28-11-02
