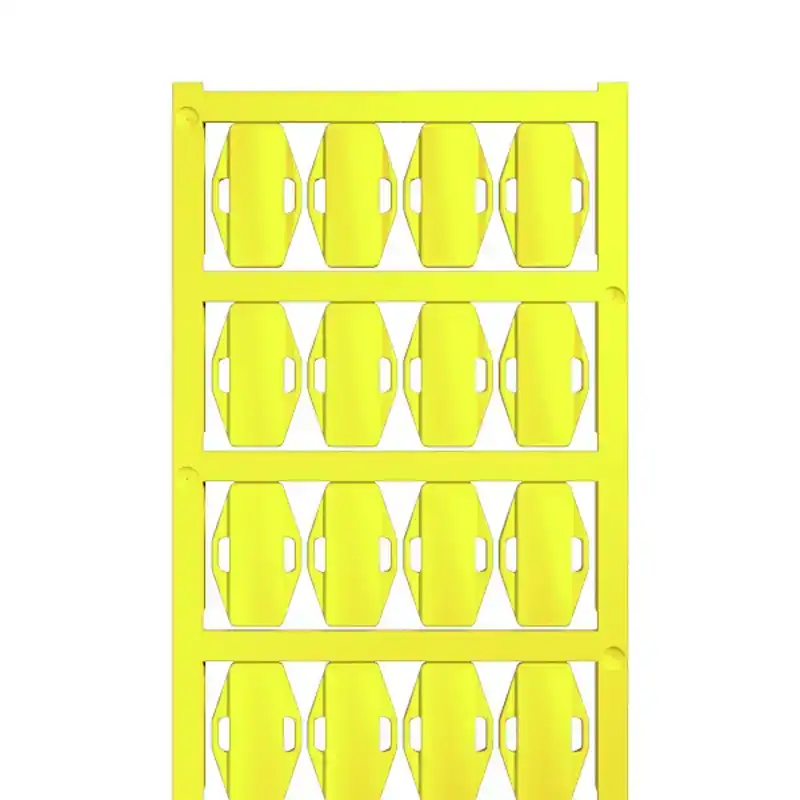

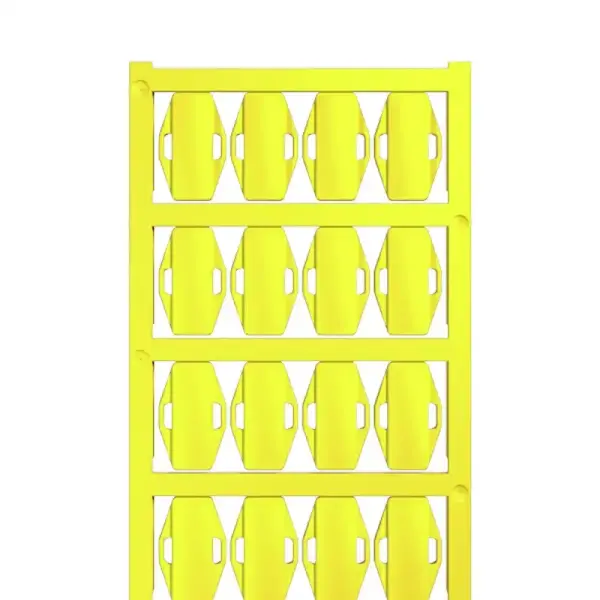

SFX 9/24 MC NE GE V2 - 1
Açıklamalar
General ordering data
Version SlimFix X, Conductor and cable markers, 7 - 40 mm, 24 x 15 mm, yellow
Order No. 1852460000
Type SFX 9/24 MC NE GE V2
GTIN (EAN) 4032248385430
Qty. 160 pc(s).
Dimensions and weights
Depth 0.8 mm
Depth (inches) 0.031 inch
Height 24 mm
Height (inches) 0.945 inch
Width 15 mm
Width (inches) 0.591 inch
Net weight 0.7 g
Temperatures
Operating temperature range -40...100 °C
Environmental Product Compliance
RoHS Compliance Status Compliant without exemption
REACH SVHC No SVHC above 0.1 wt%
General data
Colour yellow
Halogen No
Material Polyamide 66
Material colour according to resistance code
Number of markers per combination 1 MultiCard = Conductor and cable markers
Number of markers per packaging unit
Form of supply MultiCard
Operating temperature range -40...100 °C
Operating temperature range, max. 100 °C
Operating temperature range, min. -40 °C
Recommended industries Transportation, Machinery
Size of labelling field 23.9 x 9 mm
Type of printing neutral
UL 94 flammability rating V-2
Version Installation with cable ties
Width 15 mm
compatible printer 2715590000
2438520000
2438510000
Conductor and cable markers
Conductor O.D. 7 - 40 mm
Conductor O.D., max. 40 mm
Conductor O.D., min. 7 mm
Conductor cross-section, max. 500 mm²
Conductor cross-section, min. 16 mm²
Cross-section for connected wire 16 - 500 mm²
Halogen No
Downloads
Engineering Data
Eplan Data Portal Eplan data
CADENAS eCATALOG CAX data
Product Change Notification
Catalogues Catalogues in PDF-format
Classifications
ETIM 6.0 EC001530
ETIM 7.0 EC001530
ETIM 8.0 EC001530
ETIM 9.0 EC001530
ECLASS 9.0 27-40-04-01
ECLASS 9.1 27-40-04-01
ECLASS 10.0 27-40-04-01
ECLASS 11.0 27-28-11-02
ECLASS 12.0 27-28-11-02
ECLASS 13.0 27-28-11-02
ECLASS 14.0 27-28-11-02
