DEK 5/8 MC NE WS - 1

DEK 5/8 MC NE WS

Ürün Kodu : 1856740000
%59
indirim
6,14 TL
2,52 ₺ / 0,06 € + KDV
3 ay içinde kargoda
kargo bedava
güvenli alışveriş
vade farksız taksit
ücretsiz iade
Açıklamalar
General ordering data

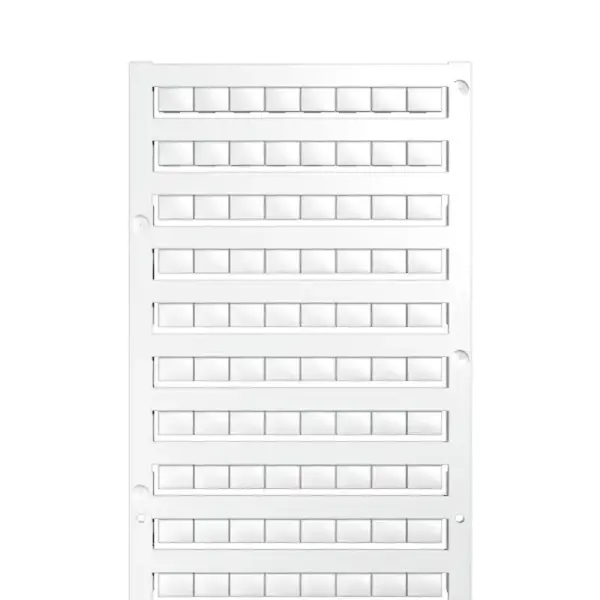

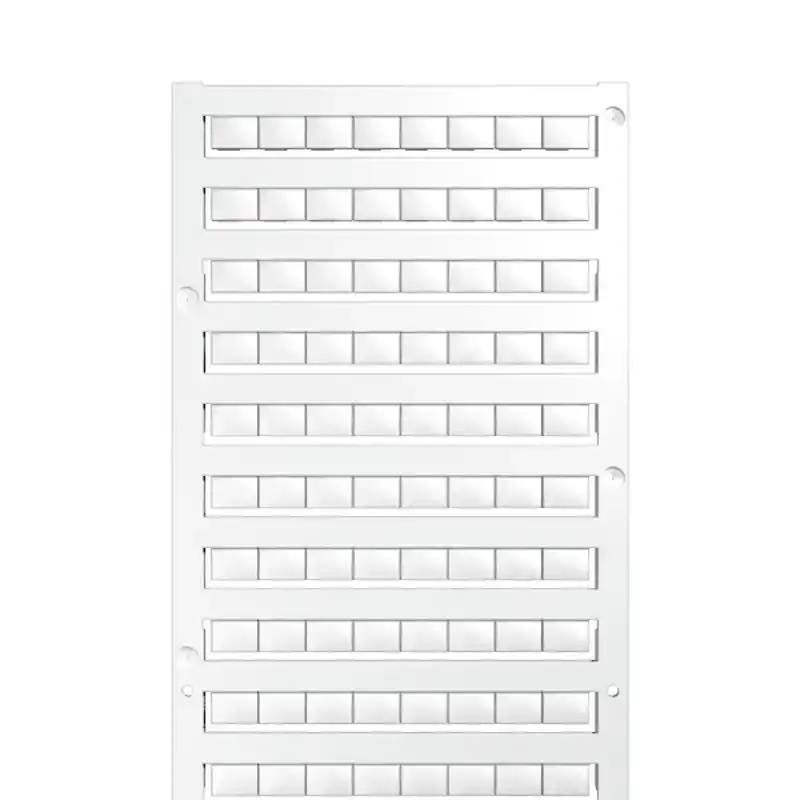

Version Dekafix, Terminal marker, 5 x 8 mm, Pitch in mm (P): 8.00 Weidmueller, white
Order No. 1856740000
Type DEK 5/8 MC NE WS
GTIN (EAN) 4032248400850
Qty. 800 pc(s).
Dimensions and weights
Height 5 mm
Height (inches) 0.197 inch
Width 8 mm
Width (inches) 0.315 inch
Net weight 0.15 g
Temperatures
Operating temperature range -40...100 °C
Environmental Product Compliance
RoHS Compliance Status Compliant without exemption
REACH SVHC No SVHC above 0.1 wt%
General data
Application/manufacturer Weidmueller
Colour white
Halogen No
Material Polyamide 66
Material colour according to resistance code
Number of markers per combination 1 MultiCard = Terminal marker
Number of markers per packaging unit
Form of supply MultiCard
Operating temperature range -40...100 °C
Operating temperature range, max. 100 °C
Operating temperature range, min. -40 °C
Orientation of print horizontal and vertical
Printed characters neutral
UL 94 flammability rating V-2
Width 8 mm
compatible printer 2715590000
2438520000
2438510000
Connector markers
Pitch in mm (P) 8 mm
DownloadsClassifications
ETIM 6.0 EC000761
ETIM 7.0 EC000761
ETIM 8.0 EC000761
ETIM 9.0 EC000761
ECLASS 9.0 27-14-11-37
ECLASS 9.1 27-14-11-37
ECLASS 10.0 27-14-11-37
ECLASS 11.0 27-28-11-01
ECLASS 12.0 27-28-11-01
ECLASS 13.0 27-28-11-01
ECLASS 14.0 27-28-11-01
