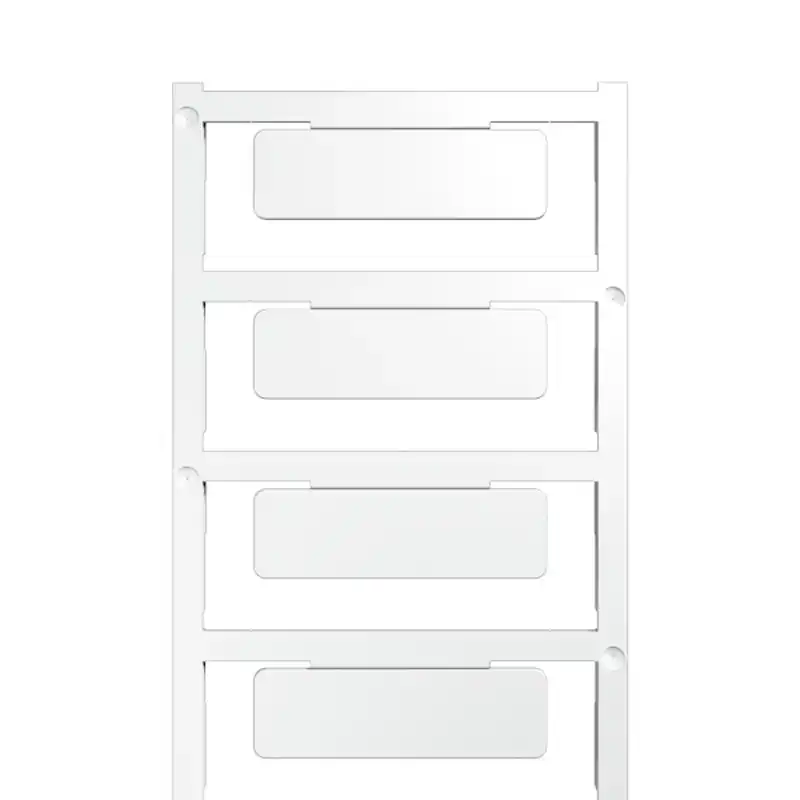

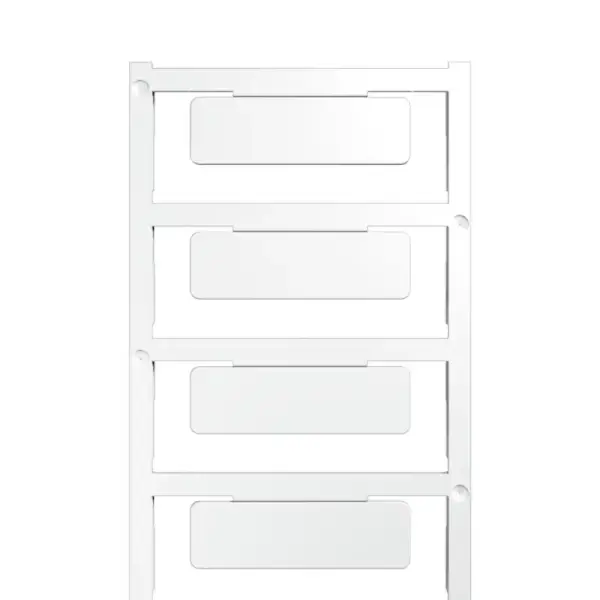

CC 15/49 K MC NE WS - 1
Açıklamalar
General ordering data
Version ClipCard, Device markers, 15 x 49 mm, white
Order No. 1877220000
Type CC 15/49 K MC NE WS
GTIN (EAN) 4032248467785
Qty. 40 pc(s).
Dimensions and weights
Depth 1.2 mm
Depth (inches) 0.047 inch
Height 15 mm
Height (inches) 0.591 inch
Width 49 mm
Width (inches) 1.929 inch
Net weight 2.69 g
Temperatures
Operating temperature range -40...60 °C
Environmental Product Compliance
RoHS Compliance Status Compliant without exemption
REACH SVHC No SVHC above 0.1 wt%
General data
Adhesive Double-sided adhesive tape
Colour white
Halogen No
Material Polyamide 66
Material colour according to resistance code
Number of markers per combination 1 MultiCard = Device markers
Number of markers per packaging unit
Form of supply MultiCard
Operating temperature range -40...60 °C
Operating temperature range, max. 60 °C
Operating temperature range, min. -40 °C
Recommended industries Machinery
UL 94 flammability rating V-2
Version Self-adhesive
Width 49 mm
compatible printer 2715590000
2438520000
2438510000
Device markers
Halogen No
DownloadsClassifications
ETIM 6.0 EC001288
ETIM 7.0 EC001288
ETIM 8.0 EC001288
ETIM 9.0 EC001288
ECLASS 9.0 27-40-06-29
ECLASS 9.1 27-40-06-29
ECLASS 10.0 27-40-06-29
ECLASS 11.0 27-28-11-04
ECLASS 12.0 27-28-11-04
ECLASS 13.0 27-28-11-04
ECLASS 14.0 27-28-11-04
