General ordering data

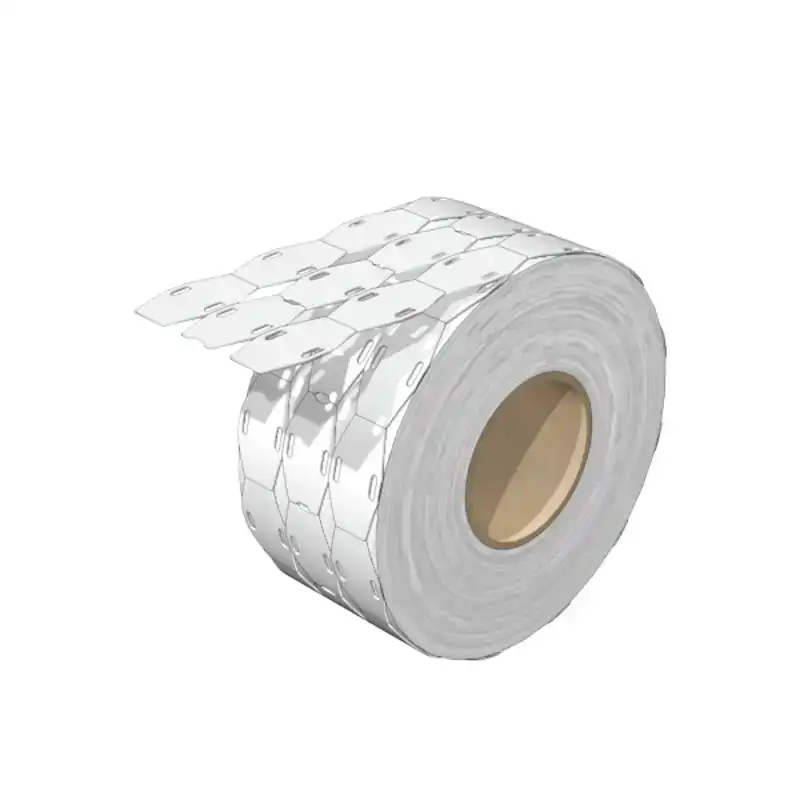

| Version | SlimFix, Conductor and cable markers, 7 - , 26 x 15 mm, white |
| Order No. | 2005320000 |
| Type | SFX 9/24 MM WS |
| GTIN (EAN) | 4050118390254 |
| Qty. | 1,000 pc(s). |
Dimensions and weights
| Depth | 0.6 mm |
| Depth (inches) | 0.024 inch |
| Height | 26 mm |
| Height (inches) | 1.024 inch |
| Width | 15 mm |
| Width (inches) | 0.591 inch |
| Net weight | 0.255 g |
Temperatures
| Operating temperature range | -40...90 °C |
Environmental Product Compliance
| RoHS Compliance Status | Compliant without exemption |
| REACH SVHC | No SVHC above 0.1 wt% |
General data
| Colour | white |
| Halogen | No |
| Material | Polyurethane |
| Number per roll | 1,000 |
| Operating temperature range | -40...90 °C |
| Operating temperature range, max. | 90 °C |
| Operating temperature range, min. | -40 °C |
| Size of labelling field | 23.5 x 9 mm |
| UL 94 flammability rating | HB |
| Version | halogen-free |
| Width | 15 mm |
| compatible printer | 2599430000 2599440000 |
Conductor and cable markers
| Cable tie passage | Flat |
| Conductor O.D. | 7 - |
| Conductor O.D., min. | 7 mm |
| Halogen | No |
| Suitable cable tie | Plastic |
| Text field height | 23.5 mm |
| Text field width | 9 mm |
Downloads
Classifications
| ETIM 6.0 | EC001530 |
| ETIM 7.0 | EC001530 |
| ETIM 8.0 | EC001530 |
| ETIM 9.0 | EC001530 |
| ECLASS 9.0 | 27-40-04-01 |
| ECLASS 9.1 | 27-40-04-01 |
| ECLASS 10.0 | 27-40-04-01 |
| ECLASS 11.0 | 27-28-11-02 |
| ECLASS 12.0 | 27-28-11-02 |
| ECLASS 13.0 | 27-28-11-02 |
| ECLASS 14.0 | 27-28-11-02 |
