CC 15/27 MM GR - 1
Açıklamalar
General ordering data

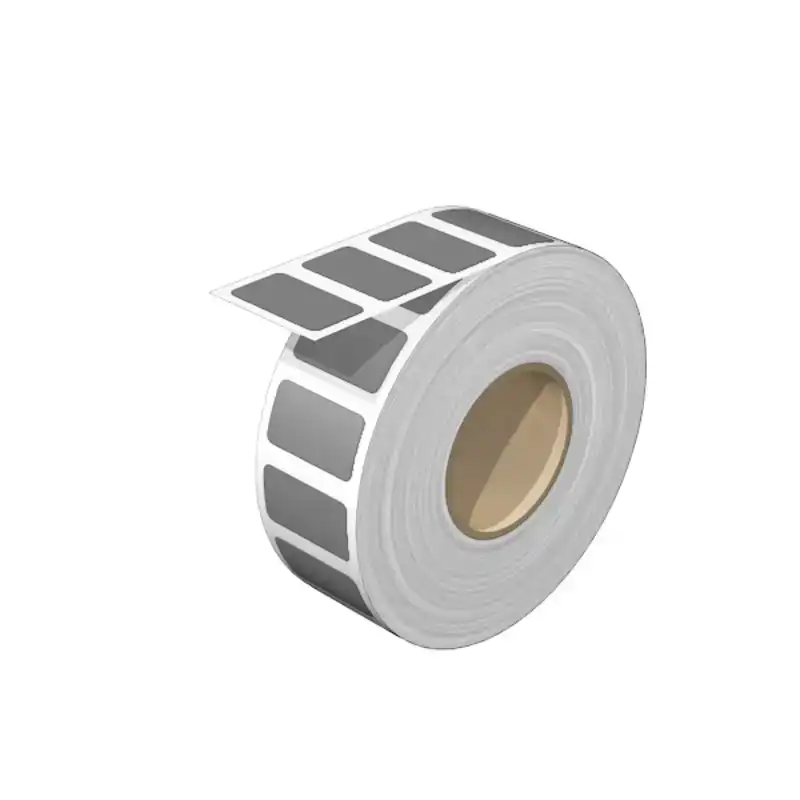

Version ClipCard, Device markers, 15 x 27 mm, grey
Order No. 2005660000
Type CC 15/27 MM GR
GTIN (EAN) 4050118390902
Qty. 450 pc(s).
Dimensions and weights
Depth 0.1 mm
Depth (inches) 0.004 inch
Height 15 mm
Height (inches) 0.591 inch
Width 27 mm
Width (inches) 1.063 inch
Net weight 0.147 g
Temperatures
Operating temperature range -40...120 °C
Environmental Product Compliance
RoHS Compliance Status Compliant without exemption
REACH SVHC No SVHC above 0.1 wt%
General data
Adhesive Acrylate adhesive
Approval acc. to UL 969 Yes
Colour grey
Halogen No
Material Polyester
Number per roll 450
Operating temperature range -40...120 °C
Operating temperature range, max. 120 °C
Operating temperature range, min. -40 °C
UL 94 flammability rating V-0
Version Self-adhesive, halogen-free
Width 27 mm
compatible printer 2599430000
2599440000
Device markers
Halogen No
Downloads
Engineering Data
Eplan Data Portal Eplan data
CADENAS eCATALOG CAX data
Catalogues Catalogues in PDF-format
Classifications
ETIM 6.0 EC001288
ETIM 7.0 EC001288
ETIM 8.0 EC001288
ETIM 9.0 EC001288
ECLASS 9.0 27-40-06-29
ECLASS 9.1 27-40-06-29
ECLASS 10.0 27-40-06-29
ECLASS 11.0 27-28-11-04
ECLASS 12.0 27-28-11-04
ECLASS 13.0 27-28-11-04
ECLASS 14.0 27-28-11-04
