EL 27 MM WS 30M - 1
Açıklamalar
General ordering data

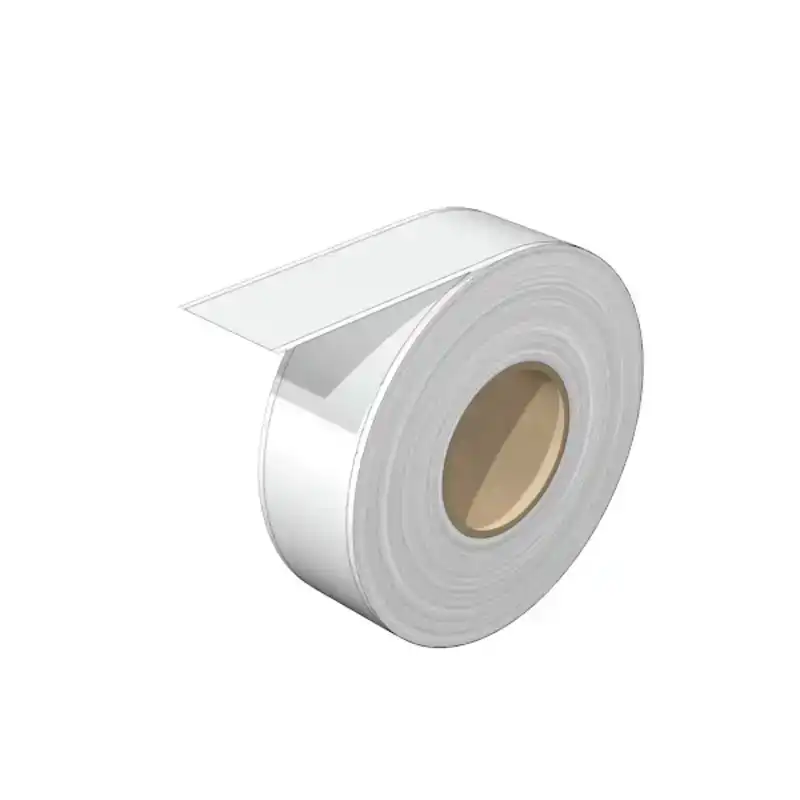

Version THM, Device markers, 27 x , white
Order No. 2006630000
Type EL 27 MM WS 30M
GTIN (EAN) 4050118391374
Qty. 1 pc(s).
Dimensions and weights
Depth 0.1 mm
Depth (inches) 0.004 inch
Height 27 mm
Height (inches) 1.063 inch
Length 30,000 mm
Length (inches) 1,181.1 inch
Net weight 228 g
Temperatures
Operating temperature range -40...120 °C
Environmental Product Compliance
RoHS Compliance Status Compliant without exemption
REACH SVHC No SVHC above 0.1 wt%
General data
Adhesive Acrylate adhesive
Approval acc. to UL 969 Yes
Colour white
Halogen No
Length 30,000 mm
Material Polyester
Number per roll
Operating temperature range -40...120 °C
Operating temperature range, max. 120 °C
Operating temperature range, min. -40 °C
UL 94 flammability rating V-0
Version halogen-free, Self-adhesive
compatible printer 2599430000
2599440000
Device markers
Halogen No
Downloads
Eplan Data Portal Eplan data
Catalogues Catalogues in PDF-format
Classifications
ETIM 6.0 EC001288
ETIM 7.0 EC001288
ETIM 8.0 EC001288
ETIM 9.0 EC001288
ECLASS 9.0 27-40-06-29
ECLASS 9.1 27-40-06-29
ECLASS 10.0 27-40-06-29
ECLASS 11.0 27-28-11-04
ECLASS 12.0 27-28-11-04
ECLASS 13.0 27-28-11-04
ECLASS 14.0 27-28-11-04
