DEK 5/3.5 MM WS - 1
Açıklamalar
General ordering data

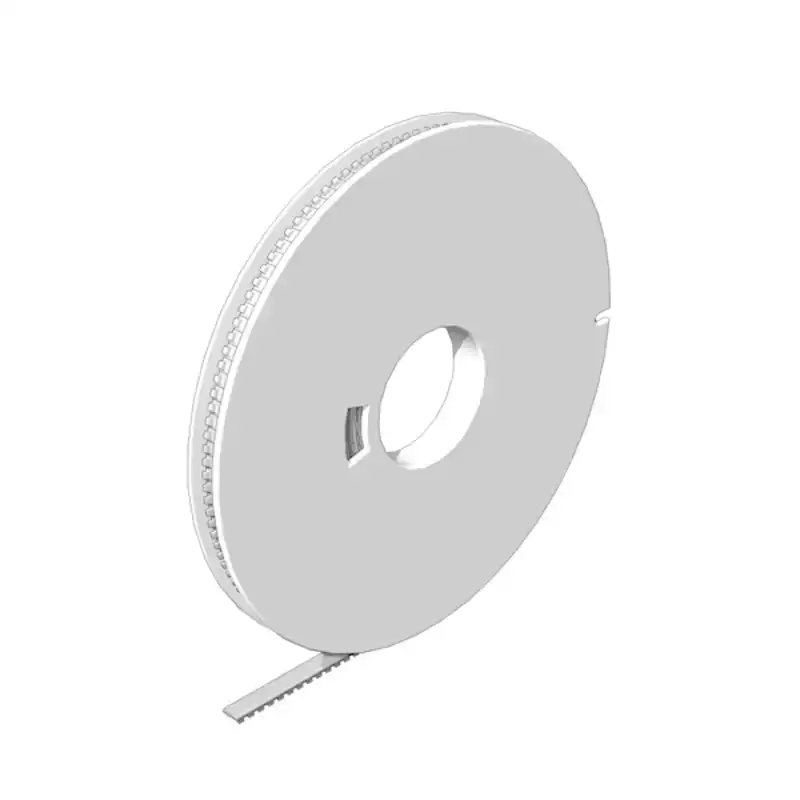

Version Dekafix, Terminal marker, 5 x 3.5 mm, Weidmueller, white
Order No. 2007100000
Type DEK 5/3.5 MM WS
GTIN (EAN) 4050118391992
Qty. 1,000 pc(s).
Dimensions and weights
Height 5 mm
Height (inches) 0.197 inch
Width 3.5 mm
Width (inches) 0.138 inch
Net weight 0.06 g
Temperatures
Operating temperature range -50...90 °C
Environmental Product Compliance
RoHS Compliance Status Compliant without exemption
REACH SVHC No SVHC above 0.1 wt%
General data
Application/manufacturer Weidmueller
Colour white
Halogen No
Material PC-ABS, TPU
Operating temperature range -50...90 °C
Operating temperature range, max. 90 °C
Operating temperature range, min. -50 °C
Orientation of print horizontal and vertical
Printed characters without
Size of labelling field 4.5 x 2.8 mm
UL 94 flammability rating V-2
Version halogen-free
Width 3.5 mm
compatible printer 2599430000
2599440000
Downloads
Engineering Data
Eplan Data Portal Eplan data
CADENAS eCATALOG CAX data
WSCAD Universe WSCAD data
Product Change Notification
Catalogues Catalogues in PDF-format
Brochures
Classifications
ETIM 6.0 EC000761
ETIM 7.0 EC000761
ETIM 8.0 EC000761
ETIM 9.0 EC000761
ECLASS 9.0 27-14-11-37
ECLASS 9.1 27-14-11-37
ECLASS 10.0 27-14-11-37
ECLASS 11.0 27-28-11-01
ECLASS 12.0 27-28-11-01
ECLASS 13.0 27-28-11-01
ECLASS 14.0 27-28-11-01
Approvals
ROHS Conform
