WS 12/6 MM WS - 1
Açıklamalar
General ordering data

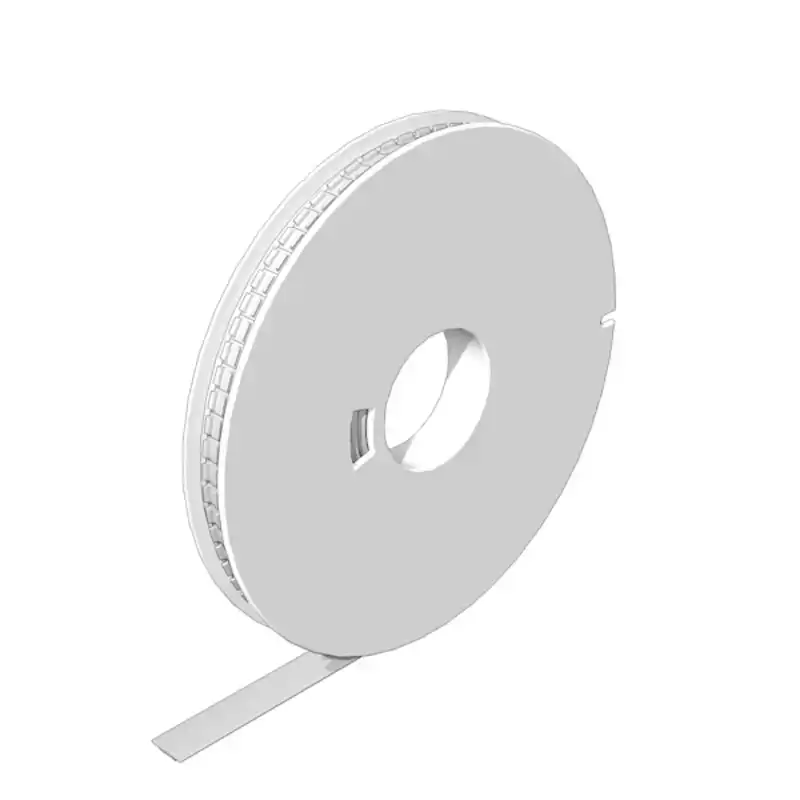

Version WS, Terminal marker, 12 x 6 mm, Weidmueller, white
Order No. 2007200000
Type WS 12/6 MM WS
GTIN (EAN) 4050118391886
Qty. 600 pc(s).
Dimensions and weights
Height 12 mm
Height (inches) 0.472 inch
Width 6 mm
Width (inches) 0.236 inch
Net weight 0.14 g
Temperatures
Operating temperature range -50...90 °C
Environmental Product Compliance
RoHS Compliance Status Compliant without exemption
REACH SVHC No SVHC above 0.1 wt%
General data
Application/manufacturer Weidmueller
Colour white
Halogen No
Material PC-ABS, TPU
Operating temperature range -50...90 °C
Operating temperature range, max. 90 °C
Operating temperature range, min. -50 °C
Printed characters neutral
Size of labelling field 10.5 x 5.3 mm
UL 94 flammability rating V-2
Version halogen-free
Width 6 mm
compatible printer 2599430000
2599440000
Downloads
Engineering Data
Eplan Data Portal Eplan data
CADENAS eCATALOG CAX data
Product Change Notification
Catalogues Catalogues in PDF-format
Classifications
ETIM 6.0 EC000761
ETIM 7.0 EC000761
ETIM 8.0 EC000761
ETIM 9.0 EC000761
ECLASS 9.0 27-14-11-37
ECLASS 9.1 27-14-11-37
ECLASS 10.0 27-14-11-37
ECLASS 11.0 27-28-11-01
ECLASS 12.0 27-28-11-01
ECLASS 13.0 27-28-11-01
ECLASS 14.0 27-28-11-01
Approvals
ROHS Conform
