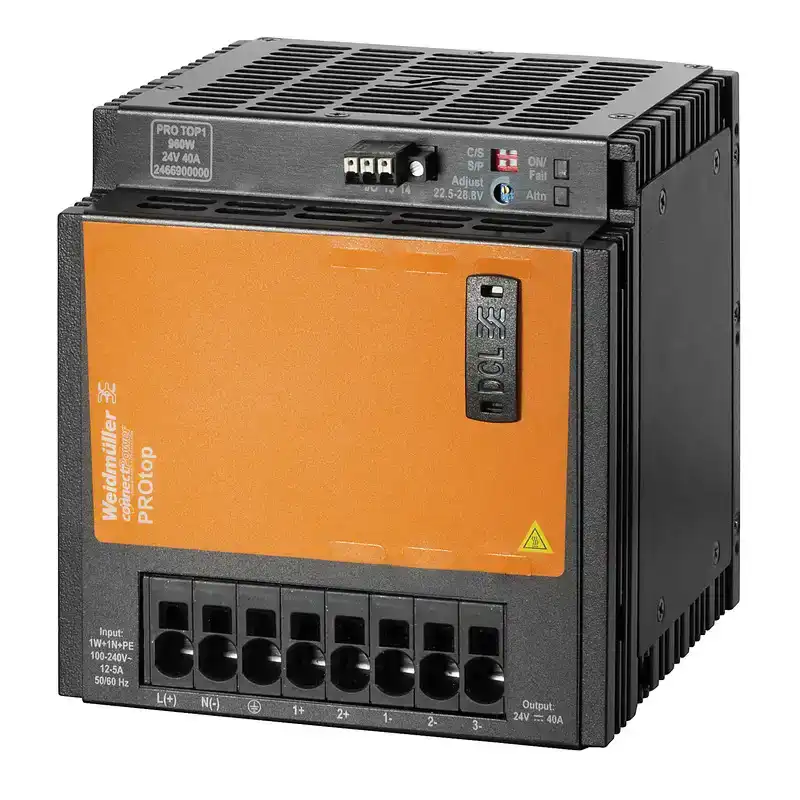

PRO TOP1 960W 24V 40A - 1

PRO TOP1 960W 24V 40A

Ürün Kodu : 2466900000
%59
indirim
55.071,52 TL
22.579,32 ₺ / 518,65 € + KDV
3 ay içinde kargoda
kargo bedava
güvenli alışveriş
vade farksız taksit
ücretsiz iade
Açıklamalar
General ordering data
Version Power supply, switch-mode power supply unit, 24 V
Order No. 2466900000
Type PRO TOP1 960W 24V 40A
GTIN (EAN) 4050118481488
Qty. 1 pc(s).
Dimensions and weights
Depth 125 mm
Depth (inches) 4.921 inch
Height 130 mm
Height (inches) 5.118 inch
Width 124 mm
Width (inches) 4.882 inch
Net weight 3,245 g
Temperatures
Storage temperature -40 °C...85 °C
Operating temperature -25 °C...70 °C
Humidity at operating temperature 5...95 %, no condensation
Environmental Product Compliance
RoHS Compliance Status Compliant with exemption
RoHS Exemption (if applicable/known) 6c, 7a, 7cI
REACH SVHC Lead 7439-92-1
SCIP 6d8cdf22-8230-4af8-86c8-3558c716666d
Input
AC input voltage range 85…277 V AC
Connection system PUSH IN
Current consumption in relation to the input voltage
Voltage type AC
Input voltage 100 V
Input current 12 A
Voltage type DC
Input voltage 120 V
Input current 12 A
DC input voltage range 80 ... 410 V DC
Frequency range AC 45…65 Hz
Input fuse (internal) Yes
Inrush current max. 15 A
Nominal power consumption 1,021 VA
Rated input voltage 110...240 V AC / 120...340 V DC
Recommended back-up fuse 16 A, DI / 16 A, Char. B / 16 A, Char C
Surge protection Varistor
Output
Connection system PUSH IN
DCL - peak load reserve
Boost duration 5 s
Multiple of the rated current 150 %
Boost duration 15 ms
Multiple of the rated current 400 %
Mains failure bridge-over time > 20 ms @ 115V AC/ 230 VAC
Nominal output current for Unom 40 A @ 60 °C
Output power 960 W
Output voltage, max. 28.8 V
Output voltage, min. 22.5 V
Output voltage, note adjustable with potentiometer or comunication module
Parallel connection option yes, max 10
Protection against inverse voltage Yes
Ramp-up time ≤ 100 ms
Rated output voltage 24 V DC ± 1 %
Residual ripple, breaking spikes <50 mVss @ UNenn, Full Load
General data
AC failure bridging time @ Inom > 20 ms @ 230 V AC / > 20 ms @ 115 V AC
Conformal coating No
Degree of efficiency 94%
Derating > 60°C (2.5% / 1°C)
Earth leakage current, max. 3.5 mA
Housing version Metal, corrosion resistant
MTBF
According to Standard SN 29500
Operating time (hours), min. 1,000,000 h
Ambient temperature 25 °C
Input voltage 230 V
Output power 960 W
Duty cycle 100 %
According to Standard SN 29500
Operating time (hours), min. 597,000 h
Ambient temperature 40 °C
Input voltage 230 V
Output power 960 W
Duty cycle 100 %
Power factor (approx.) > 0.9
Power loss, idling 10 W
Power loss, nominal load 61.3 W
Protection degree IP20
Short-circuit protection Yes, internal
Start-up ≥ -40 °C
Surge voltage category III, II
EMC / shock / vibration
Interference immunity test acc. to EN 55032:2015, EN 55032:2012, EN 55024:2010/A1:2015, EN 55035:2017, EN 61000-3-2:2014, EN 61000-3-3:2013, EN 61000-6-1:2007, EN 61000-6-2:2005, EN 55024:2010, EN 61000-6-3:2007/A1:2011, EN 61000-6-4:2007/A1:2011
Noise emission in accordance with EN55032 Class B
Shock resistance IEC 60068-2-27 30 g in all directions
Vibration resistance IEC 60068-2-6 2.3 g (on DIN rail), 4 g (with direct mounting)
