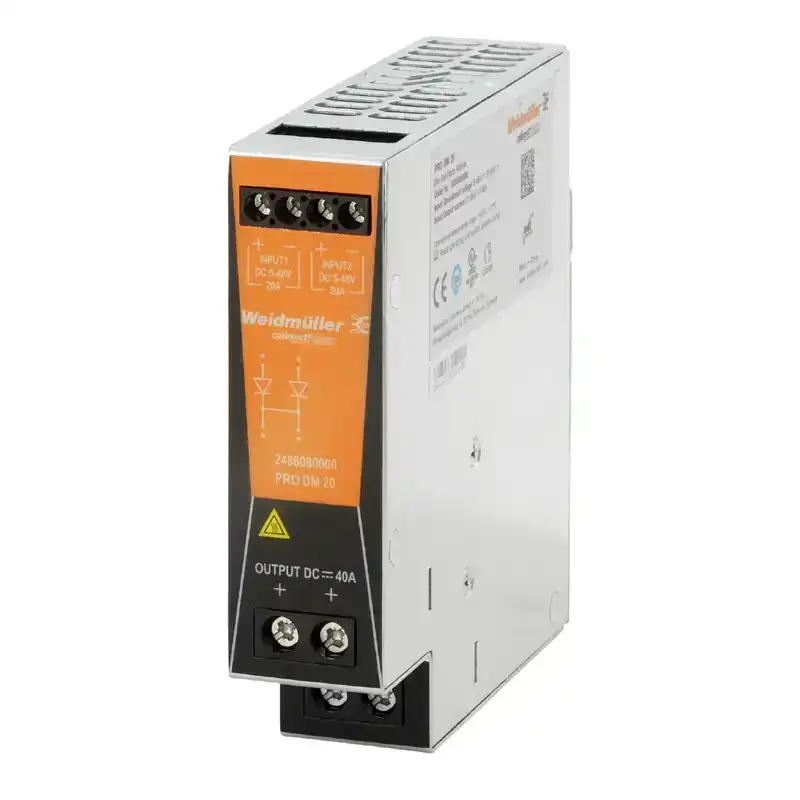

PRO DM 20 - 1

PRO DM 20

Ürün Kodu : 2486080000
%59
indirim
8.663,43 TL
3.552,00 ₺ / 81,59 € + KDV
3 ay içinde kargoda
kargo bedava
güvenli alışveriş
vade farksız taksit
ücretsiz iade
Açıklamalar
General ordering data
Version Diode module, 24 V DC
Order No. 2486080000
Type PRO DM 20
GTIN (EAN) 4050118496819
Qty. 1 pc(s).
Dimensions and weights
Depth 125 mm
Depth (inches) 4.921 inch
Height 125 mm
Height (inches) 4.921 inch
Width 32 mm
Width (inches) 1.26 inch
Net weight 552 g
Temperatures
Storage temperature -40 °C...85 °C
Operating temperature -40 °C...70 °C
Humidity 5-95% relative humidity, Tu = 40°C, without condensation
Environmental Product Compliance
RoHS Compliance Status Compliant with exemption
RoHS Exemption (if applicable/known) 7a, 7cI
REACH SVHC Lead 7439-92-1
SCIP cc374e6c-371c-484b-a36d-6c65c5030ae7
Input
Connection system Screw connection
DC input voltage range 0...60 V DC
Input current 2 × 24 A (-40 °C ~ +45 °C), 2 × 20 A (+45 °C ~ +60 °C), 2 × 15 A (+70 °C)
Input fuse (internal) No
Nominal power consumption 480 VA
Rated input voltage 24 V DC
Output
Connection system Screw connection
Continuous output current @ UNominal 1 × 48 A (-40 °C ~ +45 °C), 1 × 40 A (+45 °C ~ +60 °C), 1 × 30 A (+70 °C)
Output current, max. 40 A
Output power 932 W
Protection against inverse voltage Yes
Rated output voltage VINPUT-typ. 0.7 V
Residual ripple, breaking spikes Dependent on the power supplies used
General data
Degree of efficiency > 97% @ 24 V Input voltage
Derating > 60°C / 75% load @ 70°C
Housing version Metal, corrosion resistant
Humidity 5-95% relative humidity, Tu = 40°C, without condensation
MTBF
According to Standard SN 29500
Operating time (hours), min. 32,830,000 h
Ambient temperature 25 °C
Input voltage 24 V
Output power 480 W
Duty cycle 100 %
According to Standard SN 29500
Operating time (hours), min. 25,982,000 h
Ambient temperature 40 °C
Input voltage 24 V
Output power 480 W
Duty cycle 100 %
Mounting position, installation notice Horizontal on TS35 mounting rail. 50 mm of clearance at top & bottom for air circ. Can mount side by side with no space in between.
Protection degree IP20
Short-circuit protection No
Surge voltage category III
EMC / shock / vibration
Interference immunity test acc. to EN 55022, EN 55024, EN 61000-3-2,-3, EN 61000-4-2 (ESD)|EN 61000-4-3 and EN 61000-4-8 (fields)|EN 61000-4-4 (burst)|EN 61000-4-5 (surge)|EN 61000-4-6 (conducted)
Shock resistance IEC 60068-2-27 30 g in all directions
Vibration resistance IEC 60068-2-6 2.3 g (on DIN rail)
