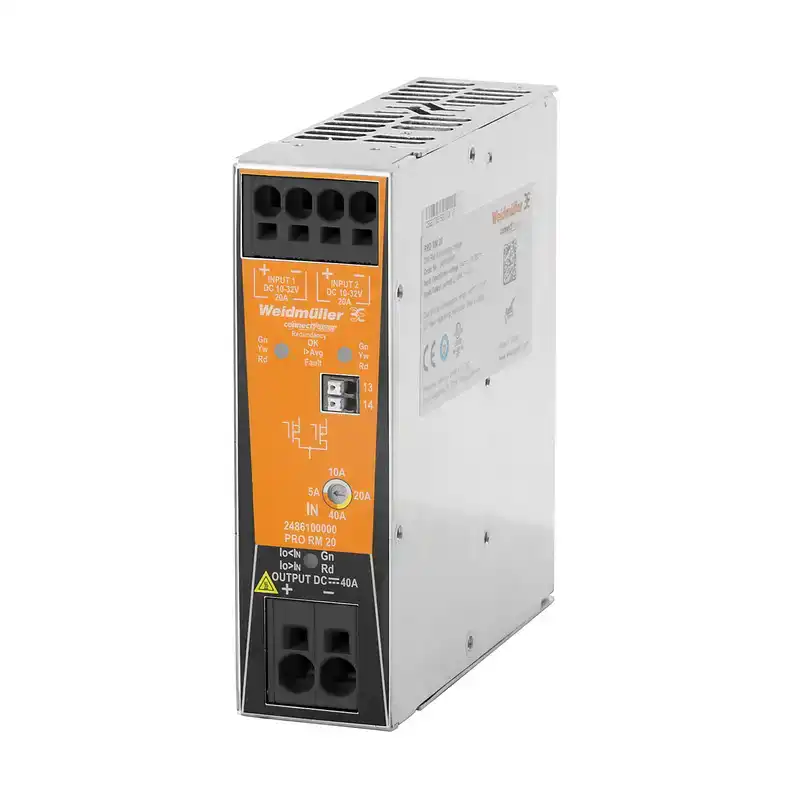

PRO RM 20 - 1

PRO RM 20

Ürün Kodu : 2486100000
%59
indirim
20.461,36 TL
8.389,16 ₺ / 192,70 € + KDV
3 ay içinde kargoda
kargo bedava
güvenli alışveriş
vade farksız taksit
ücretsiz iade
Açıklamalar
General ordering data
Version Redundancy module, 24 V DC
Order No. 2486100000
Type PRO RM 20
GTIN (EAN) 4050118496833
Qty. 1 pc(s).
Dimensions and weights
Depth 125 mm
Depth (inches) 4.921 inch
Height 130 mm
Height (inches) 5.118 inch
Width 38 mm
Width (inches) 1.496 inch
Net weight 47 g
Temperatures
Storage temperature -40 °C...85 °C
Operating temperature -40 °C...70 °C
Humidity 5-95% relative humidity, Tu = 40°C, without condensation
Environmental Product Compliance
RoHS Compliance Status Compliant with exemption
RoHS Exemption (if applicable/known) 7a, 7cI
REACH SVHC Lead 7439-92-1
SCIP cc374e6c-371c-484b-a36d-6c65c5030ae7
Input
Connection system PUSH IN
DC input voltage range 10 … 32 V DC
Input current 2 × 24 A (-40 °C ~ +45 °C), 2 × 20 A (+45 °C ~ +60 °C), 2 × 15 A (+70 °C)
Nominal power consumption 480 VA
Rated input voltage 24 V DC
Output
Connection system PUSH IN
Continuous output current @ UNominal 1 × 48 A (-40 °C ~ +45 °C), 1 × 40 A (+45 °C ~ +60 °C), 1 × 30 A (+70 °C)
Output current, max. 48 A
Output power 952 W
Output voltage, max. 32 V
Output voltage, min. 9.8 V
Rated output voltage VINPUT-typ. 0.2 V
General data
Conformal coating Yes
Degree of efficiency > 98%
Derating > 60°C / 75% @ 70°C
Humidity 5-95% relative humidity, Tu = 40°C, without condensation
MTBF
According to Standard SN 29500
Operating time (hours), min. 4,779,000 h
Ambient temperature 25 °C
Input voltage 24 V
Output power 480 W
Duty cycle 100 %
According to Standard SN 29500
Operating time (hours), min. 2,474,000 h
Ambient temperature 40 °C
Input voltage 24 V
Output power 480 W
Duty cycle 100 %
Mounting position, installation notice Horizontal on TS35 mounting rail. 50 mm of clearance at top & bottom for air circ. Can mount side by side with no space in between.
Protection degree IP20
Short-circuit protection No
Weight 558 g
EMC / shock / vibration
Shock resistance IEC 60068-2-27 30 g in all directions
Vibration resistance IEC 60068-2-6 2.3 g (on DIN rail)
