General ordering data
Version | Battery |
Order No. | 2789900000 |

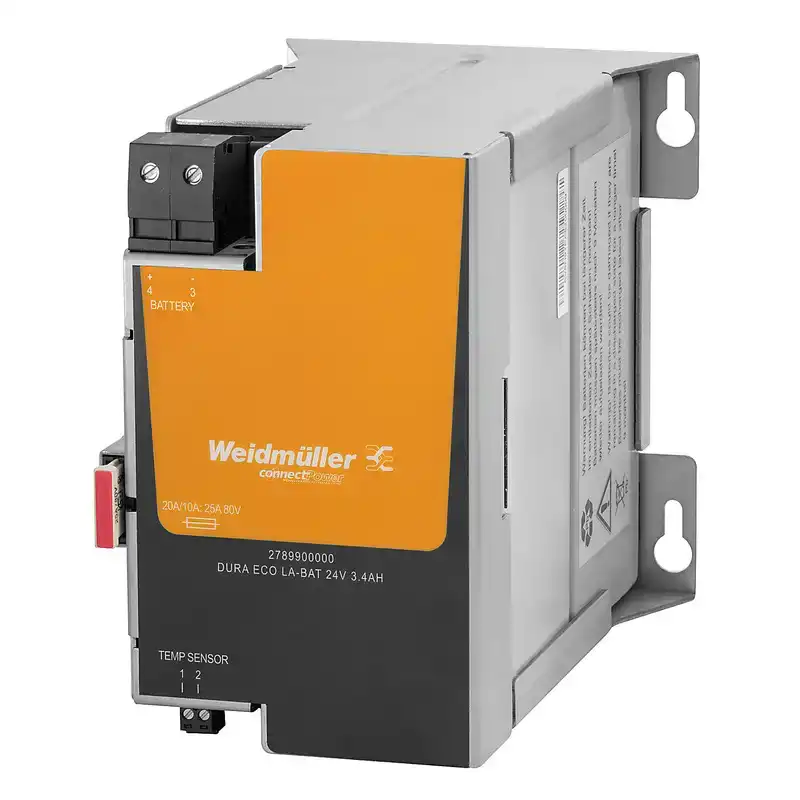

Type | DURA ECO LA-BAT 24V 3.4AH |
GTIN (EAN) | 4064675068655 |
Qty. | 1 pc(s). |
Dimensions and weights
Depth | 166 mm |
Depth (inches) | 6.535 inch |
Height | 141 mm |
Height (inches) | 5.551 inch |
Width | 108 mm |
Width (inches) | 4.252 inch |
Net weight | 3,900 g |
Temperatures
Storage temperature | -15 °C...50 °C |
Humidity | 5…95 % RH |
Environmental Product Compliance
RoHS Compliance Status | Not affected |
RoHS Exemption (if applicable/known) | 6c |
REACH SVHC | Lead 7439-92-1 |
SCIP | 30bf869c-8adc-4ed2-ad02-c1fec963e943 |
Operating interfaces and control inputs
Temperature probe | NTC 100 kΩ |
Input
Charging current, max. | 0.51 A |
Nominal capacity | 3.4 Ah |
Rated input voltage | 24 V DC |
Output
Buffer time depending on current | Current | 17 A | Buffer time | 3 min | Current | 13 A | Buffer time | 5 min | Current | 3.7 A | Buffer time | 30 min | | |
Output current, max. | 25 A |
Overload and short circuit protection | 25 A fuse |
Parallel connection option | Yes |
Temperature probe | NTC 100 kΩ |
General data
Ambient temperature | -15 °C...+50 °C |
Clip-in foot | metal |
Humidity | 5…95 % RH |
Life expectancy | 5.65 a |
Protection degree | IP20 |
Shock wall acc. to IEC 68227 | 30 g |
Vibration DIN rail/wall in accordance with IEC 68-2-6 | 0.7 / 0.7 g |
