Version	Power supply, switch-mode power supply unit, 5 V
Order No.	2838400000
Type	PRO BAS 30W 5V 6A
GTIN (EAN)	4064675444091
Qty.	1 pc(s).

Depth	85 mm
Depth (inches)	3.346 inch
Height	90 mm
Height (inches)	3.543 inch
Width	36 mm
Width (inches)	1.417 inch
Net weight	245 g

Storage temperature	-40 °C...85 °C
Operating temperature	-25 °C...70 °C
Humidity	5…95 % rel. humidity, no condensation

RoHS Compliance Status	Compliant with exemption
RoHS Exemption (if applicable/known)	6c, 7a, 7cI
REACH SVHC	Lead 7439-92-1, Lead monoxide 1317-36-8
SCIP	d62541f7-8058-4336-b693-7303c8b40800

AC input voltage range

85...264 V AC (derating at 100 V AC)

Connection system

Screw connection

Current consumption in relation to the input voltage

Voltage type	AC
Input voltage	230 V
Input current	0.34 A

Voltage type	AC
Input voltage	115 V
Input current	0.56 A

Voltage type	DC
Input voltage	120 V
Input current	0.28 A

DC input voltage range

110...370 V DC (derating at <120 V DC)

Frequency range AC

45…65 Hz

Input fuse (internal)

Yes

Inrush current

40 A @ 230 V AC, 25 °C

Rated input voltage

110...240 V AC / 120...340 V DC

Recommended back-up fuse

2 A / DI, safety fuse
6 A, Char. B, circuit breaker
2...4 A, Char. C circuit breaker

Wire connection method

Screw connection

Capacitive load

5.5mF

Connection system

Screw connection

Continuous output current @ U_Nominal

6 A @ 55 °C, 3.75 A @ 70 °C

Mains failure bridge-over time

Mains failure bridge-over time, min.	20 ms
Input voltage type	AC
Input voltage	120 V
Output current	6 A
Output voltage	5 V

Mains failure bridge-over time, min.	40 ms
Input voltage type	AC
Input voltage	230 V
Output current	6 A
Output voltage	5 V

Nominal output current for U_nom

6 A @ 55 °C

Output power

30 W

Output voltage, max.

8 V

Output voltage, min.

3 V

Overload protection

Yes

Parallel connection option

yes, max. 3

Protection against inverse voltage

Yes

Rated output voltage

5 V DC

Residual ripple, breaking spikes

≤ 50 mVpp @ full load

Wire connection method

Screw connection

AC failure bridging time @ I_nom

> 80 ms @ 230 V AC / > 20 ms @ 115 V AC

Degree of efficiency

87% @ 230 V AC

Earth leakage current, max.

3.5 mA

Housing version

Plastic, protective insulation

Humidity

5…95 % rel. humidity, no condensation

MTBF

According to Standard	SN 29500
Operating time (hours), min.	1,895,000 h
Ambient temperature	40 °C
Input voltage	230 V
Output power	30 W
Duty cycle	100 %

Mounting position, installation notice

Horizontal on TS35 mounting rail. 50 mm of clearance at top & bottom for air circ. Can mount side by side with no space in between.

Power factor (approx.)

0.45 @ 120 V AC, 0.45 @ 230 V AC

Power loss, idling

0.5 W

Power loss, nominal load

3.9 W

Protection against over-heating

Yes

Protection degree

IP20

Short-circuit protection

Yes

Start-up

≥ -40 °C

Status indication

Green LED

Noise emission in accordance with EN55032	Class B
Shock resistance IEC 60068-2-27	30 g in all directions
Vibration resistance IEC 60068-2-6	0.7 g according to EN 50178

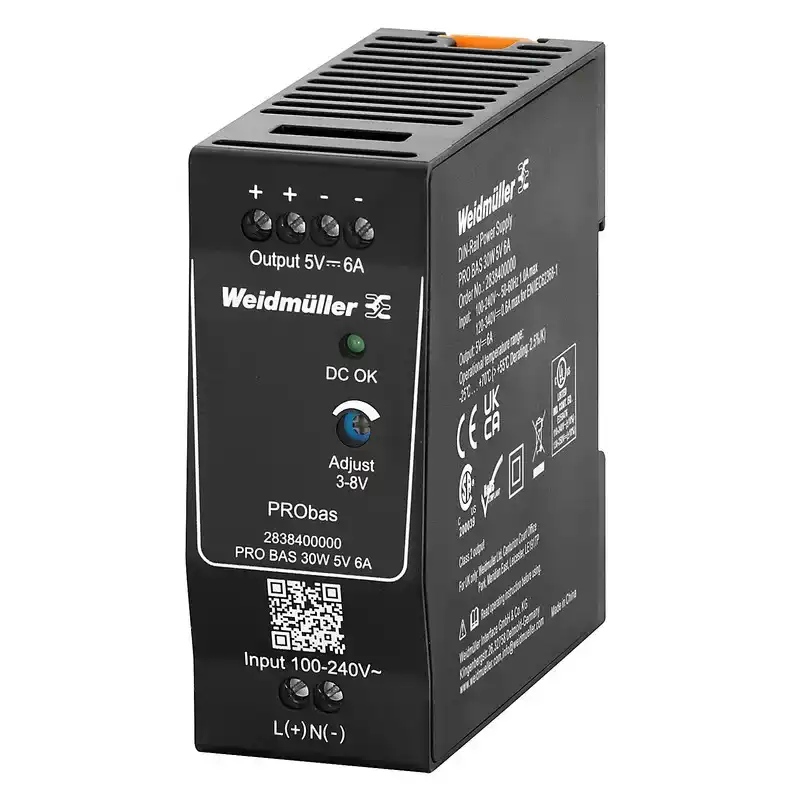

PRO BAS 30W 5V 6A
