General ordering data

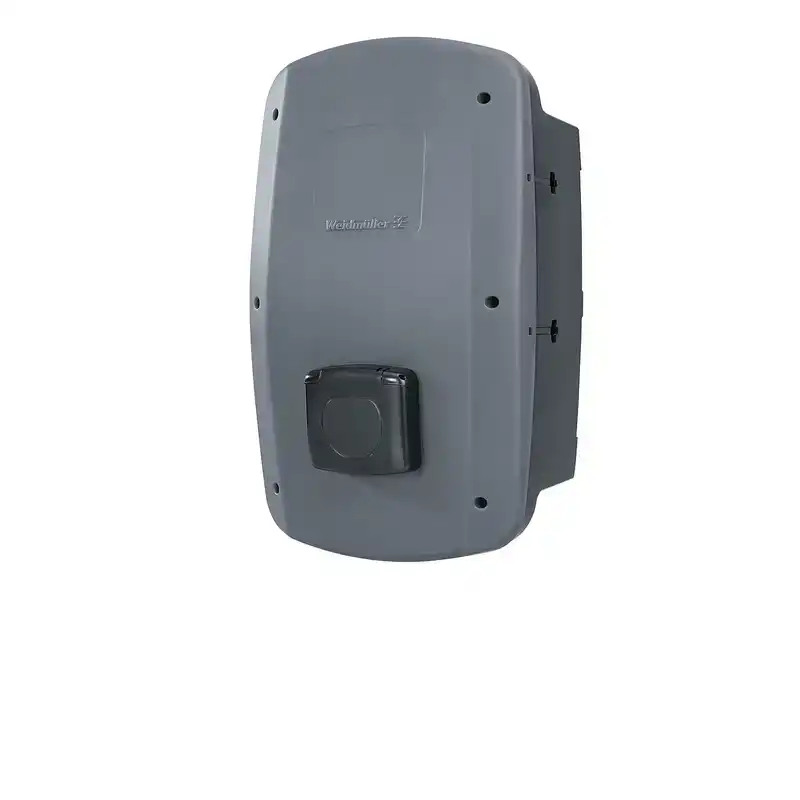

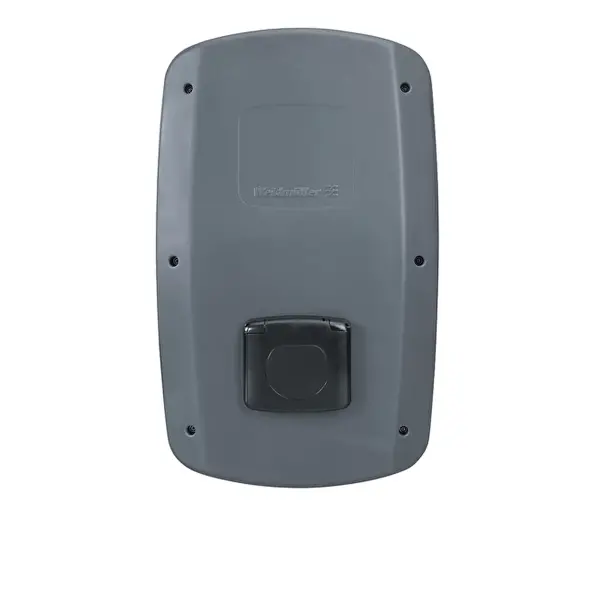

| Version | Wallbox, max. charging capacity of 22 kW @ 3-phase (400 V) grid connection, max. current 32 A, Type 2 socket outlet, Mobile App |
| Order No. | 2863080000 |
| Type | CH-W-S-A22-S-E |
| GTIN (EAN) | 4064675595519 |
| Qty. | 1 pc(s). |
Dimensions and weights
| Depth | 167 mm |
| Depth (inches) | 6.575 inch |
| Height | 433 mm |
| Height (inches) | 17.047 inch |
| Width | 268 mm |
| Width (inches) | 10.551 inch |
| Net weight | 3,600 g |
Temperatures
| Storage temperature | -40 °C...70 °C |
| Operating temperature | -30 °C...50 °C |
| Humidity | 5 - 95% rel. humidity |
Environmental Product Compliance
| RoHS Compliance Status | Compliant with exemption |
| RoHS Exemption (if applicable/known) | 7a, 7cI |
| REACH SVHC | Lead 7439-92-1, Potassium perfluorobutane sulfonate 29420-49-3 |
| SCIP | d677010f-3c13-4196-b022-f62e8f2ef6a2 |
System requirements
| Connection system | Type 2 socket outlet |
| Type of communication to vehicle | Control Pilot (CP), Proximity Pilot / Plug Present (PP) |
| Charge mode | Mode 3 |
| Protection class | I |
| Surge voltage category | III |
| Pollution severity | 3 |
Performance specification
| Performance specification | | Number of phases input | 3 | | Input voltage type | AC | | Frequency range | 50 Hz / 60 Hz | | Input voltage | 400 V | | Input current, max. | 32 A | | Charging power, max | 22 kW | | Adjustment accuracy | 1 A | | Charging current adjustable | Yes | | Charging current, min | 6 A | | |
| Performance specification | max. charging capacity of 22 kW @ 3-phase (400 V) grid connection, max. current 32 A |
Features
| Charging data exportable | No |
| Mobile App available | Yes |
| PV surplus charging possible | No |
| Protection degree | IP54 |
| Supported protocols | Modbus RTU, Modbus TCP |
| Type of status indicator | RGB LED |
| With communication interface | Yes |
| DC - residual current detection integrated | Yes |
| DC - residual current | 6 mA |
| Type of residual current detection to be provided by the installation | RCD Type A |
| Welding detection | Yes |
| User authentification | Yes |
| User authentification type | Mobile App |
| Failure shutdown | Yes |
| Failure shutdown method | All-pole |
| Energy measurement integrated | No |
| Load management integrated | No |
| Charge status display integrated | Yes |
| Communication integrated | Yes |
Material data
| Max. relative humidity during storage | 95 % |
| Operating temperature, max. | 50 °C |
| Operating temperature, min. | -30 °C |
| Storage temperature, max. | 70 °C |
| Storage temperature, min. | -40 °C |
