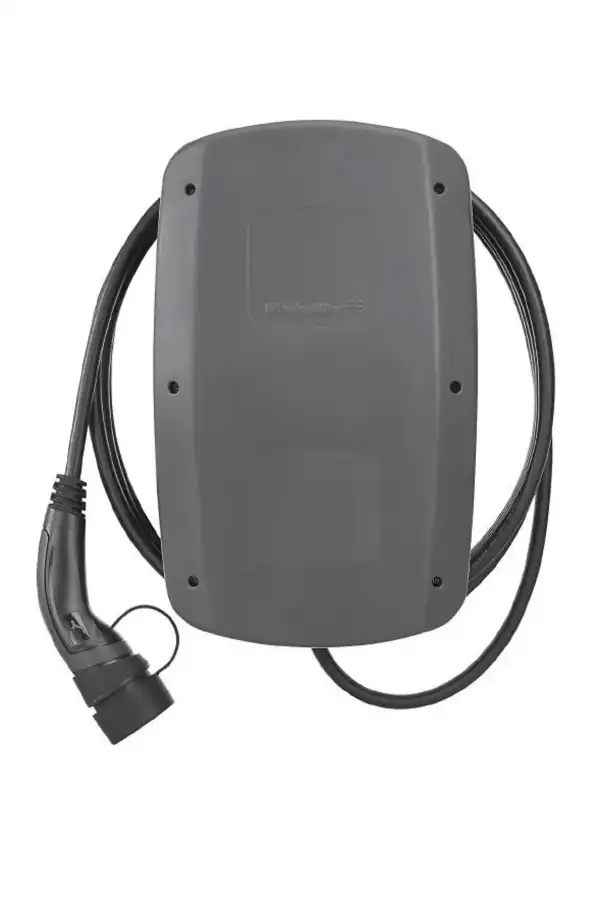

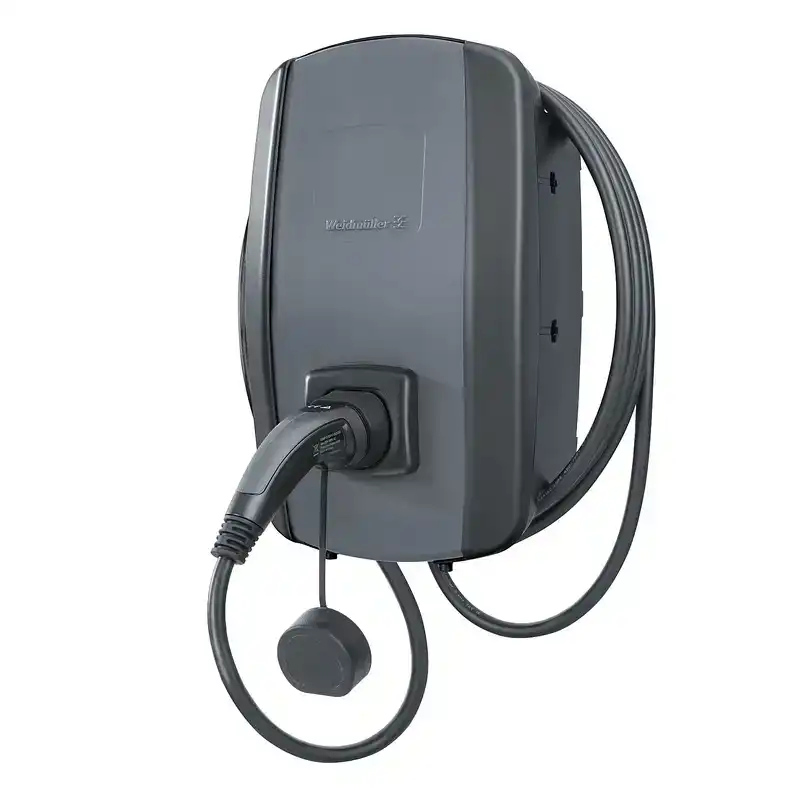

Wallbox, max. charging capacity of 22 kW @ 3-phase (400 V) grid connection, max. current 32 A, With attached 5 m cable and type 2 plug, Mobile App, RFID/NFC
Order No.
2875250000
Type
CH-W-S-A22-P-V
GTIN (EAN)
4064675650812
Qty.
1 pc(s).
Dimensions and weights
Depth
149 mm
Depth (inches)
5.866 inch
Height
439 mm
Height (inches)
17.283 inch
Width
273 mm
Width (inches)
10.748 inch
Net weight
6,808 g
Temperatures
Storage temperature
-40 °C...70 °C
Operating temperature
-30 °C...50 °C
Humidity
5 - 95% rel. humidity
Environmental Product Compliance
RoHS Compliance Status
Compliant with exemption
RoHS Exemption (if applicable/known)
6c, 7a, 7cI
REACH SVHC
Lead 7439-92-1, Potassium perfluorobutane sulfonate 29420-49-3
SCIP
d677010f-3c13-4196-b022-f62e8f2ef6a2
System requirements
Connection system
With attached 5 m cable and type 2 plug
Type of communication to vehicle
Control Pilot (CP), Proximity Pilot / Plug Present (PP)
Charge mode
Mode 3
Protection class
I
Surge voltage category
III
Pollution severity
3
Performance specification
Performance specification
max. charging capacity of 22 kW @ 3-phase (400 V) grid connection, max. current 32 A
Performance specification
Number of phases input
3
Input voltage type
AC
Frequency range
50 Hz / 60 Hz
Input voltage
400 V
Input current, max.
32 A
Charging power, max
22 kW
Adjustment accuracy
1 A
Charging current adjustable
Yes
Charging current, min
6 A
Features
Charging data exportable
Yes
Mobile App available
Yes
PV surplus charging possible
Yes
Protection degree
IP54
Supported protocols
Modbus RTU, Modbus TCP, OCPP 1.6 (J)
Type of status indicator
RGB LED
With communication interface
Yes
DC - residual current detection integrated
Yes
DC - residual current
6 mA
Type of residual current detection to be provided by the installation
