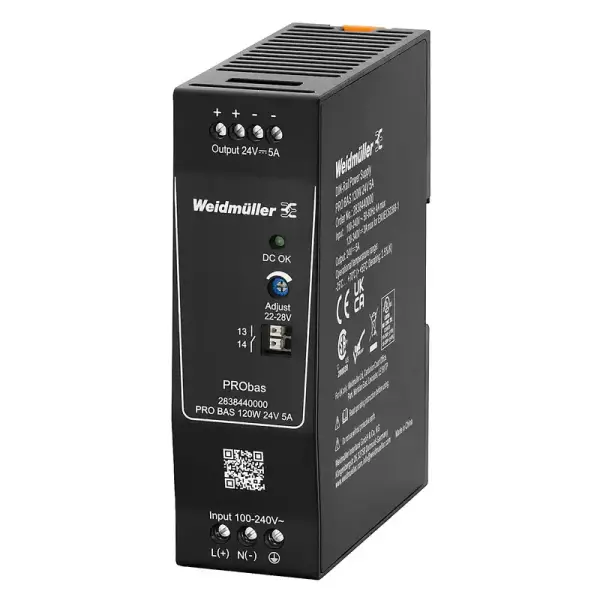

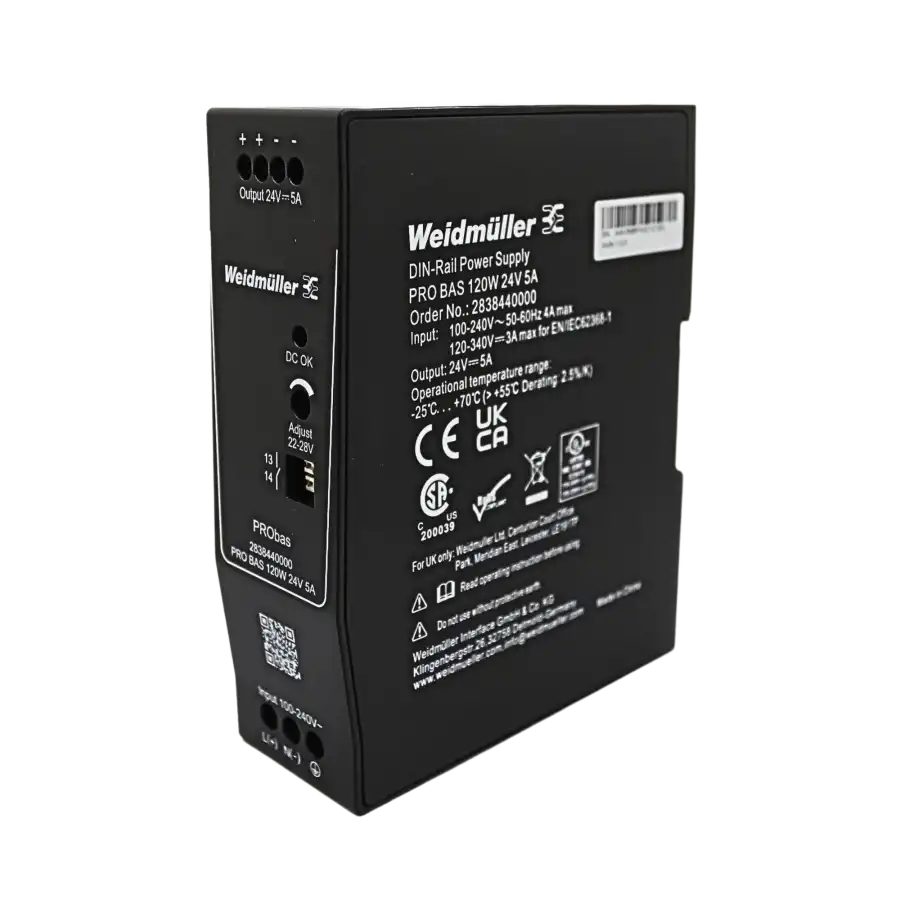

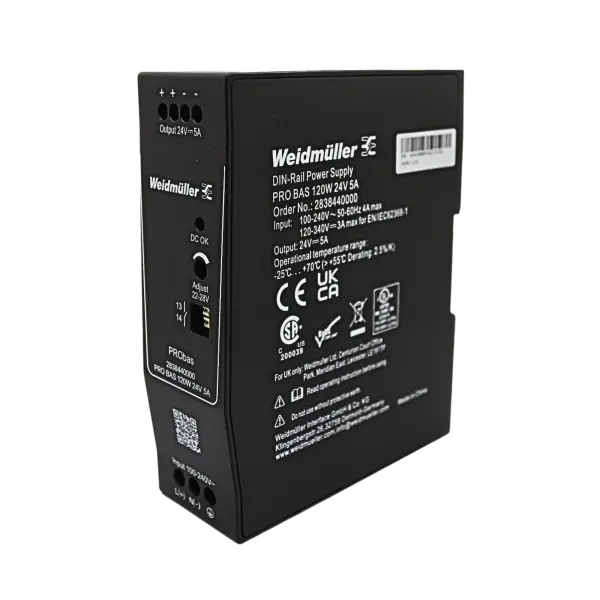

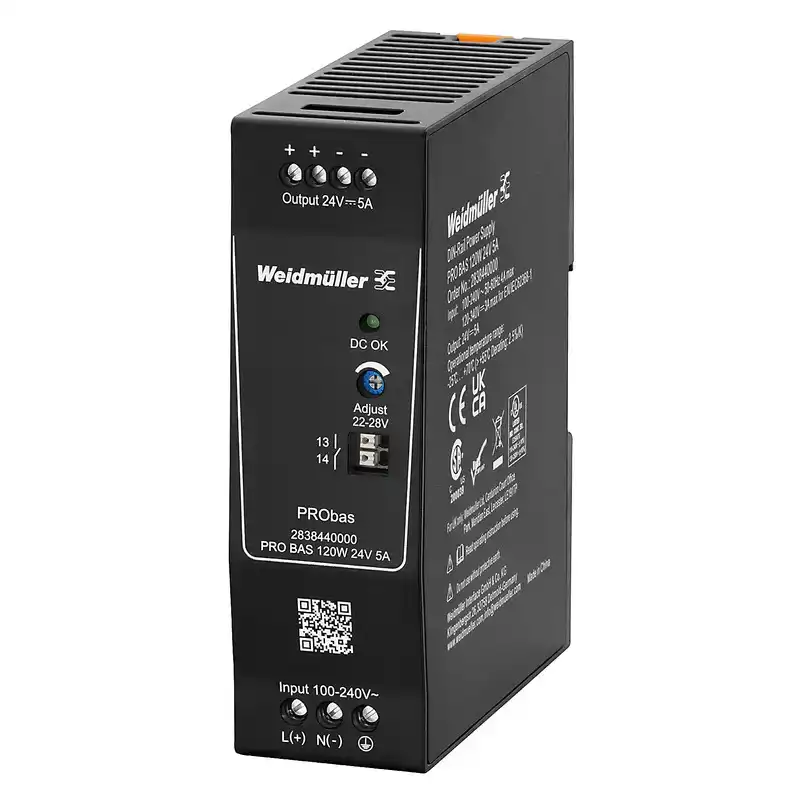

PRO BAS 120W 24V 5A

Ürün Kodu : 2838440000

Whatsapp İle Sipariş Ver

Ürün Açıklaması

Ürün Yorumları

Açıklamalar

General ordering data

Version	Power supply, switch-mode power supply unit, 24 V
Order No.	2838440000
Type	PRO BAS 120W 24V 5A
GTIN (EAN)	4064675444138
Qty.	1 pc(s).

Dimensions and weights

Depth	100 mm
Depth (inches)	3.937 inch
Height	130 mm
Height (inches)	5.118 inch
Width	40 mm
Width (inches)	1.575 inch
Net weight	490 g

Temperatures

Storage temperature	-40 °C...85 °C
Operating temperature	-25 °C...70 °C
Humidity	5…95 % rel. humidity, no condensation

Environmental Product Compliance

RoHS Compliance Status	Compliant with exemption
RoHS Exemption (if applicable/known)	6c, 7a, 7cI
REACH SVHC	Lead 7439-92-1, Lead monoxide 1317-36-8
SCIP	d62541f7-8058-4336-b693-7303c8b40800

Input

AC input voltage range

85...264 V AC (derating at 100 V AC)

Connection system

Screw connection

Current consumption in relation to the input voltage

Voltage type	AC
Input voltage	230 V
Input current	1.13 A

Voltage type	AC
Input voltage	115 V
Input current	2.02 A

Voltage type	DC
Input voltage	120 V
Input current	1.11 A

DC input voltage range

110...370 V DC (derating at <120 V DC)

Frequency range AC

45…65 Hz

Input fuse (internal)

Yes

Inrush current

40 A @ 230 V AC, 25 °C

Rated input voltage

110...240 V AC / 120...340 V DC

Recommended back-up fuse

4 A / DI, safety fuse, 6 A, Char. B, circuit breaker, 2...4 A, Char. C circuit breaker

Wire connection method

Screw connection

Output

Capacitive load

5.5mF

Connection system

Screw connection

Continuous output current @ U_Nominal

5 A @ 55 °C, 3.125 A @ 70°C

Mains failure bridge-over time

Mains failure bridge-over time, min.	20 ms
Input voltage type	AC
Input voltage	120 V
Output current	5 A
Output voltage	24 V

Mains failure bridge-over time, min.	40 ms
Input voltage type	AC
Input voltage	230 V
Output current	5 A
Output voltage	24 V

Nominal output current for U_nom

5 A @ 55 °C

Output power

120 W

Output voltage, max.

28 V

Output voltage, min.

22 V

Overload protection

Yes

Parallel connection option

yes, max. 3

Protection against inverse voltage

Yes

Rated output voltage

24 V DC

Residual ripple, breaking spikes

≤ 50 mVpp @ full load

Wire connection method

Screw connection

General data

AC failure bridging time @ I_nom

> 80 ms @ 230 V AC / > 20 ms @ 115 V AC

Degree of efficiency

90% @ 230 V AC

Earth leakage current, max.

3.5 mA

Housing version

Plastic, protective insulation

Humidity

5…95 % rel. humidity, no condensation

MTBF

According to Standard	SN 29500
Operating time (hours), min.	814,200 h
Ambient temperature	40 °C
Input voltage	230 V
Output power	120 W
Duty cycle	100 %

Mounting position, installation notice

Horizontal on TS35 mounting rail. 50 mm of clearance at top & bottom for air circ. Can mount side by side with no space in between.

Power factor (approx.)

0.5 @ 120 V AC, 0.51 @ 230 V AC

Power loss, idling

1.5 W

Power loss, nominal load

14.5 W

Protection against over-heating

Yes

Protection degree

IP20

Short-circuit protection

Yes

Start-up

≥ -40 °C

Status indication

Green LED

EMC / shock / vibration

Noise emission in accordance with EN55032	Class B
Shock resistance IEC 60068-2-27	30 g in all directions
Vibration resistance IEC 60068-2-6	0.7 g according to EN 50178
