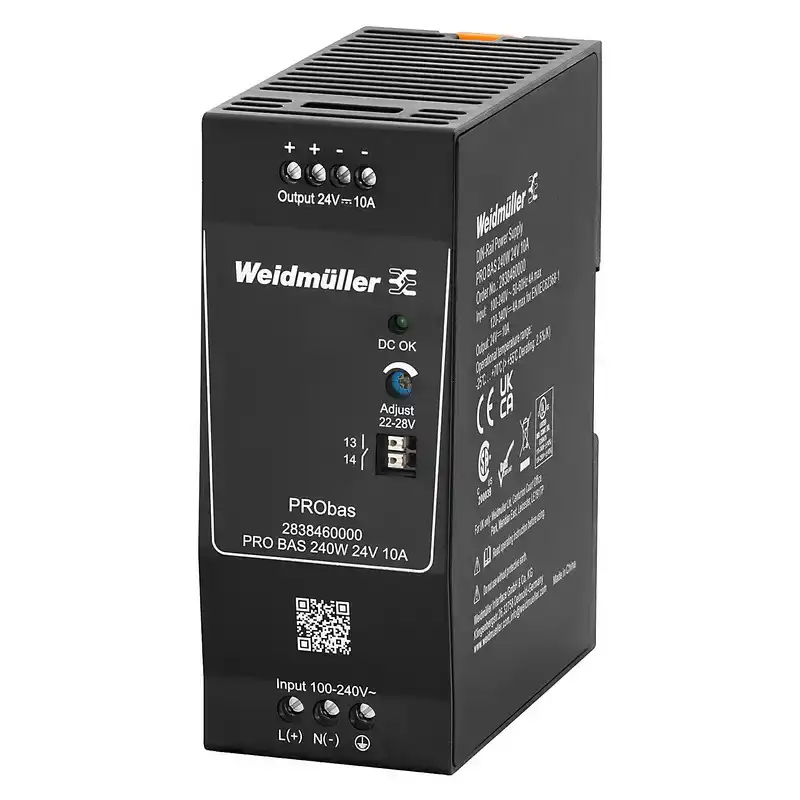

PRO BAS 240W 24V 10A - 1

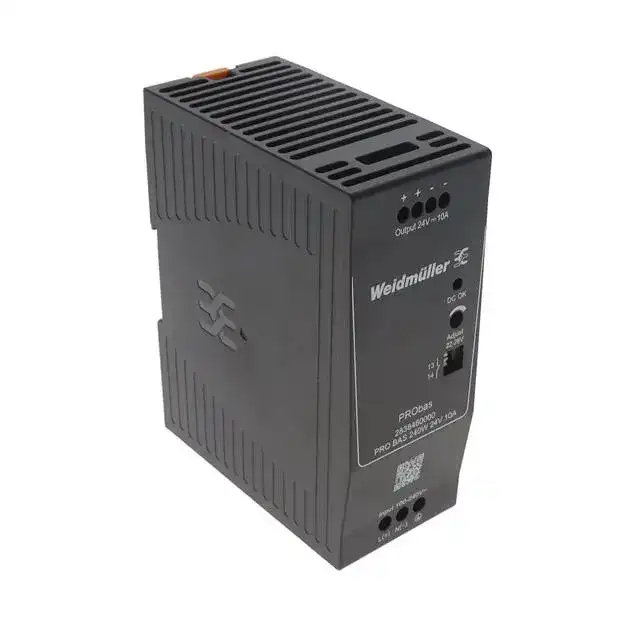

PRO BAS 240W 24V 10A - 2
Ürün Açıklaması
Ürün Yorumları
Açıklamalar
General ordering data
VersionPower supply, switch-mode power supply unit, 24 V
Order No.2838460000
TypePRO BAS 240W 24V 10A
GTIN (EAN)4064675444152
Qty.1 pc(s).
Dimensions and weights
Depth100 mm
Depth (inches)3.937 inch
Height130 mm
Height (inches)5.118 inch
Width52 mm
Width (inches)2.047 inch
Net weight693 g
Temperatures
Storage temperature-40 °C...85 °C
Operating temperature-25 °C...70 °C
Humidity5…95 % rel. humidity, no condensation
Environmental Product Compliance
RoHS Compliance StatusCompliant with exemption
RoHS Exemption (if applicable/known)6c, 7a, 7cI
REACH SVHCLead 7439-92-1, Lead monoxide 1317-36-8
SCIPd62541f7-8058-4336-b693-7303c8b40800
Input
AC input voltage range85...264 V AC (derating at 100 V AC)
Connection systemScrew connection
Current consumption in relation to the input voltage
Voltage typeAC
Input voltage230 V
Input current1.13 A
Voltage typeAC
Input voltage115 V
Input current2.29 A
Voltage typeDC
Input voltage120 V
Input current2.3 A
DC input voltage range110...370 V DC (derating at <120 V DC)
Frequency range AC45…65 Hz
Input fuse (internal)Yes
Inrush current20 A @ 230 V AC, 25 °C
Rated input voltage110...240 V AC / 120...340 V DC
Recommended back-up fuse4 A / DI, safety fuse, 6 A, Char. B, circuit breaker, 3...5 A, Char. C circuit breaker
Wire connection methodScrew connection
Output
Capacitive load5.5mF
Connection systemScrew connection
Continuous output current @ UNominal10 A @ 55 °C, 6.25 A @ 70°C
Mains failure bridge-over time
Mains failure bridge-over time, min.20 ms
Input voltage typeAC
Input voltage120 V
Output current10 A
Output voltage24 V
Mains failure bridge-over time, min.20 ms
Input voltage typeAC
Input voltage230 V
Output current10 A
Output voltage24 V
Nominal output current for Unom10 A @ 55 °C
Output power240 W
Output voltage, max.28 V
Output voltage, min.22 V
Overload protectionYes
Parallel connection optionyes, max. 3
Protection against inverse voltageYes
Rated output voltage24 V DC
Residual ripple, breaking spikes≤ 100 mVpp @ full Load
Wire connection methodScrew connection
General data
AC failure bridging time @ Inom> 80 ms @ 230 V AC / > 20 ms @ 115 V AC
Degree of efficiency94% @ 230 V AC
Earth leakage current, max.3.5 mA
Housing versionPlastic, protective insulation
Humidity5…95 % rel. humidity, no condensation
MTBF
According to StandardSN 29500
Operating time (hours), min.987,300 h
Ambient temperature40 °C
Input voltage230 V
Output power240 W
Duty cycle100 %
Mounting position, installation noticeHorizontal on TS35 mounting rail. 50 mm of clearance at top & bottom for air circ. Can mount side by side with no space in between.
Power factor (approx.)0.95 @ 230 V AC, nominal load
Power loss, idling2 W
Power loss, nominal load19.5 W
Protection against over-heatingYes
Protection degreeIP20
Short-circuit protectionYes
Start-up≥ -40 °C
Status indicationGreen LED
EMC / shock / vibration
Noise emission in accordance with EN55032Class B
Shock resistance IEC 60068-2-2730 g in all directions
Vibration resistance IEC 60068-2-60.7 g according to EN 50178
