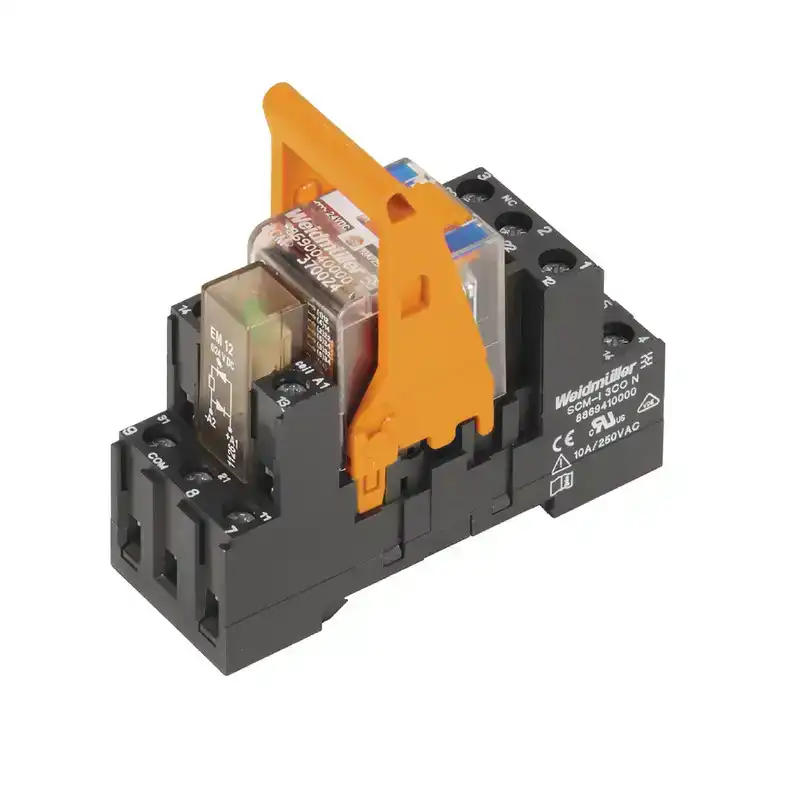

Name: RCMKIT-I 24VDC 3CO LD
Brand: Weidmüller
SKU: 8920980000
Price: 1210.57 TRY
Availability: OutOfStock

Version	RIDERSERIES RCM, Relay module, Number of contacts: 3, CO contact AgNi, Rated control voltage: 24 V DC, Continuous current: 10 A, Screw connection, Test button available: Yes
Order No.	8920980000
Type	RCMKIT-I 24VDC 3CO LD
GTIN (EAN)	4032248692231
Qty.	10 pc(s).

Storage temperature	-40 °C...70 °C
Operating temperature	-40 °C...70 °C
Humidity	40 °C / 93 % rel. humidity, no condensation

RoHS Compliance Status	Compliant without exemption
REACH SVHC	No SVHC above 0.1 wt%

Rated switching voltage	240 V AC
Continuous current	10 A
Max. switching frequency at rated load	0.1 Hz
Max. switching voltage, AC	250 V
Inrush current	20 A / 20 ms
AC switching capacity (resistive), max.	2500 VA
DC switching capacity (resistive), max.	240 W @ 24 V
Switch-on delay	≤ 15 ms
Switch-off delay	≤ 10 ms
Contact type	3 CO contact (AgNi)
Mechanical service life	AC coil 20 x 10⁶ switching cycles, DC coil 30 x 10⁶ switching cycles
Min. switching power	1 mA @ 24 V, 10 mA @ 12 V, 100 mA @ 5 V

Rail	TS 35
Test button available	Yes
Version of test button	Lockable test button, Momentary test button
Mechanical switch position indicator	Yes
Colour	black

Rated voltage	250 V
Pollution severity	2
Surge voltage category	III
Insulating material group	IIIa
Clearance and creepage distances for control side - load side	≥ 4 mm
Dielectric strength for control side - load side	2.5 kV_eff / 1 Min.
Dielectric strength of neighbouring contacts	2.5 kV_eff / 1 Min.
Dielectric strength of open contact	1.2 kV_eff /1 min.
Impulse withstand voltage	5 kV (1.2/50 µs)
Protection degree	IP20
