AM 25 Kablo Sıyırma Aleti - 1

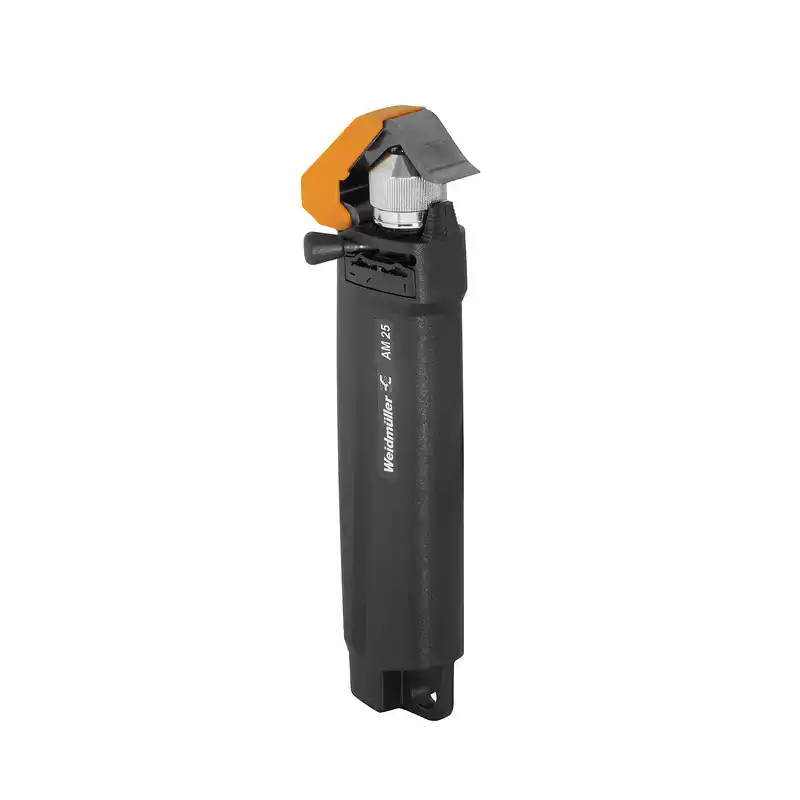

AM 25 Kablo Sıyırma Aleti

Ürün Kodu : 9001540000
%59
indirim
11.326,31 TL
4.643,79 ₺ / 104,55 € + KDV
3 ay içinde kargoda
kargo bedava
güvenli alışveriş
vade farksız taksit
ücretsiz iade
Açıklamalar
General ordering data
Version Tools, Sheathing strippers
Order No. 9001540000
Type AM 25
GTIN (EAN) 4008190138271
Qty. 1 pc(s).
Dimensions and weights
Depth 33 mm
Depth (inches) 1.299 inch
Height 157 mm
Height (inches) 6.181 inch
Width 47 mm
Width (inches) 1.85 inch
Net weight 120.67 g
Environmental Product Compliance
RoHS Compliance Status Not affected
REACH SVHC Lead 7439-92-1
SCIP cf06c250-ed1e-4a45-9c1b-c5c8cbf13bf0
Technical data
Description of article Sheathing strippers
Stripping tools
Cable type PVC round cable
Cut depth adjustable up to 4.5 mm
Max. conductor diameter 25 mm
Min. conductor diameter 6 mm
Downloads
Engineering Data
CADENAS eCATALOG CAX data
User Documentation
Catalogues Catalogues in PDF-format
Brochures
Classifications
ETIM 6.0 EC000163
ETIM 7.0 EC000163
ETIM 8.0 EC000163
ETIM 9.0 EC000163
ECLASS 9.0 21-04-90-90
ECLASS 9.1 21-04-37-06
ECLASS 10.0 21-04-90-90
ECLASS 11.0 21-04-90-90
ECLASS 12.0 21-04-90-90
ECLASS 13.0 21-04-90-90
ECLASS 14.0 21-04-90-90
Accessories

Online Catalogue | Workplace & Accessories | Tools | Stripping the insulation | Sheathing strippers and accessories | Sheathing strippers for PVC insulated round cable | Accessories / replacement parts:

Order No.: 9001530000
Type: ERSATZMESSER AM 25/35
Version:
Accessories, Spare cutting blade
