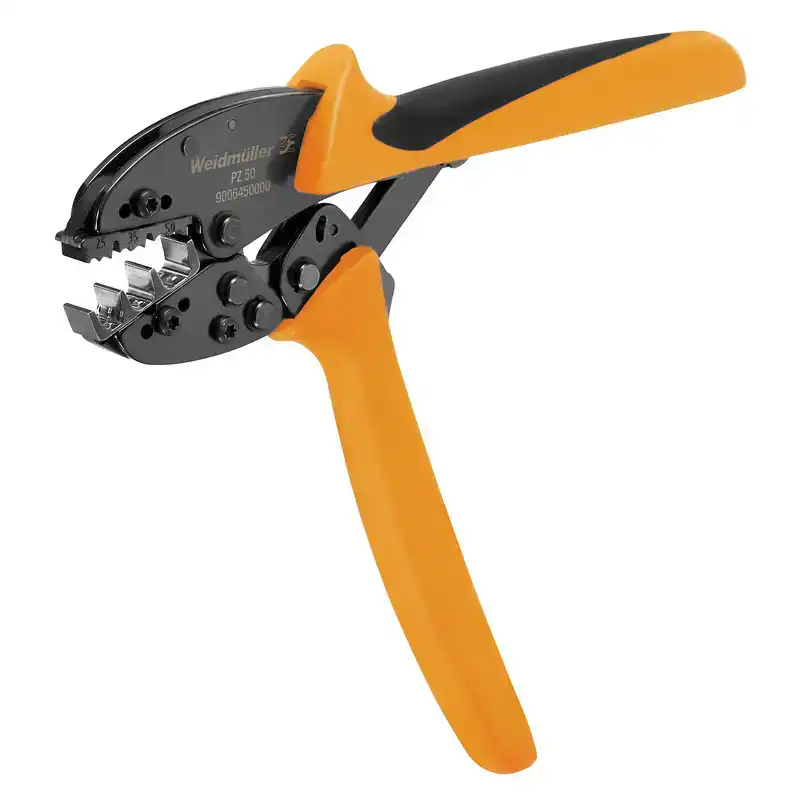

PZ 50 Yüksük Sıkma Pensesi - 1

PZ 50 Yüksük Sıkma Pensesi

Ürün Kodu : 9006450000
%59
indirim
55.767,75 TL
22.864,78 ₺ / 512,50 € + KDV
3 ay içinde kargoda
kargo bedava
güvenli alışveriş
vade farksız taksit
ücretsiz iade
Açıklamalar
General ordering data
Version Pressing tool, Crimping tool for wire-end ferrules, 25mm², 50mm², Indent crimp
Order No. 9006450000
Type PZ 50
GTIN (EAN) 4008190095796
Qty. 1 pc(s).
Dimensions and weights
Width 250 mm
Width (inches) 9.842 inch
Net weight 595.3 g
Environmental Product Compliance
RoHS Compliance Status Not affected
REACH SVHC Lead 7439-92-1
SCIP 2159813b-98fd-4068-b62a-bc89a046c012
Technical data
Description of article (1)Crimping tool
Version Mechanical, without interchangeable inserts
Description of contact
Conductor cross-section, max. AWG AWG 0
Conductor cross-section, min. AWG AWG 4
Crimping range, max. 50 mm²
Crimping range, min. 25 mm²
Type of contact Wire-end ferrules with/without plastic collars
tool data crimping
Crimping type/profile Indent crimp
Wire end ferrules cross-section, max. 50 mm²
Wire end ferrules cross-section, min. 25 mm²
Downloads
Engineering Data
CADENAS eCATALOG CAX data
User Documentation
Catalogues Catalogues in PDF-format
Brochures
Classifications
ETIM 6.0 EC000168
ETIM 7.0 EC000168
ETIM 8.0 EC000168
ETIM 9.0 EC000168
ECLASS 9.0 21-04-38-11
ECLASS 9.1 21-04-38-11
ECLASS 10.0 21-04-38-11
ECLASS 11.0 21-04-38-11
ECLASS 12.0 21-04-38-11
ECLASS 13.0 21-04-38-11
ECLASS 14.0 21-04-38-11
