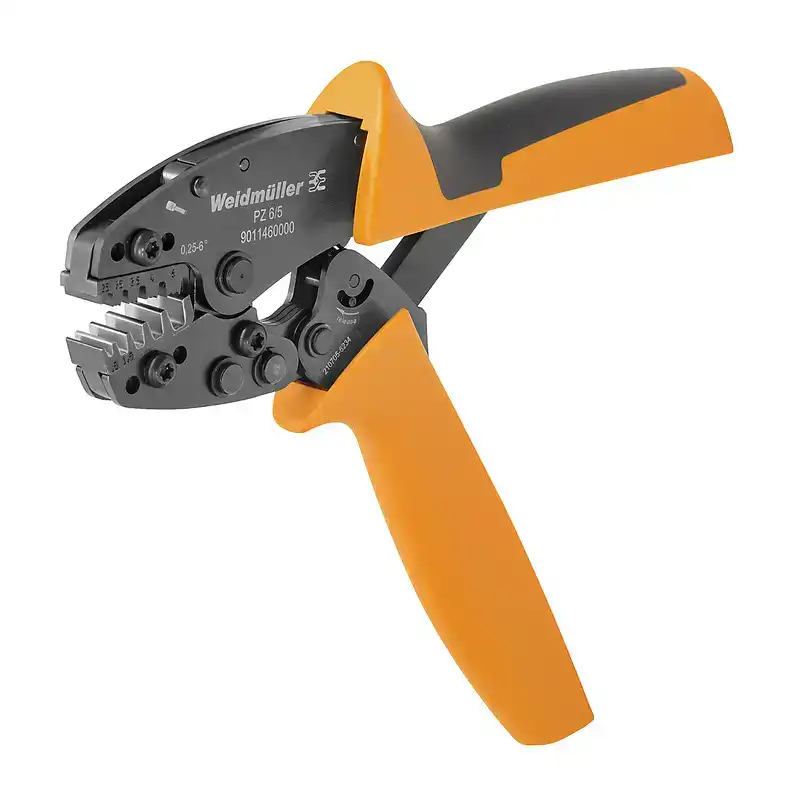

PZ 6/5 Yüksük Sıkma Pensesi - 1

PZ 6/5 Yüksük Sıkma Pensesi

Ürün Kodu : 9011460000
%59
indirim
34.089,13 TL
13.976,54 ₺ / 323,90 € + KDV
3 ay içinde kargoda
kargo bedava
güvenli alışveriş
vade farksız taksit
ücretsiz iade
Açıklamalar
General ordering data
Version Pressing tool, Crimping tool for wire-end ferrules, 0.25mm², 6mm², Trapezoidal indentation crimp
Order No. 9011460000
Type PZ 6/5
GTIN (EAN) 4008190165352
Qty. 1 pc(s).
Dimensions and weights
Width 200 mm
Width (inches) 7.874 inch
Net weight 433 g
Environmental Product Compliance
RoHS Compliance Status Not affected
REACH SVHC Lead 7439-92-1
SCIP 2159813b-98fd-4068-b62a-bc89a046c012
Technical data
Description of article Crimping tool for wire end ferrules with/without plastic collar, 0.25 to 6 mm²
Version Mechanical, without interchangeable inserts
Description of contact
Conductor cross-section, max. AWG AWG 10
Conductor cross-section, min. AWG AWG 24
Crimping range, max. 6 mm²
Crimping range, min. 0.25 mm²
Type of contact Wire-end ferrules with/without plastic collars
tool data crimping
Crimping profile 5 6 mm²
Crimping type/profile Trapezoidal indentation crimp
Wire end ferrules cross-section, max. 6 mm²
Wire end ferrules cross-section, min. 0.25 mm²
Downloads
Engineering Data
CADENAS eCATALOG CAX data
User Documentation
Catalogues Catalogues in PDF-format
Brochures
Classifications
ETIM 6.0 EC000168
ETIM 7.0 EC000168
ETIM 8.0 EC000168
ETIM 9.0 EC000168
ECLASS 9.0 21-04-38-11
ECLASS 9.1 21-04-38-11
ECLASS 10.0 21-04-38-11
ECLASS 11.0 21-04-38-11
ECLASS 12.0 21-04-38-11
ECLASS 13.0 21-04-38-11
ECLASS 14.0 21-04-38-11
